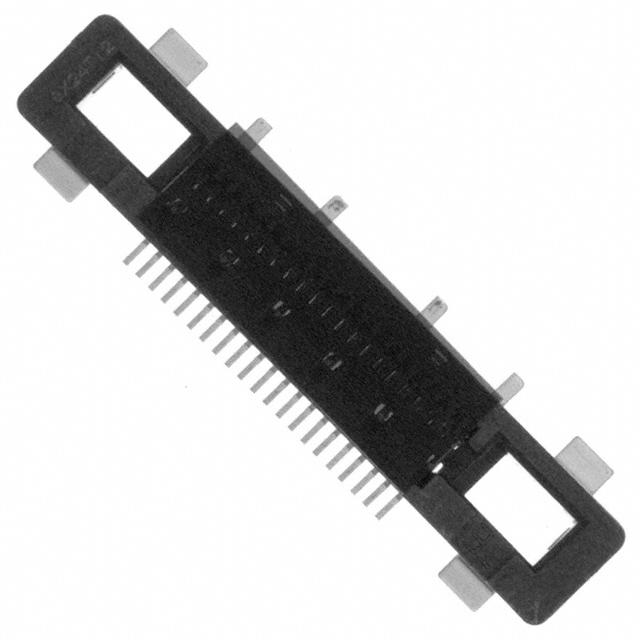

FI-RE21S-VF-R1300
ActiveJAE Electronics
CONN RCPT 21POS 0.02 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
FI-RE21S-VF-R1300
ActiveJAE Electronics
CONN RCPT 21POS 0.02 GOLD SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FI-RE21S-VF-R1300 |
|---|---|
| Applications | Medical, General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Female Blade Socket |
| Current Rating (Amps) | 0.8 A |
| Fastening Type | Latch Holder |
| Features | Solder Retention, Shielded |
| Insulation Height | 4.65 mm |
| Insulation Height | 0.183 in |
| Insulation Material | Plastic |
| Mated Stacking Heights | 16.1 mm, 10.1 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 21 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.02 in |
| Pitch - Mating | 0.5 mm |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.89 | |
| 10 | $ 2.21 | |||
| 100 | $ 1.70 | |||
| 500 | $ 1.43 | |||
| Digi-Reel® | 1 | $ 2.89 | ||
| 10 | $ 2.21 | |||
| 100 | $ 1.70 | |||
| 500 | $ 1.43 | |||
| Tape & Reel (TR) | 1300 | $ 1.30 | ||
| 2600 | $ 1.22 | |||
| 3900 | $ 1.17 | |||
| 6500 | $ 1.11 | |||
Description
General part information
FI-RE21S Series
21 Position Receptacle Connector 0.020" (0.50mm) Surface Mount Gold
