HF539/16

Active

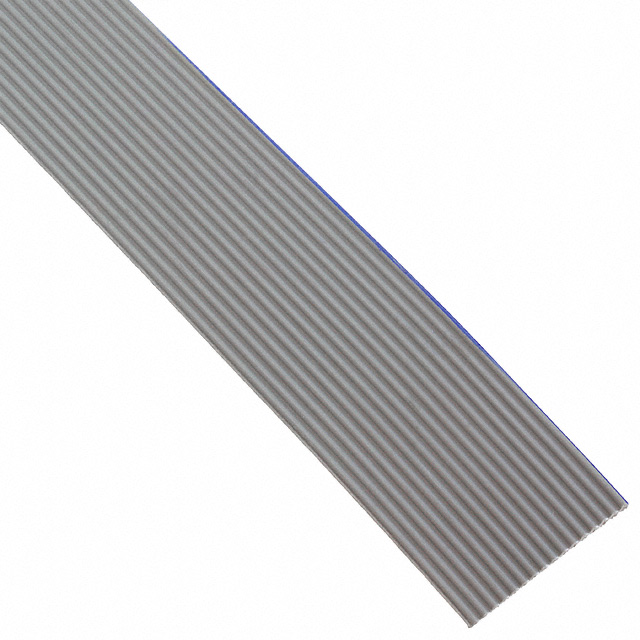

RIBBON CABLE, UNSHIELDED, 16 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCables & Accessories Selection Guide Datasheet

HF539/16

Active

RIBBON CABLE, UNSHIELDED, 16 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsCables & Accessories Selection Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.72
		1	$ 5.43
		5	$ 17.13
		5	$ 4.51
		10	$ 4.16
		10	$ 15.75
		25	$ 14.11
		25	$ 3.74
		50	$ 12.97
		50	$ 3.44
		100	$ 11.90
		100	$ 3.17
Newark	Spool of 100	1	$ 241.82

Description

General part information

HF539 Series

Flat Ribbon Cable Gray 16 Conductors 0.050" (1.27mm) Flat Cable 1.00' (304.80mm)

Documents

Technical documentation and resources

Cables & Accessories Selection Guide

Datasheet

Specification	HF539/16	HF539 Series

Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19 Strands	19 Strands
Conductor Strand [custom]	40 AWG	40 AWG
Current Rating (Amps)	1 A	1 A
Features	Zippable	Zippable
First Conductor Mark	Blue	Blue
Insulation Resistance	10 GOhm	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Gray	Gray
Length	1 ft	1 - 50 ft
Length	304.8 mm	7.62 - 304.8 m
Length	-	10 - 100 ft
Length	-	3.05 - 30.48 m
Number of Conductors	16	10 - 64
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 21682	UL Style 21682
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Ribbon Width	-	1.3 - 2.5 "
Ribbon Width	-	1 - 63.5 mm
Ribbon Width	-	25.4 mm
Ribbon Width	-	0.7 in
Ribbon Width	-	17.78 mm
Ribbon Width [y]	20.32 mm	20.32 - 81.28 mm
Ribbon Width [y]	0.8 in	0.8 - 3.2 in
Shielding	Unshielded	Unshielded
Voltage	300 V	300 V
Wire Gauge	28 AWG	28 AWG

Part

Conductor Strand [custom]

Pitch [x]

Operating Temperature [Min]

Operating Temperature [Max]

Length

Length [x]

Conductor Material

Features

Insulation Resistance

Current Rating (Amps)

Wire Gauge

First Conductor Mark

Voltage

Ribbon Width [custom]

Ratings

Number of Conductors

Shielding

Jacket Color

Ribbon Thickness

Jacket (Insulation) Material

Cable Type

Ribbon Width [y]

Ribbon Width

Ribbon Width [x]

HF539/10

19 Strands

40 AWG

0.05 in

1.27 mm

-40 °C

105 ░C

7.62 m, 15.24 m, 304.8 mm

1 ft, 25 ft, 50 ft

100 ft

30.48 m

Copper, Tinned

Zippable

10 GOhm

1 A

28 AWG

Blue

300 V

0.5 "

12.7 mm

UL Style 21682

Unshielded

Gray

0.89 mm

0.035 in

Polyolefin (PO)

Flat Cable

HF539/30

19 Strands

40 AWG

0.05 in

1.27 mm

-40 °C

105 ░C

304.8 mm

1 ft

10 ft

3.05 m

Copper, Tinned

Zippable

10 GOhm

1 A

28 AWG

Blue

300 V

UL Style 21682

Unshielded

Gray

0.89 mm

0.035 in

Polyolefin (PO)

Flat Cable

38.1 mm

1.5 in

HF539/26

19 Strands

40 AWG

0.05 in

1.27 mm

-40 °C

105 ░C

15.24 m, 304.8 mm

1 ft, 50 ft

Copper, Tinned

Zippable

10 GOhm

1 A

28 AWG

Blue

300 V

UL Style 21682

Unshielded

Gray

0.89 mm

0.035 in

Polyolefin (PO)

Flat Cable

1.3 "

33.02 mm

HF539/50

19 Strands

40 AWG

0.05 in

1.27 mm

-40 °C

105 ░C

15.24 m

50 ft

10 ft

3.05 m

Copper, Tinned

Zippable

10 GOhm

1 A

28 AWG

Blue

300 V

UL Style 21682

Unshielded

Gray

0.89 mm

0.035 in

Polyolefin (PO)

Flat Cable

2.5 "

63.5 mm

HF539/20

19 Strands

40 AWG

0.05 in

1.27 mm

-40 °C

105 ░C

7.62 m, 15.24 m, 304.8 mm

1 ft, 25 ft, 50 ft

100 ft

30.48 m

Copper, Tinned

Zippable

10 GOhm

1 A

28 AWG

Blue

300 V

UL Style 21682

Unshielded

Gray

0.89 mm

0.035 in

Polyolefin (PO)

Flat Cable

1 in

25.4 mm

HF539/40

19 Strands

40 AWG

0.05 in

1.27 mm

-40 °C

105 ░C

304.8 mm

1 ft

Copper, Tinned

Zippable

10 GOhm

1 A

28 AWG

Blue

300 V

UL Style 21682

Unshielded

Gray

0.89 mm

0.035 in

Polyolefin (PO)

Flat Cable

50.8 mm

2 in

HF539/64

19 Strands

40 AWG

0.05 in

1.27 mm

-40 °C

105 ░C

7.62 m, 304.8 mm

1 ft, 25 ft

10 ft, 100 ft

3.05 m, 30.48 m

Copper, Tinned

Zippable

10 GOhm

1 A

28 AWG

Blue

300 V

UL Style 21682

Unshielded

Gray

0.89 mm

0.035 in

Polyolefin (PO)

Flat Cable

81.28 mm

3.2 in

HF539/16

19 Strands

40 AWG

0.05 in

1.27 mm

-40 °C

105 ░C

304.8 mm

1 ft

Copper, Tinned

Zippable

10 GOhm

1 A

28 AWG

Blue

300 V

UL Style 21682

Unshielded

Gray

0.89 mm

0.035 in

Polyolefin (PO)

Flat Cable

20.32 mm

0.8 in

HF539/14

19 Strands

40 AWG

0.05 in

1.27 mm

-40 °C

105 ░C

7.62 m, 15.24 m

25 ft, 50 ft

100 ft

30.48 m

Copper, Tinned

Zippable

10 GOhm

1 A

28 AWG

Blue

300 V

UL Style 21682

Unshielded

Gray

0.89 mm

0.035 in

Polyolefin (PO)

Flat Cable

0.7 in

17.78 mm

Part	Conductor Strand [custom]	Conductor Strand [custom]	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Length [x]	Length [x]	Conductor Material	Features	Insulation Resistance	Current Rating (Amps)	Wire Gauge	First Conductor Mark	Voltage	Ribbon Width [custom]	Ribbon Width [custom]	Ratings	Number of Conductors	Shielding	Jacket Color	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Cable Type	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width	Ribbon Width	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]
3M HF539/10	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	7.62 m, 15.24 m, 304.8 mm	1 ft, 25 ft, 50 ft	100 ft	30.48 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V	0.5 "	12.7 mm	UL Style 21682	10	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable
3M HF539/30	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	304.8 mm	1 ft	10 ft	3.05 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	30	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable	38.1 mm	1.5 in
3M HF539/26	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	15.24 m, 304.8 mm	1 ft, 50 ft			Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	26	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable			1.3 "	33.02 mm
3M HF539/50	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	15.24 m	50 ft	10 ft	3.05 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	50	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable			2.5 "	63.5 mm
3M HF539/20	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	7.62 m, 15.24 m, 304.8 mm	1 ft, 25 ft, 50 ft	100 ft	30.48 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	20	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable				1 in	25.4 mm
3M HF539/40	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	304.8 mm	1 ft			Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	40	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable	50.8 mm	2 in
3M HF539/64	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	7.62 m, 304.8 mm	1 ft, 25 ft	10 ft, 100 ft	3.05 m, 30.48 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	64	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable	81.28 mm	3.2 in
3M HF539/16	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	304.8 mm	1 ft			Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	16	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable	20.32 mm	0.8 in
3M HF539/14	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	7.62 m, 15.24 m	25 ft, 50 ft	100 ft	30.48 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	14	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable						0.7 in	17.78 mm
