HF539/50

Active

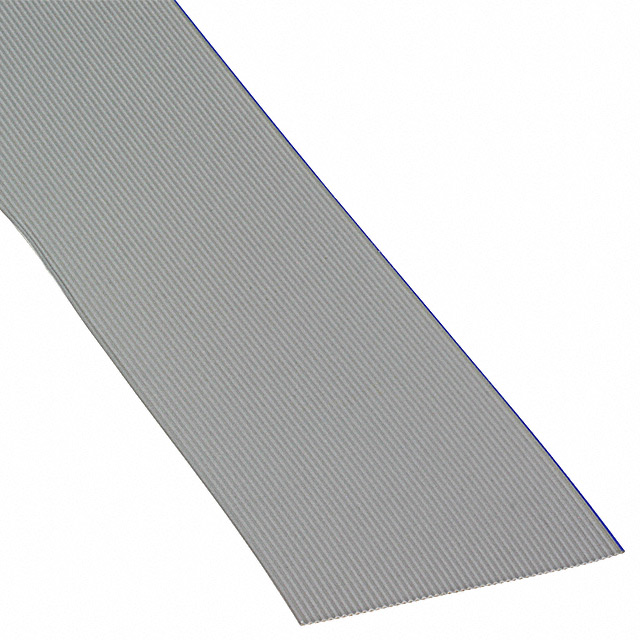

CBL RIBN 50COND 0.05 GRAY 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cables & Accessories Selection Guide

HF539/50

Active

CBL RIBN 50COND 0.05 GRAY 50'

Deep-Dive with AI

DocumentsDatasheet Cables & Accessories Selection Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 91.15
		1	$ 346.55
		5	$ 282.30
		5	$ 74.79
		10	$ 68.55
		10	$ 258.94
		25	$ 60.76
		50	$ 55.70
		100	$ 51.80

Description

General part information

HF539 Series

Flat Ribbon Cable Gray 50 Conductors 0.050" (1.27mm) Flat Cable 50.0' (15.24m)

Documents

Technical documentation and resources

Datasheet

Cables & Accessories Selection Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HF539/50	HF539 Series

Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19 Strands	19 Strands
Conductor Strand [custom]	40 AWG	40 AWG
Current Rating (Amps)	1 A	1 A
Features	Zippable	Zippable
First Conductor Mark	Blue	Blue
Insulation Resistance	10 GOhm	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Gray	Gray
Length	15.24 m	7.62 - 304.8 m
Length	50 ft	1 - 50 ft
Length [x]	3.05 m	3.05 - 30.48 m
Length [x]	10 ft	10 - 100 ft
Number of Conductors	50	10 - 64
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 21682	UL Style 21682
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	63.5 mm	1 - 63.5 mm
Ribbon Width	2.5 "	1.3 - 2.5 "
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Ribbon Width	-	20.32 - 81.28 mm
Ribbon Width	-	0.8 - 3.2 in
Ribbon Width	-	25.4 mm
Ribbon Width	-	0.7 in
Ribbon Width	-	17.78 mm
Shielding	Unshielded	Unshielded
Voltage	300 V	300 V
Wire Gauge	28 AWG	28 AWG

HF539 Series

RIBBON CABLE, LSZH MEDIUM FLEX FLAT, UNSHIELDED, 10 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Part	Conductor Strand [custom]	Conductor Strand [custom]	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Length [x]	Length [x]	Conductor Material	Features	Insulation Resistance	Current Rating (Amps)	Wire Gauge	First Conductor Mark	Voltage	Ribbon Width [custom]	Ribbon Width [custom]	Ratings	Number of Conductors	Shielding	Jacket Color	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Cable Type	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width	Ribbon Width	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]
3M HF539/10	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	7.62 m, 15.24 m, 304.8 mm	1 ft, 25 ft, 50 ft	100 ft	30.48 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V	0.5 "	12.7 mm	UL Style 21682	10	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable
3M HF539/30	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	304.8 mm	1 ft	10 ft	3.05 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	30	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable	38.1 mm	1.5 in
3M HF539/26	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	15.24 m, 304.8 mm	1 ft, 50 ft			Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	26	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable			1.3 "	33.02 mm
3M HF539/50	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	15.24 m	50 ft	10 ft	3.05 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	50	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable			2.5 "	63.5 mm
3M HF539/20	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	7.62 m, 15.24 m, 304.8 mm	1 ft, 25 ft, 50 ft	100 ft	30.48 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	20	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable				1 in	25.4 mm
3M HF539/40	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	304.8 mm	1 ft			Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	40	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable	50.8 mm	2 in
3M HF539/64	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	7.62 m, 304.8 mm	1 ft, 25 ft	10 ft, 100 ft	3.05 m, 30.48 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	64	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable	81.28 mm	3.2 in
3M HF539/16	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	304.8 mm	1 ft			Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	16	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable	20.32 mm	0.8 in
3M HF539/14	19 Strands	40 AWG	0.05 in	1.27 mm	-40 °C	105 ░C	7.62 m, 15.24 m	25 ft, 50 ft	100 ft	30.48 m	Copper, Tinned	Zippable	10 GOhm	1 A	28 AWG	Blue	300 V			UL Style 21682	14	Unshielded	Gray	0.89 mm	0.035 in	Polyolefin (PO)	Flat Cable						0.7 in	17.78 mm
