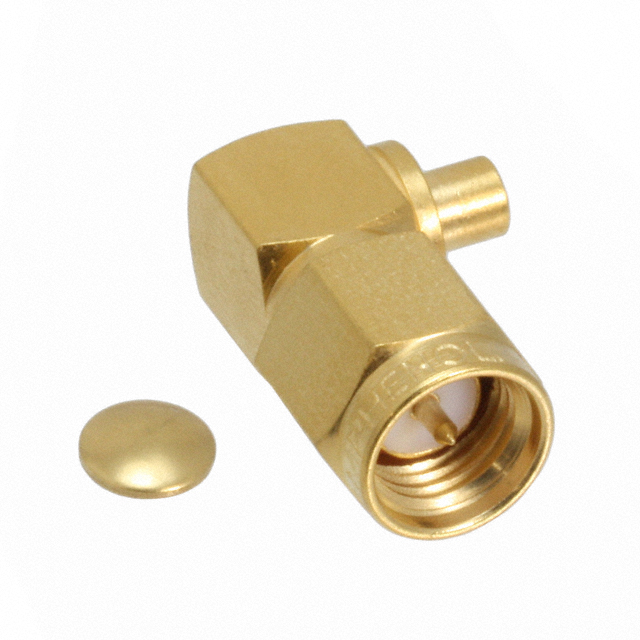

901-9221-2A

Active

Amphenol RF

CONN SMA PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

901-9221-2A

Active

Amphenol RF

CONN SMA PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	901-9221-2A

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

901-92 Series

Part	Impedance	Body Material	Housing Color	Connector Type	Mating Cycles	Center Contact Material	Frequency - Max [Max]	Shield Termination	Connector Style	Contact Termination	Features	Mounting Feature	Number of Ports	Dielectric Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Cable Group [Min]	Cable Group [Max]	Mounting Type	Body Finish	Includes	Center Gender	Convert To (Adapter End)	Conversion Type	Adapter Type	Convert From (Adapter End)	Style	Adapter Series
Amphenol RF 901-9244-1SF	50 Ohms	Stainless Steel	Silver	Female Socket Receptacle	500	Beryllium Copper	12.4 GHz	Solder	SMA	Solder	Extended Insulation	Flange	1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C
Amphenol RF 901-9221-2ASF	50 Ohms	Stainless Steel	Silver	Male Pin Plug	500	Beryllium Copper	18 GHz	Solder	SMA	Solder			1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	RG-405 Semi Rigid	0.085 in	0.086 in	Free Hanging (In-Line) Right Angle
Amphenol RF 901-9210-2	50 Ohms	Stainless Steel	Gold	Female Socket Jack	500	Beryllium Copper	12.4 GHz	Solder	SMA	Solder		Bulkhead - Front Side Nut	1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	RG-405 Semi Rigid	0.085 in	0.086 in		Gold	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 6 pcs
Amphenol RF 901-9217	50 Ohms	Stainless Steel				Beryllium Copper	12.4 GHz							Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C				Free Hanging (In-Line)	Gold		Female to Female	Female Socket SMA Jack	Same Series	Jack to Jack	Female Socket SMA Jack	Straight	SMA to SMA
Amphenol RF 901-9218-SF	50 Ohms	Stainless Steel			500	Beryllium Copper	12.4 GHz							Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C				Free Hanging (In-Line)			Male to Male	Male Pin SMA Plug	Same Series	Plug to Plug	SMA Plug Male Pin	Straight	SMA to SMA
Amphenol RF 901-9221-2A	50 Ohms	Stainless Steel	Gold	Male Pin Plug	500	Beryllium Copper	18 GHz	Solder	SMA	Solder			1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	RG-405 Semi Rigid	0.085 in	0.086 in	Free Hanging (In-Line) Right Angle	Gold
Amphenol RF 901-9215-3CCSF	50 Ohms	Stainless Steel	Silver	Female Socket Jack		Beryllium Copper	18 GHz	Solder	SMA	Solder Tab		Flange	1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C
Amphenol RF 901-9221-1A	50 Ohms	Stainless Steel	Gold	Male Pin Plug	500	Beryllium Copper	18 GHz	Solder	SMA	Solder			1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C				Free Hanging (In-Line) Right Angle	Gold
Amphenol RF 901-9214-CCSF	50 Ohms	Stainless Steel	Silver	Male Pin Plug	500	Beryllium Copper	12.4 GHz	Solder	SMA	Solder	Extended Insulation	Flange	1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C
Amphenol RF 901-9214-CC	50 Ohms	Stainless Steel	Gold	Male Pin Plug	500	Beryllium Copper	12.4 GHz	Solder	SMA	Solder	Extended Insulation	Flange	1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C					Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.32
		10	$ 30.93
		100	$ 27.68

Description

General part information

901-92 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
