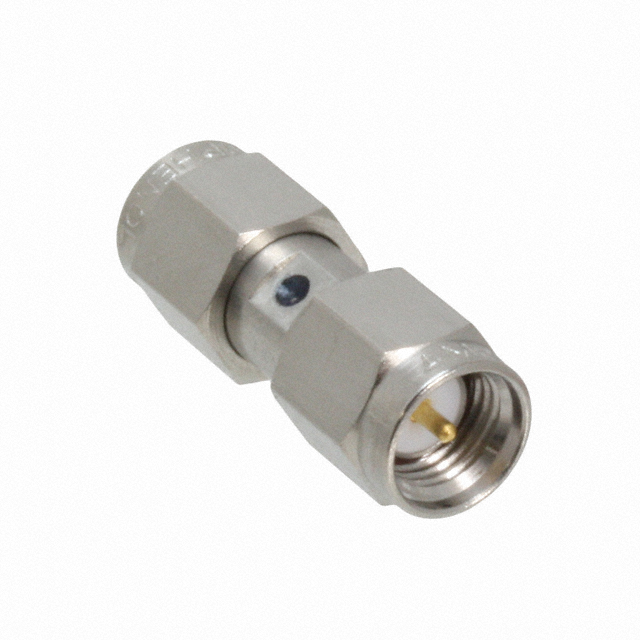

901-9218-SF

Active

Amphenol RF

CONN ADAPT PLUG-PLUG SMA 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

901-9218-SF

Active

Amphenol RF

CONN ADAPT PLUG-PLUG SMA 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	901-9218-SF

Adapter Series	SMA to SMA
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

901-92 Series

Part	Impedance	Body Material	Housing Color	Connector Type	Mating Cycles	Center Contact Material	Frequency - Max [Max]	Shield Termination	Connector Style	Contact Termination	Features	Mounting Feature	Number of Ports	Dielectric Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Cable Group [Min]	Cable Group [Max]	Mounting Type	Body Finish	Includes	Center Gender	Convert To (Adapter End)	Conversion Type	Adapter Type	Convert From (Adapter End)	Style	Adapter Series
Amphenol RF 901-9244-1SF	50 Ohms	Stainless Steel	Silver	Female Socket Receptacle	500	Beryllium Copper	12.4 GHz	Solder	SMA	Solder	Extended Insulation	Flange	1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C
Amphenol RF 901-9221-2ASF	50 Ohms	Stainless Steel	Silver	Male Pin Plug	500	Beryllium Copper	18 GHz	Solder	SMA	Solder			1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	RG-405 Semi Rigid	0.085 in	0.086 in	Free Hanging (In-Line) Right Angle
Amphenol RF 901-9210-2	50 Ohms	Stainless Steel	Gold	Female Socket Jack	500	Beryllium Copper	12.4 GHz	Solder	SMA	Solder		Bulkhead - Front Side Nut	1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	RG-405 Semi Rigid	0.085 in	0.086 in		Gold	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 6 pcs
Amphenol RF 901-9217	50 Ohms	Stainless Steel				Beryllium Copper	12.4 GHz							Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C				Free Hanging (In-Line)	Gold		Female to Female	Female Socket SMA Jack	Same Series	Jack to Jack	Female Socket SMA Jack	Straight	SMA to SMA
Amphenol RF 901-9218-SF	50 Ohms	Stainless Steel			500	Beryllium Copper	12.4 GHz							Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C				Free Hanging (In-Line)			Male to Male	Male Pin SMA Plug	Same Series	Plug to Plug	SMA Plug Male Pin	Straight	SMA to SMA
Amphenol RF 901-9221-2A	50 Ohms	Stainless Steel	Gold	Male Pin Plug	500	Beryllium Copper	18 GHz	Solder	SMA	Solder			1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	RG-405 Semi Rigid	0.085 in	0.086 in	Free Hanging (In-Line) Right Angle	Gold
Amphenol RF 901-9215-3CCSF	50 Ohms	Stainless Steel	Silver	Female Socket Jack		Beryllium Copper	18 GHz	Solder	SMA	Solder Tab		Flange	1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C
Amphenol RF 901-9221-1A	50 Ohms	Stainless Steel	Gold	Male Pin Plug	500	Beryllium Copper	18 GHz	Solder	SMA	Solder			1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C				Free Hanging (In-Line) Right Angle	Gold
Amphenol RF 901-9214-CCSF	50 Ohms	Stainless Steel	Silver	Male Pin Plug	500	Beryllium Copper	12.4 GHz	Solder	SMA	Solder	Extended Insulation	Flange	1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C
Amphenol RF 901-9214-CC	50 Ohms	Stainless Steel	Gold	Male Pin Plug	500	Beryllium Copper	12.4 GHz	Solder	SMA	Solder	Extended Insulation	Flange	1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C					Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 78.57

Description

General part information

901-92 Series

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohms

Documents

Technical documentation and resources

No documents available
