Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPA3116D2QDADRQ1 | TPA3116 Series |
|---|---|---|
| Board Type | - | Fully Populated |
| Features | Short-Circuit and Thermal Protection | Short-Circuit and Thermal Protection, Shutdown, Mute, Differential Inputs |
| Grade | Automotive | Automotive |
| Max Output Power x Channels @ Load | 4 Ohm | 4 Ohm |
| Max Output Power x Channels @ Load [custom] | 2 | 2 |
| Max Output Power x Channels @ Load [Max] [x] | 50 W | 50 W |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | 2-Channel (Stereo) | 2-Channel (Stereo) |

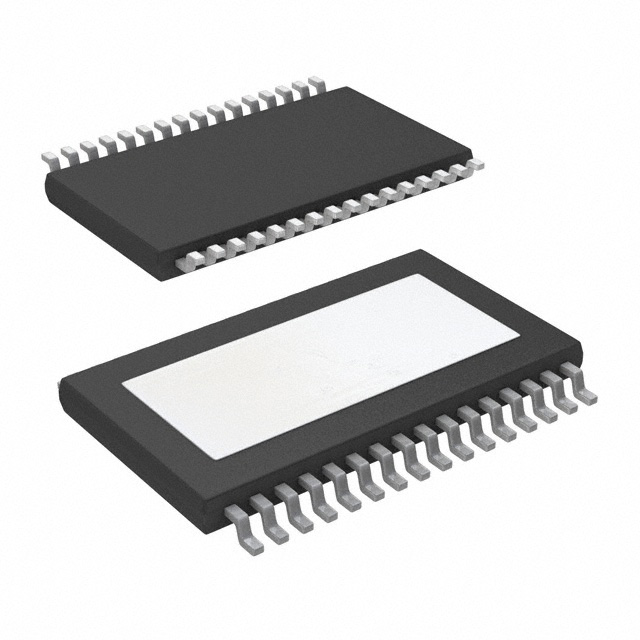

| Package / Case | 32-PowerTSSOP | 32-PowerTSSOP |
| Package / Case | 0.24 in, 6.1 mm | 0.24 - 6.1 in |
| Qualification | AEC-Q100 | AEC-Q100 |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 32-HTSSOP | 32-HTSSOP |
| Type | Class D | Class D |
| Utilized IC / Part | - | TPA3116D2 |
| Voltage - Supply [Max] | 26 V | 26 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 - 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Bulk | 139 | $ 2.17 | |
| Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | 1 | $ 4.60 | ||
| 10 | $ 3.50 | |||
| 25 | $ 3.22 | |||
| 100 | $ 2.92 | |||
| 250 | $ 2.77 | |||
| 500 | $ 2.69 | |||
| 1000 | $ 2.61 | |||
| 2000 | $ 1.88 | |||
| Digikey | Cut Tape (CT) | 1 | $ 5.00 | |
| 10 | $ 4.49 | |||
| 25 | $ 4.25 | |||
| 100 | $ 3.68 | |||
| 250 | $ 3.49 | |||
| 500 | $ 3.13 | |||
| 1000 | $ 2.64 | |||
| Digi-Reel® | 1 | $ 5.00 | ||
| 10 | $ 4.49 | |||
| 25 | $ 4.25 | |||
| 100 | $ 3.68 | |||
| 250 | $ 3.49 | |||
| 500 | $ 3.13 | |||
| 1000 | $ 2.64 | |||
| Tape & Reel (TR) | 2000 | $ 1.88 | ||
| LCSC | N/A | 1 | $ 5.42 | |
| 10 | $ 5.30 | |||
| 30 | $ 5.21 | |||
| 100 | $ 5.13 | |||
| Mouser Electronics | N/A | 1 | $ 5.25 | |
| 10 | $ 3.52 | |||
| 100 | $ 2.77 | |||
| 250 | $ 2.57 | |||
| 500 | $ 2.36 | |||
| 1000 | $ 2.05 | |||
| 2000 | $ 1.96 | |||
| 4000 | $ 1.91 | |||
| Rochester Electronics | N/A | 1 | $ 2.09 | |
| 25 | $ 2.05 | |||
| 100 | $ 1.96 | |||
| 500 | $ 1.88 | |||
| 1000 | $ 1.78 | |||
| Texas Instruments | LARGE T&R | 1 | $ 3.71 | |
| 100 | $ 2.85 | |||
| 250 | $ 2.10 | |||
| 1000 | $ 1.50 | |||
| Verical | N/A | 154 | $ 2.45 | |
| 500 | $ 2.35 | |||
| 1000 | $ 2.23 | |||
| Win Source Electronics | N/A | 17 | $ 2.99 | |
| 41 | $ 2.45 | |||
| 64 | $ 2.38 | |||
| 87 | $ 2.30 | |||
| 113 | $ 2.22 | |||
| 151 | $ 1.99 | |||
TPA3116 Series
Automotive, 50-W, 2-ch, 4.5- to 26-V supply analog input Class-D audio amplifier
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Grade | Features | Mounting Type | Max Output Power x Channels @ Load [custom] | Max Output Power x Channels @ Load | Max Output Power x Channels @ Load [Max] [x] | Type | Package / Case | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Output Type | Qualification | Utilized IC / Part | Supplied Contents | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPA3116D2QDADRQ1 | 26 V | 4.5 V | Automotive | Short-Circuit and Thermal Protection | Surface Mount | 2 | 4 Ohm | 50 W | Class D | 32-PowerTSSOP | 0.24 in, 6.1 mm | -40 °C | 125 °C | 32-HTSSOP | 2-Channel (Stereo) | AEC-Q100 | |||
Texas Instruments TPA3116D2DADR | 26 V | 4.5 V | Differential Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown | Surface Mount | 2 | 4 Ohm | 50 W | Class D | 32-PowerTSSOP | 0.24 in, 6.1 mm | -40 °C | 85 °C | 32-HTSSOP | 2-Channel (Stereo) | |||||
Texas Instruments TPA3116D2EVM | 26 V | 6 V | 2 | 4 Ohm | 50 W | 2-Channel (Stereo) | TPA3116D2 | Board(s) | Fully Populated | ||||||||||
Texas Instruments TPA3116D2DAD | 26 V | 4.5 V | Differential Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown | Surface Mount | 2 | 4 Ohm | 50 W | Class D | 32-PowerTSSOP | 0.24 in, 6.1 mm | -40 °C | 85 °C | 32-HTSSOP | 2-Channel (Stereo) |
Description
General part information
TPA3116 Series
The TPA311xD2-Q1 devices are automotive stereo, efficient, digital-amplifier power stages for driving speakers up to 100 W into 2 Ω in mono. The TPA3118D2-Q1 can even drive 2 × 30 W into 8 Ω without a heat sink on a dual-layer PCB. If even higher power is needed, the TPA3116D2-Q1 drives 2 × 50 W into 4 Ω with a small heat sink attached to its top-side thermal pad.
The TPA311xD2-Q1 advanced oscillator and PLL circuit employ a multiple-switching-frequency option to avoid AM interference; this is achieved together with an option of either master or slave selection, making it possible to synchronize multiple devices.
The TPA311xD2-Q1 devices are fully protected against faults with short-circuit protection and thermal protection as well as overvoltage, undervoltage and dc protection. Faults are reported back to the processor to prevent devices from being damaged during overload conditions.
