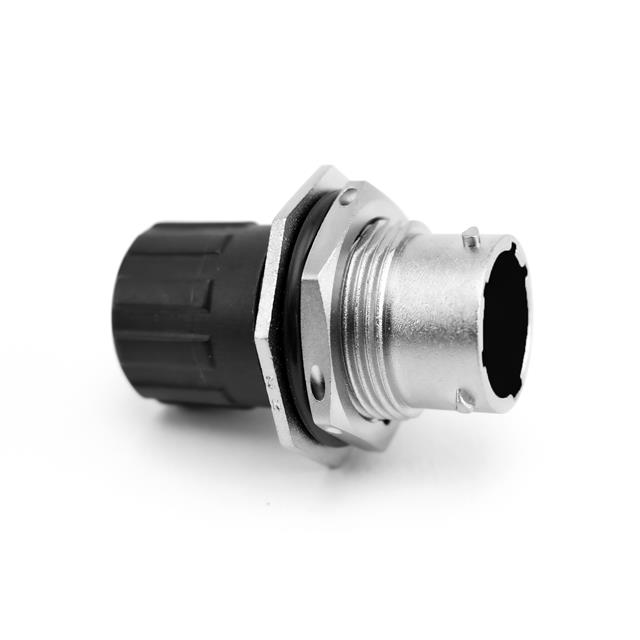

RT07128PNHEC03R

Active

Amphenol Sine Systems Corp

RECEPTACLE, JAM NUT, 8 POSITION,

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 ecomate RM, RSSM, RM Flyer +1

RT07128PNHEC03R

Active

Amphenol Sine Systems Corp

RECEPTACLE, JAM NUT, 8 POSITION,

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 ecomate RM, RSSM, RM Flyer +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT07128PNHEC03R

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Silver
Includes	1 O-Ring, 1 Connector, 1 Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	12-8
Shielding	Shielded
Type	For Male Pins

RT07128 Series

Part	Note	Contact Shape	Material Flammability Rating	Number of Positions	Housing Color	Includes	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Size - Insert	Contact Size	Shell Material	Type	Orientation	Connector Type	Fastening Type	Mounting Feature	Shielding	Shell Finish	Insert Material	Contact Type	Primary Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating (Amps)	Termination	Color
Amphenol Sine Systems Corp RT07128SNHEC	Contacts Not Included	Circular	UL94 V-0	8	Silver	1 Connector 1 Nut 1 O-Ring	Backshell	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	12-8	16	Zinc Alloy	For Female Sockets	N	Receptacle Housing	Bayonet Lock	Bulkhead - Front Side Nut	Shielded	Nickel	Thermoplastic	Crimp
Amphenol Sine Systems Corp RT07128PNH-K				8				-40 °C	105 ░C	IP67 - Dust Tight Waterproof	12-8		Zinc Die Cast		N	Male Pins Receptacle	Bayonet Lock	Bulkhead - Front Side Nut		Nickel			Metal	250 VAC	Flash	Gold	13 A	Crimp	Silver
Amphenol Sine Systems Corp RT07128PNHEC03R	Contacts Not Included	Circular	UL94 V-0	8	Silver	1 Connector 1 Nut 1 O-Ring	Backshell	-40 °C	125 °C	IP67 - Dust Tight Waterproof	12-8	16	Zinc Alloy	For Male Pins	N	Receptacle Housing	Bayonet Lock	Bulkhead - Front Side Nut	Shielded	Nickel	Thermoplastic	Crimp
Amphenol Sine Systems Corp RT07128SNH03	Contacts Not Included	Circular	UL94 V-0	8	Silver	1 Connector 1 Gasket 1 Nut 1 O-Ring		-40 °C	125 °C	IP67 - Dust Tight Waterproof	12-8	16	Zinc Alloy	For Female Sockets	N	Receptacle Housing	Bayonet Lock	Bulkhead - Front Side Nut	Shielded	Nickel	Thermoplastic	Crimp
Amphenol Sine Systems Corp RT07128PNHECR	Contacts Not Included	Circular	UL94 V-0	8	Silver		Cap (Cover)	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	12-8	16	Zinc Alloy	For Male Pins	N	Receptacle Housing	Bayonet Lock	Bulkhead - Front Side Nut	Shielded	Nickel	Thermoplastic	Crimp	Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.46
		10	$ 19.48

Description

General part information

RT07128 Series

8 Position Circular Connector Receptacle Housing Panel Mount Backshell

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

ecomate RM, RSSM, RM Flyer

Datasheet
