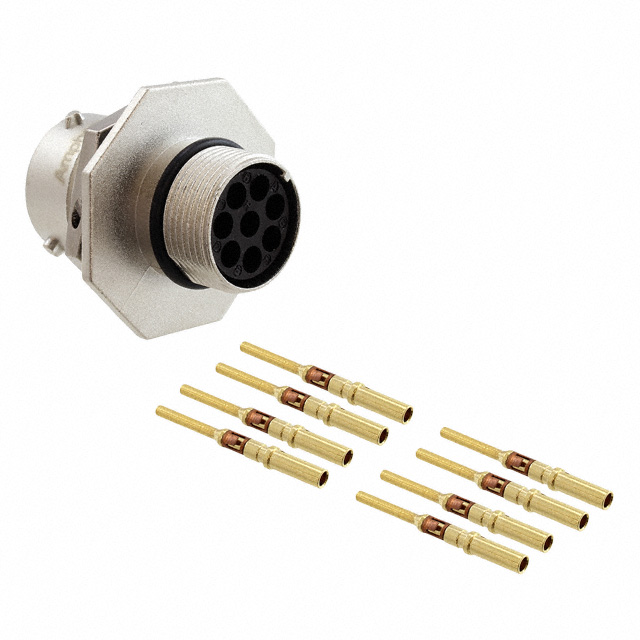

RT07128PNH-K

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate RM, RSSM, RM Flyer Datasheet +1

RT07128PNH-K

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

Documentsecomate RM, RSSM, RM Flyer Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT07128PNH-K

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	12-8
Termination	Crimp
Voltage Rating	250 VAC

RT07128 Series

Part	Note	Contact Shape	Material Flammability Rating	Number of Positions	Housing Color	Includes	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Size - Insert	Contact Size	Shell Material	Type	Orientation	Connector Type	Fastening Type	Mounting Feature	Shielding	Shell Finish	Insert Material	Contact Type	Primary Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating (Amps)	Termination	Color
Amphenol Sine Systems Corp RT07128SNHEC	Contacts Not Included	Circular	UL94 V-0	8	Silver	1 Connector 1 Nut 1 O-Ring	Backshell	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	12-8	16	Zinc Alloy	For Female Sockets	N	Receptacle Housing	Bayonet Lock	Bulkhead - Front Side Nut	Shielded	Nickel	Thermoplastic	Crimp
Amphenol Sine Systems Corp RT07128PNH-K				8				-40 °C	105 ░C	IP67 - Dust Tight Waterproof	12-8		Zinc Die Cast		N	Male Pins Receptacle	Bayonet Lock	Bulkhead - Front Side Nut		Nickel			Metal	250 VAC	Flash	Gold	13 A	Crimp	Silver
Amphenol Sine Systems Corp RT07128PNHEC03R	Contacts Not Included	Circular	UL94 V-0	8	Silver	1 Connector 1 Nut 1 O-Ring	Backshell	-40 °C	125 °C	IP67 - Dust Tight Waterproof	12-8	16	Zinc Alloy	For Male Pins	N	Receptacle Housing	Bayonet Lock	Bulkhead - Front Side Nut	Shielded	Nickel	Thermoplastic	Crimp
Amphenol Sine Systems Corp RT07128SNH03	Contacts Not Included	Circular	UL94 V-0	8	Silver	1 Connector 1 Gasket 1 Nut 1 O-Ring		-40 °C	125 °C	IP67 - Dust Tight Waterproof	12-8	16	Zinc Alloy	For Female Sockets	N	Receptacle Housing	Bayonet Lock	Bulkhead - Front Side Nut	Shielded	Nickel	Thermoplastic	Crimp
Amphenol Sine Systems Corp RT07128PNHECR	Contacts Not Included	Circular	UL94 V-0	8	Silver		Cap (Cover)	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	12-8	16	Zinc Alloy	For Male Pins	N	Receptacle Housing	Bayonet Lock	Bulkhead - Front Side Nut	Shielded	Nickel	Thermoplastic	Crimp	Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 23.11

Description

General part information

RT07128 Series

8 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

ecomate RM, RSSM, RM Flyer

Datasheet

ecomate-Family-Flyer-2019

Datasheet
