NA-PP

Active

TYCLON

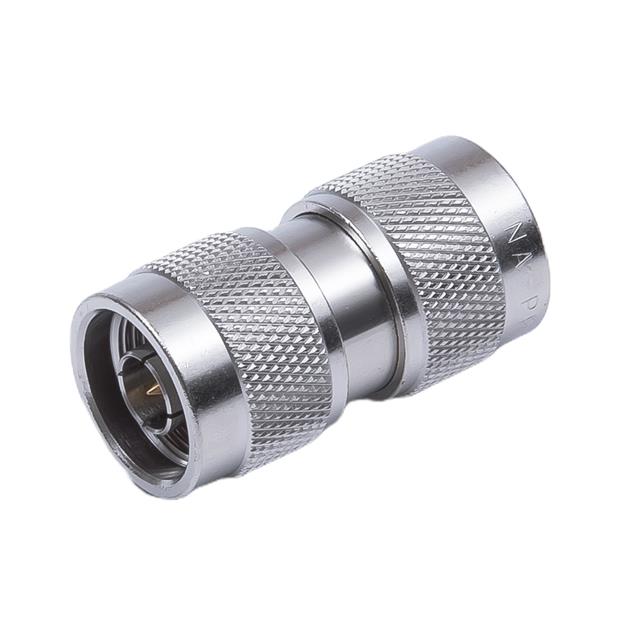

COAX ADAPT N TO N

Search across all available documentation for this part.

Active

TYCLON

COAX ADAPT N TO N

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NA-PP	- Series

Adapter Series	N to N	N to N, F to F
Adapter Type	Plug to Plug	Plug to Plug, Plug to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Center Gender	Male to Male	Male to Male
Connector Style	-	SHV, N Type
Connector Type	-	Female Socket, Jack
Contact Termination	-	Solder Cup
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	F Plug, Male Pin	F Plug, Male Pin, F Jack, Female Socket
Convert To (Adapter End)	Male Pin, F Plug	Male Pin, F Plug
Fastening Type	-	Bayonet Lock
Features	-	Extended Insulation
Frequency - Max [Max]	10 GHz	2.7 - 10 GHz
Housing Color	-	Silver
Impedance	50 Ohms	50 - 75 Ohms
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	-	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	-	Solder
Style	Straight	Straight, Right Angle
Voltage Rating	-	500 - 3500 V

SHV-R SHV RECEPTACLE

Part	Body Finish	Features	Housing Color	Center Contact Material	Connector Style	Connector Type	Center Contact Plating	Number of Ports	Shield Termination	Mounting Feature	Voltage Rating	Body Material	Contact Termination	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Convert From (Adapter End)	Conversion Type	Style	Impedance	Adapter Type	Adapter Series	Center Gender	Convert To (Adapter End)	Frequency - Max [Max]
TYCLON SHV-R	Nickel	Extended Insulation	Silver	Brass	SHV	Female Socket, Jack	Gold	1	Solder	Flange	3500 V	Brass	Solder Cup	Bayonet Lock
TYCLON NA-PP	Nickel			Brass			Gold					Brass			85 °C	-40 °C	Free Hanging (In-Line)	F Plug, Male Pin	Same Series	Straight	50 Ohms	Plug to Plug	N to N	Male to Male	F Plug, Male Pin	10 GHz
TYCLON F-LAC	Nickel			Brass			Gold					Brass			85 °C	-40 °C	Free Hanging (In-Line), Right Angle	F Jack, Female Socket	Same Series	Right Angle	75 Ohms	Plug to Jack	F to F		F Plug, Male Pin	2.7 GHz
TYCLON N-R					N Type	Female Socket, Jack		1	Solder	Flange	500 V		Solder Cup		85 °C	-40 °C					50 Ohms					10 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector F Plug, Male Pin To F Plug, Male Pin 50 Ohms
