SHV-R

Active

TYCLON

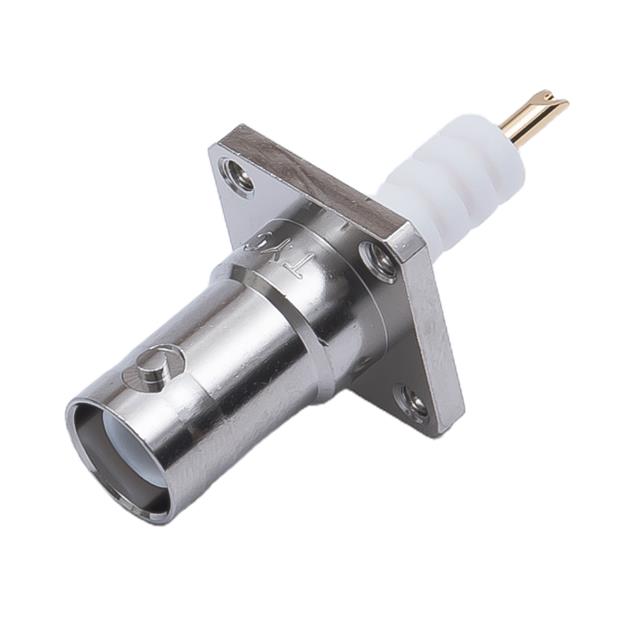

SHV-R SHV RECEPTACLE

Search across all available documentation for this part.

Active

TYCLON

SHV-R SHV RECEPTACLE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SHV Connector Jack, Female Socket Panel Mount Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SHV-R	- Series

Adapter Series	-	N to N, F to F
Adapter Type	-	Plug to Plug, Plug to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Center Gender	-	Male to Male
Connector Style	SHV	SHV, N Type
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder Cup	Solder Cup
Conversion Type	-	Same Series
Convert From (Adapter End)	-	F Plug, Male Pin, F Jack, Female Socket
Convert To (Adapter End)	-	Male Pin, F Plug
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Extended Insulation	Extended Insulation
Frequency - Max	-	2.7 - 10 GHz
Housing Color	Silver	Silver
Impedance	-	50 - 75 Ohms
Mounting Feature	Flange	Flange
Mounting Type	-	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Shield Termination	Solder	Solder
Style	-	Straight, Right Angle
Voltage Rating	3500 V	500 - 3500 V

SHV-R SHV RECEPTACLE

Part	Body Finish	Features	Housing Color	Center Contact Material	Connector Style	Connector Type	Center Contact Plating	Number of Ports	Shield Termination	Mounting Feature	Voltage Rating	Body Material	Contact Termination	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Convert From (Adapter End)	Conversion Type	Style	Impedance	Adapter Type	Adapter Series	Center Gender	Convert To (Adapter End)	Frequency - Max [Max]
TYCLON SHV-R	Nickel	Extended Insulation	Silver	Brass	SHV	Female Socket, Jack	Gold	1	Solder	Flange	3500 V	Brass	Solder Cup	Bayonet Lock
TYCLON NA-PP	Nickel			Brass			Gold					Brass			85 °C	-40 °C	Free Hanging (In-Line)	F Plug, Male Pin	Same Series	Straight	50 Ohms	Plug to Plug	N to N	Male to Male	F Plug, Male Pin	10 GHz
TYCLON F-LAC	Nickel			Brass			Gold					Brass			85 °C	-40 °C	Free Hanging (In-Line), Right Angle	F Jack, Female Socket	Same Series	Right Angle	75 Ohms	Plug to Jack	F to F		F Plug, Male Pin	2.7 GHz
TYCLON N-R					N Type	Female Socket, Jack		1	Solder	Flange	500 V		Solder Cup		85 °C	-40 °C					50 Ohms					10 GHz
