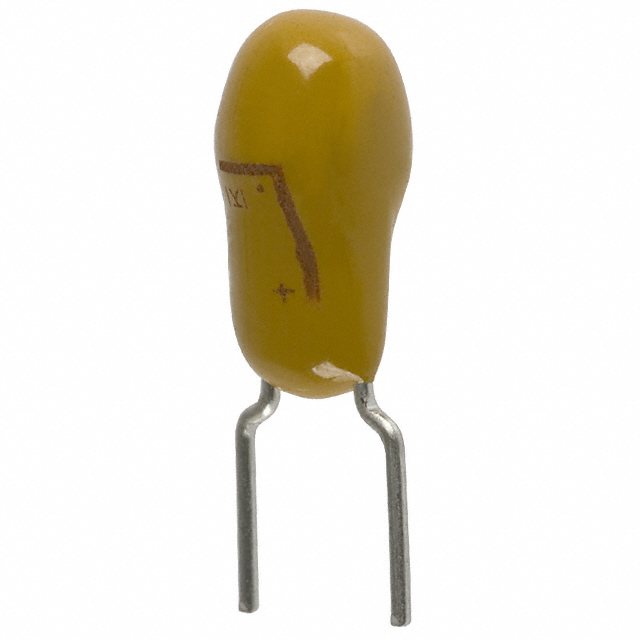

T356H476K010AS

Active

KEMET

CAP TANT 47UF 10% 10V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 47UF 10% 10V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T356H476K010AS

Capacitance	47 µF
ESR (Equivalent Series Resistance)	1.7 Ohms
Features	General Purpose
Height - Seated (Max) [Max]	0.469 in
Height - Seated (Max) [Max]	11.9 mm
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	H
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.299 in
Size / Dimension [diameter]	7.6 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	10 V

Part	Capacitance	Mounting Type	Features	Lead Spacing	Lead Spacing	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Manufacturer Size Code	ESR (Equivalent Series Resistance)
KEMET T356H226M025AT	22 µF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	20 %	25 VDC	-55 °C	125 °C	H
KEMET T356H476K010AS	47 µF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	10 %	10 V	-55 °C	125 °C	H	1.7 Ohms
KEMET T356H476K010AT	47 µF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	10 %	10 V	-55 °C	125 °C	H	1.7 Ohms
KEMET T356H686K010AT	68 µF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	10 %	10 V	-55 °C	125 °C	H	1.3 Ohm
KEMET T356H226K025AT	22 µF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	10 %	25 VDC	-55 °C	125 °C	H	1.5 Ohm
KEMET T356H336K016AS	33 ÁF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	10 %	16 V	-55 °C	125 °C	H	1.6 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 4.27
