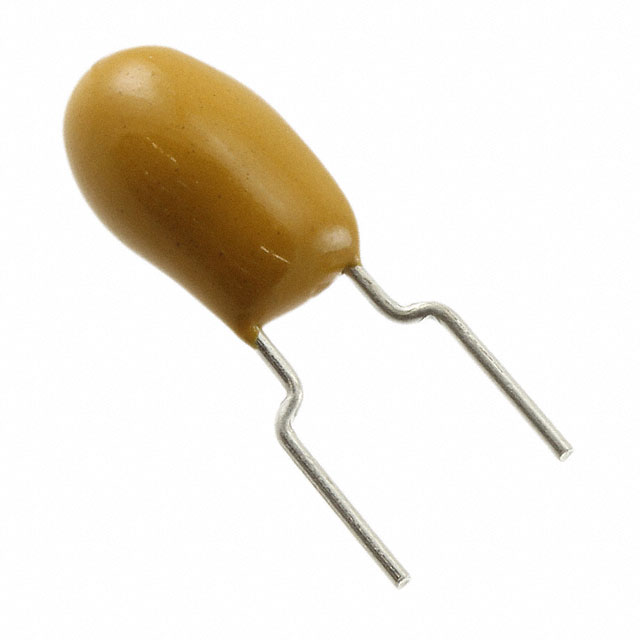

T356H226M025AT

Active

KEMET

TANTALUM CAPACITOR, POLAR, 22 ΜF, 25 V, ± 20%, PC PIN, 5.08 MM, 1.5 OHM

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, POLAR, 22 ΜF, 25 V, ± 20%, PC PIN, 5.08 MM, 1.5 OHM

Technical Specifications

Parameters and characteristics for this part

Part	Capacitance	Mounting Type	Features	Lead Spacing	Lead Spacing	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Manufacturer Size Code	ESR (Equivalent Series Resistance)
KEMET T356H226M025AT	22 µF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	20 %	25 VDC	-55 °C	125 °C	H
KEMET T356H476K010AS	47 µF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	10 %	10 V	-55 °C	125 °C	H	1.7 Ohms
KEMET T356H476K010AT	47 µF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	10 %	10 V	-55 °C	125 °C	H	1.7 Ohms
KEMET T356H686K010AT	68 µF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	10 %	10 V	-55 °C	125 °C	H	1.3 Ohm
KEMET T356H226K025AT	22 µF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	10 %	25 VDC	-55 °C	125 °C	H	1.5 Ohm
KEMET T356H336K016AS	33 ÁF	Through Hole	General Purpose	5.08 mm	0.2 in	Radial	0.299 in	7.6 mm	Conformal Coated	0.469 in	11.9 mm	10 %	16 V	-55 °C	125 °C	H	1.6 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µF Conformal Coated Tantalum Capacitors 25 V Radial

Technical documentation and resources
