Description Specifications Series Pricing CAD Documents

Description

General part information

NTE305 Series

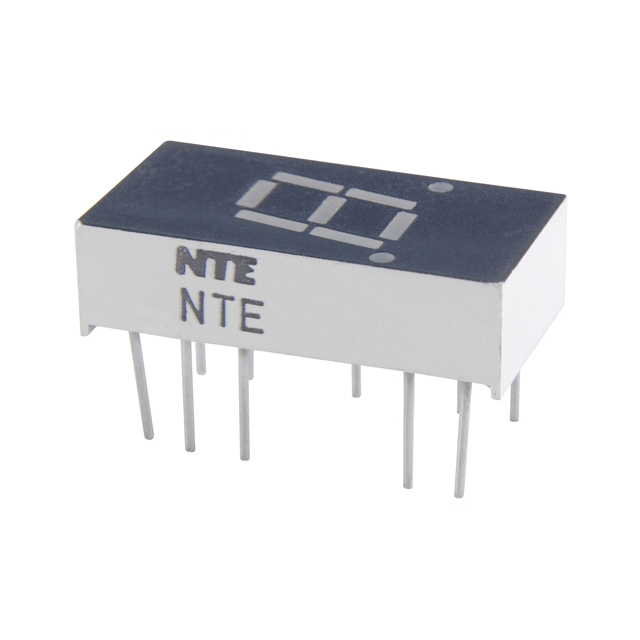

Display Modules - LED Character and Numeric Orange 7-Segment 1 Character Common Cathode 2.1V 10mA 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) 14-DIP (0.300", 7.62mm), 10 Leads

Technical Specifications

Parameters and characteristics for this part

Specification	NTE3058

Color	Orange
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.3 in
Display Type	7-Segment
Millicandela Rating	2 mcd
Number of Characters	1
Package Features	10 Leads
Package Length	0.3 in
Package Name	14-DIP
Package Width	7.62 mm
Power Dissipation (Max)	75 mw
Size / Dimension Depth	0.2 in
Size / Dimension Height	0.738 in
Size / Dimension Width	0.386 in
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Peak	630 nm

NTE305 Series

Part	Voltage - Forward (Vf) (Typ)	Number of Characters	Color	Common Pin	Digit/Alpha Size	Size / Dimension Width	Size / Dimension Height	Size / Dimension Depth	Current - Test	Display Type	Power Dissipation (Max)	Millicandela Rating	Package Width	Package Name	Package Features	Package Length	Wavelength - Peak
NTE Electronics, Inc NTE3057	1.85 V	1	Red	Common Cathode	0.3 in	0.386 in	0.738 in	0.2 in	20 mA	7-Segment	100 mW	10.5 mcd	7.62 mm	14-DIP	10 Leads	0.3 in	660 nm
NTE Electronics, Inc NTE3050	3.4 V	1	Red	Common Anode	0.27 in	0.4 in	0.76 in	0.12 in	20 mA	7-Segment		0.275 mcd	7.62 mm	14-DIP	11 Leads	0.3 in	660 nm
NTE Electronics, Inc NTE3058	2.1 V	1	Orange	Common Cathode	0.3 in	0.386 in	0.738 in	0.2 in	10 mA	7-Segment	75 mw	2 mcd	7.62 mm	14-DIP	10 Leads	0.3 in	630 nm
NTE Electronics, Inc NTE3059	2.1 V	1	Green	Common Cathode	0.3 in	0.386 in	0.738 in	0.2 in	10 mA	7-Segment	75 mw	2 mcd	7.62 mm	14-DIP	10 Leads	0.3 in	565 nm
NTE Electronics, Inc NTE3051			Red	Common Anode	0.27 in	0.4 in	0.76 in	0.12 in	20 mA			0.275 mcd	7.62 mm	14-DIP	6 Leads	0.3 in	660 nm
NTE Electronics, Inc NTE3054	2.1 V	1	Green	Common Anode	0.3 in	0.386 in	0.738 in	0.2 in	10 mA	7-Segment	75 mw	2 mcd	7.62 mm	14-DIP	11 Leads	0.3 in	565 nm
