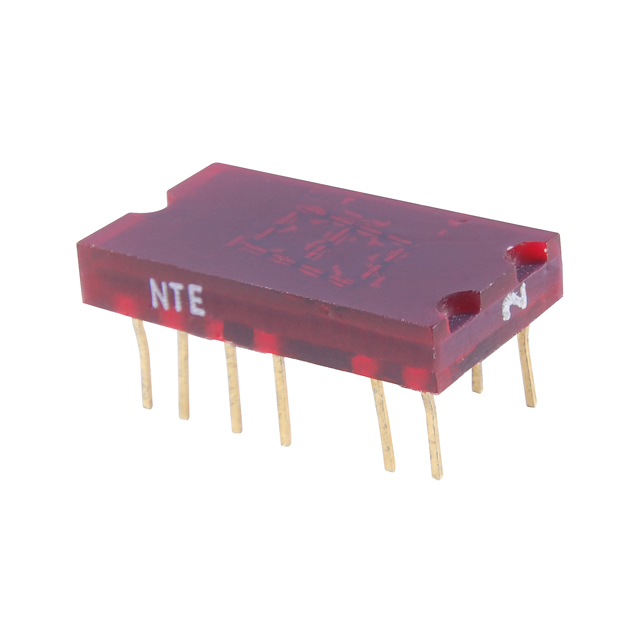

NTE3050

Active

NTE Electronics, Inc

LED-DISPLAY-RED

Deep-Dive with AI

Search across all available documentation for this part.

NTE3050

Active

NTE Electronics, Inc

LED-DISPLAY-RED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NTE3050

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	6.86 mm
Digit/Alpha Size	0.27 in
Display Type	7-Segment
Millicandela Rating	0.275 mcd
Number of Characters [custom]	1
Size / Dimension [x]	19.3 mm
Size / Dimension [x]	0.76 "
Size / Dimension [y]	0.4 in
Size / Dimension [y]	10.16 mm
Size / Dimension [z]	3.05 mm
Size / Dimension [z]	0.12 in
Voltage - Forward (Vf) (Typ)	3.4 V
Wavelength - Peak	660 nm

NTE305 Series

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Package / Case	Package / Case	Package / Case	Millicandela Rating	Display Type	Current - Test	Power Dissipation (Max) [Max]	Color	Wavelength - Peak
NTE Electronics, Inc NTE3057	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	Common Cathode	0.3 in	7.62 mm	1.85 V	1	14-DIP	0.3 in 7.62 mm	10 Leads	10.5 mcd	7-Segment	20 mA	100 mW	Red	660 nm
NTE Electronics, Inc NTE3050	0.76 "	3.05 mm	0.12 in	0.4 in	10.16 mm	19.3 mm	Common Anode	0.27 in	6.86 mm	3.4 V	1				0.275 mcd	7-Segment	20 mA		Red	660 nm
NTE Electronics, Inc NTE3058	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	Common Cathode	0.3 in	7.62 mm	2.1 V	1	14-DIP	0.3 in 7.62 mm	10 Leads	2 mcd	7-Segment	10 mA	75 mw		630 nm
NTE Electronics, Inc NTE3059	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	Common Cathode	0.3 in	7.62 mm	2.1 V	1	14-DIP	0.3 in 7.62 mm	10 Leads	2 mcd	7-Segment	10 mA	75 mw	Green	565 nm
NTE Electronics, Inc NTE3051	0.76 "	3.05 mm	0.12 in	0.4 in	10.16 mm	19.3 mm	Common Anode	0.27 in	6.86 mm			14-DIP		0.3 in 6 Leads 7.62 mm	0.275 mcd		20 mA		Red	660 nm
NTE Electronics, Inc NTE3054	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	Common Anode	0.3 in	7.62 mm	2.1 V	1				2 mcd	7-Segment	10 mA	75 mw	Green	565 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NTE305 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 3.4V 20mA 0.760" H x 0.400" W x 0.120" D (19.30mm x 10.16mm x 3.05mm) 14-DIP (0.300", 7.62mm), 11 Leads
