8719 060500

Active

Belden Inc.

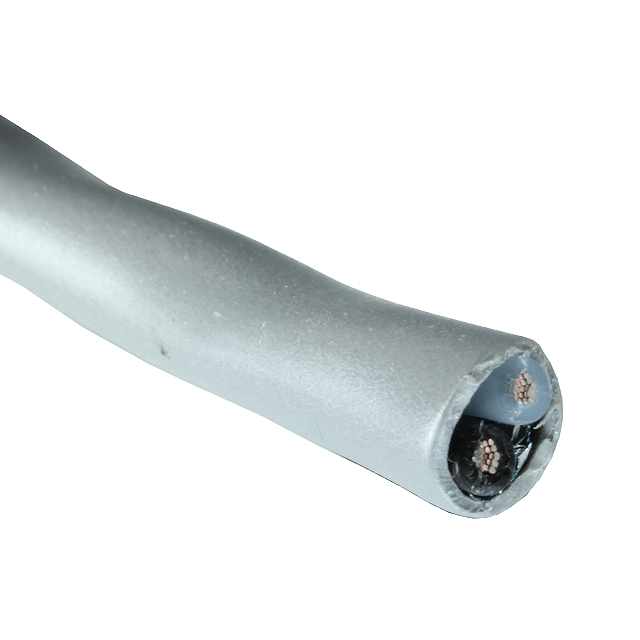

CABLE 2CON 16AWG CHROM SHLD 500'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 16AWG CHROM SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	8719 060500

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.313 "
Jacket (Insulation) Diameter [diameter]	7.95 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	16 AWG

Part	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type	Shield Coverage	Shield Material	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Conductor Insulation	Jacket Color	Number of Conductors	Ratings	Length	Length	Usage
Belden Inc. 8719 060500	16 AWG	0.313 "	7.95 mm	Drain Wire	500 '	152.4 m	-20 C	80 C	Copper Tinned	Multi-Conductor	100 %	Aluminum	Foil	19 Strands	29 AWG	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	Chrome	2
Belden Inc. 8719 060U500	16 AWG	0.313 "	7.95 mm	Drain Wire	500 '	152.4 m	-20 C	80 C	Copper Tinned	Multi-Conductor	100 %	Aluminum	Foil	19 Strands	29 AWG	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	Chrome	2	UL Style 20253
Belden Inc. 8719 0601000	16 AWG	0.313 "	7.95 mm	Drain Wire			-20 C	80 C	Copper Tinned	Multi-Conductor	100 %	Aluminum	Foil	19 Strands	29 AWG	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	Chrome	2	UL Style 20253	1000 ft	304.8 m	Audio Control Instrumentation
Belden Inc. 8719 0605000	16 AWG	0.313 "	7.95 mm	Drain Wire			-20 C	80 C	Copper Tinned	Multi-Conductor	100 %	Aluminum	Foil	19 Strands	29 AWG	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	Chrome	2	UL Style 20253			Audio Control Instrumentation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 16 AWG Foil 500.0' (152.4m)
