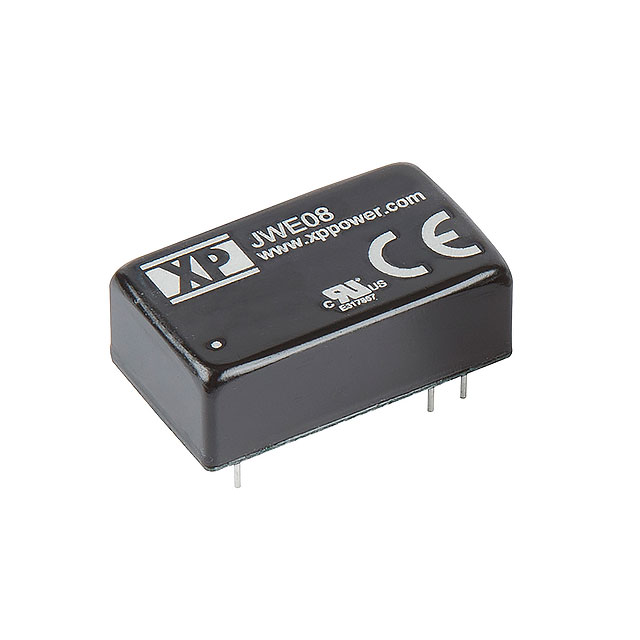

JWE0848S12

Active

XP POWER

DC DC CONVERTER 12V 8W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 12V 8W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Supplier Device Package	Current - Output (Max) [Max]	Number of Outputs	Applications	Features	Mounting Type	Voltage - Output 1	Type	Package / Case	Package / Case	Voltage - Input (Min) [Min]	Standard Number	Power (Watts)	Efficiency	Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max) [Min]
XP POWER JWE0848S15	1.5 kV	16-DIP	535 mA	1	ITE (Commercial)	OCP SCP	Through Hole	15 V	Isolated Module	16-DIP Module	6 Leads	18 V	62368-1	8 W	85 %	75 V
XP POWER JWE0848S12	1.5 kV	16-DIP	665 mA	1	ITE (Commercial)	OCP SCP	Through Hole	12 V	Isolated Module	16-DIP Module	6 Leads	18 V	62368-1	8 W	85 %	75 V
XP POWER JWE0848D12	1.5 kV	16-DIP	335 mA	2	ITE (Commercial)	OCP SCP	Through Hole	12 V	Isolated Module	16-DIP Module	6 Leads	18 V	62368-1	8 W	86 %	75 V	-12 V	335 mA
XP POWER JWE0848S24	1.5 kV	16-DIP	335 mA	1	ITE (Commercial)	OCP SCP	Through Hole	24 V	Isolated Module	16-DIP Module	6 Leads	18 V	62368-1	8 W	86 %	75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 28.50

General part information

Isolated Module DC DC Converter 1 Output 12V 665mA 18V - 75V Input
