SEAF-50-06.5-L-08-2-A-K-TR

Active

Samtec Inc.

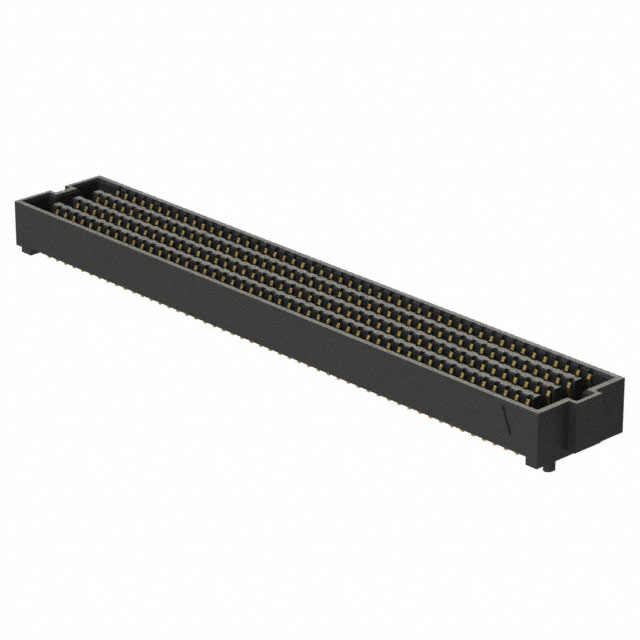

CONN HD ARRAY RCPT 400P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsConn Array Rcpt 160POS SMD Gold / Fill Rows 3, 4, 7, 8 Only, Not Available As Standard.Datasheet +2

SEAF-50-06.5-L-08-2-A-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 400P SMD GOLD

Deep-Dive with AI

DocumentsConn Array Rcpt 160POS SMD Gold / Fill Rows 3, 4, 7, 8 Only, Not Available As Standard.Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAF-50-06.5-L-08-2-A-K-TR

Connector Type	High Density Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.258 "
Height Above Board	6.55 mm
Mated Stacking Heights	19.5 mm, 9.5 mm, 8.5 mm, 15.5 mm, 17.5 mm, 10 mm, 13 mm, 13.5 mm
Mounting Type	Surface Mount
Number of Positions	400
Number of Rows	8
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAF-50 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Features	Number of Positions	Number of Rows	Contact Finish	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Mated Stacking Heights
Samtec Inc. SEAF-50-01-L-08-1-RA-TR	10 Áin	0.25 Ám	0.511 in	12.99 mm	Board Guide	400	8	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-01-S-06-2-RA-TR	30 Áin	0.76 Ám	0.411 in	10.45 mm	Board Guide	300	6	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-01-S-08-2-RA-GP-TR	30 Áin	0.76 Ám	0.511 in	12.99 mm	Board Guide Mating Flange	400	8	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-01-L-06-2-RA-K-TR	10 Áin	0.25 Ám	0.411 in	10.45 mm	Board Guide Pick and Place	300	6	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-01-L-08-2-RA-GP-TR	10 Áin	0.25 Ám	0.511 in	12.99 mm	Board Guide Mating Flange	400	8	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-06.5-L-08-2-A-K-TR	10 Áin	0.25 Ám	0.258 "	6.55 mm	Board Guide Pick and Place	400	8	Gold	High Density Array Female	Surface Mount	0.05 in	1.27 mm	8.5 mm 9.5 mm 10 mm 13 mm 13.5 mm 15.5 mm 17.5 mm 19.5 mm
Samtec Inc. SEAF-50-05.0-S-06-1-A-LP-K-TR	30 Áin	0.76 Ám	0.199 in	5.05 mm	Board Guide Latches Pick and Place	300	6	Gold	High Density Array Female	Surface Mount	0.05 in	1.27 mm	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm
Samtec Inc. SEAF-50-01-S-06-2-RA-GP-K-TR	30 Áin	0.76 Ám	0.411 in	10.45 mm	Board Guide Mating Flange Pick and Place	300	6	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-01-L-04-2-RA-TR	10 Áin	0.25 Ám	0.311 in	7.9 mm	Board Guide			Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-05.0-S-04-1-A-LP-K-TR	30 Áin	0.76 Ám	0.199 in	5.05 mm	Board Guide Latches Pick and Place			Gold	High Density Array Female	Surface Mount	0.05 in	1.27 mm	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 28.52
		10	$ 27.27
		25	$ 26.25
		50	$ 24.33
		100	$ 20.90
	Tape & Reel (TR)	200	$ 20.90
		400	$ 19.07

Description

General part information

SEAF-50 Series

400 Position Connector High Density Array, Female Surface Mount Gold

Documents

Technical documentation and resources

Conn Array Rcpt 160POS SMD Gold / Fill Rows 3, 4, 7, 8 Only, Not Available As Standard.

Datasheet

SEAF Series Other Related Documents 03

SEAF-10-05.0-L-05-1-A-K-TR Datasheet 02

Datasheet
