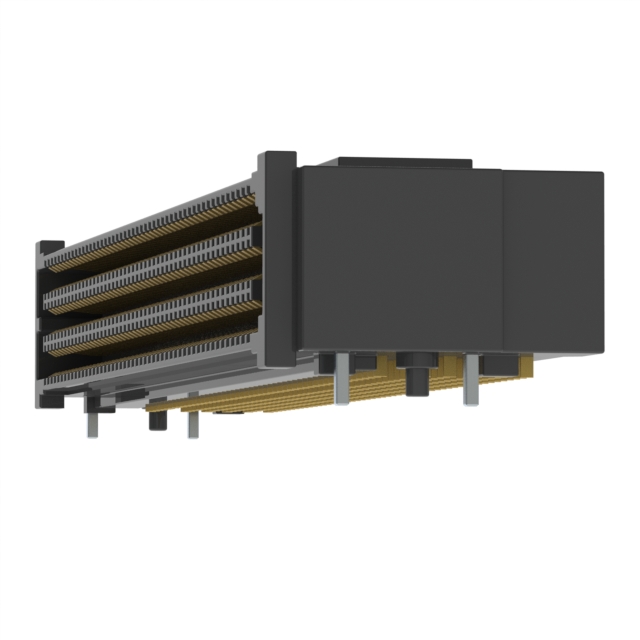

SEAF-50-01-L-06-2-RA-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 300P R/A SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAF-50-01-L-06-2-RA-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 300P R/A SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAF-50-01-L-06-2-RA-K-TR

Connector Type	High Density Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.411 in
Height Above Board	10.45 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	300
Number of Rows	6
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAF-50 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Features	Number of Positions	Number of Rows	Contact Finish	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Mated Stacking Heights
Samtec Inc. SEAF-50-01-L-08-1-RA-TR	10 Áin	0.25 Ám	0.511 in	12.99 mm	Board Guide	400	8	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-01-S-06-2-RA-TR	30 Áin	0.76 Ám	0.411 in	10.45 mm	Board Guide	300	6	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-01-S-08-2-RA-GP-TR	30 Áin	0.76 Ám	0.511 in	12.99 mm	Board Guide Mating Flange	400	8	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-01-L-06-2-RA-K-TR	10 Áin	0.25 Ám	0.411 in	10.45 mm	Board Guide Pick and Place	300	6	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-01-L-08-2-RA-GP-TR	10 Áin	0.25 Ám	0.511 in	12.99 mm	Board Guide Mating Flange	400	8	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-06.5-L-08-2-A-K-TR	10 Áin	0.25 Ám	0.258 "	6.55 mm	Board Guide Pick and Place	400	8	Gold	High Density Array Female	Surface Mount	0.05 in	1.27 mm	8.5 mm 9.5 mm 10 mm 13 mm 13.5 mm 15.5 mm 17.5 mm 19.5 mm
Samtec Inc. SEAF-50-05.0-S-06-1-A-LP-K-TR	30 Áin	0.76 Ám	0.199 in	5.05 mm	Board Guide Latches Pick and Place	300	6	Gold	High Density Array Female	Surface Mount	0.05 in	1.27 mm	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm
Samtec Inc. SEAF-50-01-S-06-2-RA-GP-K-TR	30 Áin	0.76 Ám	0.411 in	10.45 mm	Board Guide Mating Flange Pick and Place	300	6	Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-01-L-04-2-RA-TR	10 Áin	0.25 Ám	0.311 in	7.9 mm	Board Guide			Gold	High Density Array Female	Surface Mount Right Angle	0.05 in	1.27 mm
Samtec Inc. SEAF-50-05.0-S-04-1-A-LP-K-TR	30 Áin	0.76 Ám	0.199 in	5.05 mm	Board Guide Latches Pick and Place			Gold	High Density Array Female	Surface Mount	0.05 in	1.27 mm	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 23.05

Description

General part information

SEAF-50 Series

300 Position Connector High Density Array, Female Surface Mount, Right Angle Gold

Documents

Technical documentation and resources
