MS085R105F030P1A

Active

E-Switch

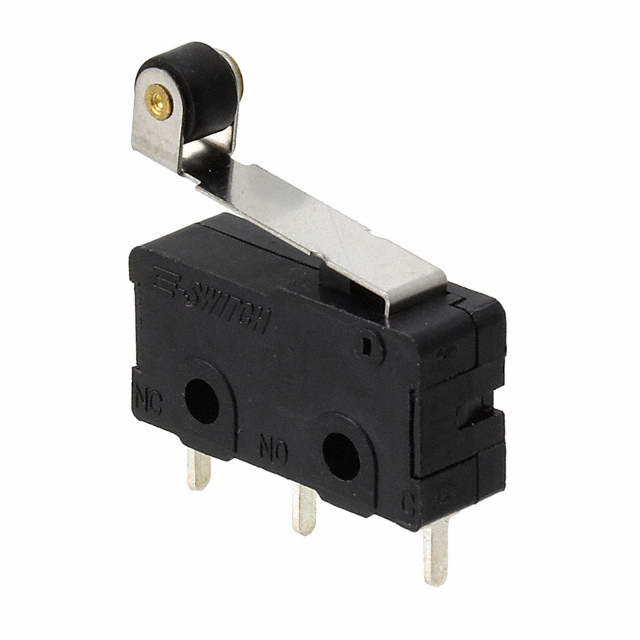

SWITCH SNAP ACT SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

MS085R105F030P1A

Active

E-Switch

SWITCH SNAP ACT SPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS085R105F030P1A

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	30 gf
Operating Position	0.587 in
Operating Position	14.9 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pretravel	4 mm
Pretravel	0.157 in
Release Force	12 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

MS085R Series

Part	Switch Function	Termination Style	Electrical Life	Operating Force	Operating Position	Operating Position	Current Rating (Amps)	Voltage Rating - AC	Mounting Type	Actuator Type	Release Force	Mechanical Life	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Pretravel	Pretravel	Operating Position [custom]	Operating Position [custom]	Pretravel
E-Switch MS085R103F055V2A	On-Mom	PC Pin	50000 Cycles	55 gf	9.5 mm	0.374 in	0.4 VA	20 V	Through Hole Right Angle	Lever Straight	25 gf	1000000 Cycles	20 V	-25 °C	85 °C	SPDT	4.4 mm	0.172 "
E-Switch MS085R101F040S1A	On-Mom	Solder Lug	50000 Cycles	40 gf	9.1 mm	0.358 in	0.4 VA	20 V	Chassis Mount	Lever Straight	20 gf	1000000 Cycles	20 V	-25 °C	85 °C	SPDT	3.6 mm	0.14 in
E-Switch MS085R105F030P1A	On-Mom	PC Pin	50000 Cycles	30 gf	14.9 mm	0.587 in	0.4 VA	20 V	Through Hole	Lever Roller	12 gf	1000000 Cycles	20 V	-25 °C	85 °C	SPDT	4 mm	0.157 in
E-Switch MS085R101F050S1A	On-Mom	Solder Lug	50000 Cycles	50 gf	9.1 mm	0.358 in	0.4 VA	20 V	Chassis Mount	Lever Straight	20 gf	1000000 Cycles	20 V	-25 °C	85 °C	SPDT	3.6 mm	0.14 in
E-Switch MS085R105F030S1C	Off-Mom	Solder Lug	50000 Cycles	30 gf	14.9 mm	0.587 in	0.4 VA	20 V	Chassis Mount	Lever Roller	12 gf	1000000 Cycles	20 V	-25 °C	85 °C	SPST-NO	4 mm	0.157 in
E-Switch MS085R103F015V1A	On-Mom	PC Pin	50000 Cycles	15 gf	9.5 mm	0.374 in	0.4 VA	20 V	Through Hole Right Angle	Lever Straight	6 gf	1000000 Cycles	20 V	-25 °C	85 °C	SPDT	4.4 mm	0.172 "
E-Switch MS085R102F040C1C	Off-Mom	Quick Connect - 0.110" (2.8mm)	50000 Cycles	40 gf	9.1 mm	0.358 in	0.4 VA	20 V	Chassis Mount	Lever Straight	20 gf	1000000 Cycles	20 V	-25 °C	85 °C	SPST-NO	3.8 mm	0.15 in
E-Switch MS085R100F295P1A	On-Mom	PC Pin	50000 Cycles	295 gf			0.4 VA	20 V	Through Hole	Round (Pin Plunger)	55 gf	1000000 Cycles	20 V	-25 °C	85 °C	SPDT	1.1 mm	0.043 "	0.335 in	8.5 mm
E-Switch MS085R104F030S1A	On-Mom	Solder Lug	50000 Cycles	30 gf	10.9 mm	0.429 in	0.4 VA	20 V	Chassis Mount	Lever Simulated Roller	12 gf	1000000 Cycles	20 V	-25 °C	85 °C	SPDT	0.125 in				3.2 mm
E-Switch MS085R104F035C1A	On-Mom	Quick Connect - 0.110" (2.8mm)	50000 Cycles	35 gf	10.9 mm	0.429 in	0.4 VA	20 V	Chassis Mount	Lever Simulated Roller	20 gf	1000000 Cycles	20 V	-25 °C	85 °C	SPDT	0.125 in				3.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.74
		10	$ 2.53
		25	$ 2.37
		50	$ 2.32
		100	$ 1.85
		250	$ 1.74
		500	$ 1.64
		1000	$ 1.53
		5000	$ 1.42

Description

General part information

MS085R Series

Switch SPDT Through Hole

Documents

Technical documentation and resources

No documents available
