MS085R104F035C1A

Active

E-Switch

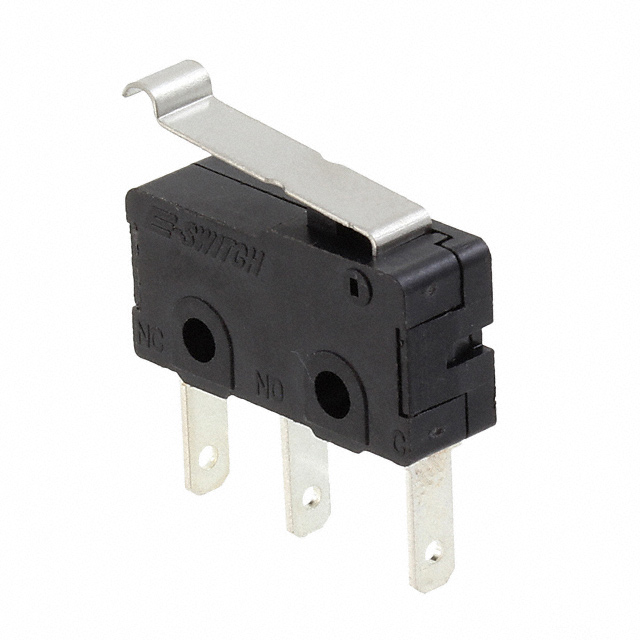

MICROSWITCH SNAP ACTION; SPDT; RCONT MAX: 100MΩ; ON-(ON); POS: 2

Deep-Dive with AI

Search across all available documentation for this part.

MS085R104F035C1A

Active

E-Switch

MICROSWITCH SNAP ACTION; SPDT; RCONT MAX: 100MΩ; ON-(ON); POS: 2

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS085R104F035C1A

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	35 gf
Operating Position	10.9 mm
Operating Position	0.429 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pretravel	3.2 mm
Pretravel	0.125 in
Release Force	20 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

MS0850501 Series

Part	Pretravel	Pretravel	Circuit	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Type	Operating Position	Operating Position	Switch Function	Voltage Rating - AC	Mechanical Life	Release Force	Termination Style	Operating Force	Current Rating (Amps)	Operating Position [custom]	Operating Position [custom]
E-Switch MS0850501F040P1C	3.6 mm	0.14 in	SPST-NO	Through Hole	-25 °C	85 °C	50000 Cycles	Lever Straight	9.1 mm	0.358 in	Off-On	125 V	1000000 Cycles	20 gf	PC Pin	40 gf	5 A
E-Switch MS0850503F010S1A	4.4 mm	0.172 "	SPDT	Chassis Mount	-25 °C	85 °C	50000 Cycles	Lever Straight	9.5 mm	0.374 in	On-Mom	125 V	1000000 Cycles		Solder Lug	10 gf	5 A
E-Switch MS0850503F040S1A	4.4 mm	0.172 "	SPDT	Chassis Mount	-25 °C	85 °C	50000 Cycles	Lever Straight	9.5 mm	0.374 in	On-Mom	125 V	1000000 Cycles	20 gf	Solder Lug	40 gf	5 A
E-Switch MS0850501F025P1C	3.6 mm	0.14 in	SPST-NO	Through Hole	-25 °C	85 °C	50000 Cycles	Lever Straight	9.1 mm	0.358 in	Off-Mom	125 V	1000000 Cycles	12 gf	PC Pin		5 A
E-Switch MS0850505F050V1A	4 mm	0.157 in	SPDT	Through Hole Right Angle	-25 °C	85 °C	50000 Cycles	Lever Straight	14.9 mm	0.587 in	On-On	125 V	1000000 Cycles	20 gf	PC Pin	50 gf	5 A
E-Switch MS0850506F065S1C	4.1 mm	0.161 in	SPST-NO	Chassis Mount	-25 °C	85 °C	50000 Cycles	Leaf Lever	13.9 mm	0.547 in	Off-Mom	125 V	1000000 Cycles	25 gf	Solder Lug	65 gf	5 A
E-Switch MS0850501F045V1A	3.6 mm	0.14 in	SPDT	Through Hole Right Angle	-25 °C	85 °C	50000 Cycles	Lever Straight	9.1 mm	0.358 in	On-Mom	125 V	1000000 Cycles	20 gf	PC Pin		5 A
E-Switch MS0850507F025C1A	5 mm	0.197 in	SPDT	Chassis Mount	-25 °C	85 °C	50000 Cycles	Leaf Lever	12.5 mm	0.492 in	On-Mom	125 V	1000000 Cycles	12 gf	Quick Connect - 0.110" (2.8mm)		5 A
E-Switch MS0850501F025V1A	3.6 mm	0.14 in	SPDT	Through Hole Right Angle	-25 °C	85 °C	50000 Cycles	Lever Straight	9.1 mm	0.358 in	On-Mom	125 V	1000000 Cycles	12 gf	PC Pin		5 A
E-Switch MS0850500F150V1A	1.1 mm	0.043 "	SPDT	Through Hole Right Angle	-25 °C	85 °C	50000 Cycles	Round (Pin Plunger)			On-Mom	125 V	1000000 Cycles		PC Pin	150 gf	5 A	0.335 in	8.5 mm
