MS0850501F025V1A

Active

E-Switch

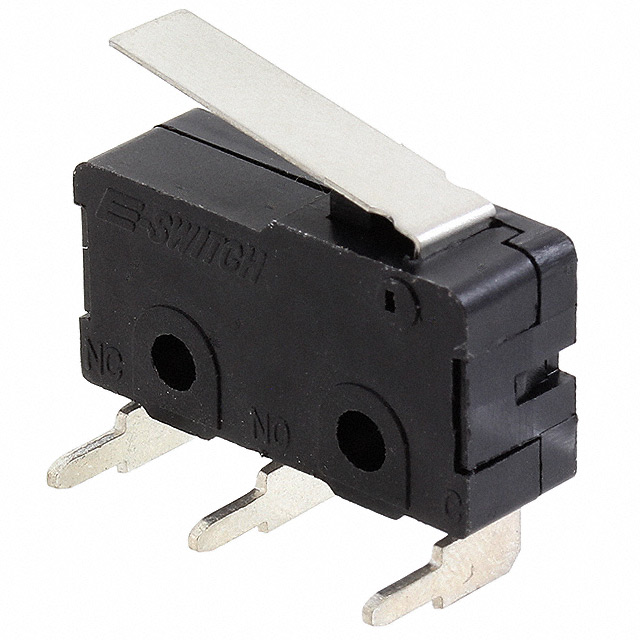

MICROSWITCH SNAP ACTION; 5A/250VAC; SPDT; RCONT MAX: 100MΩ; POS: 2

Deep-Dive with AI

Search across all available documentation for this part.

MS0850501F025V1A

Active

E-Switch

MICROSWITCH SNAP ACTION; 5A/250VAC; SPDT; RCONT MAX: 100MΩ; POS: 2

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS0850501F025V1A

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Position	9.1 mm
Operating Position	0.358 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pretravel	3.6 mm
Pretravel	0.14 in
Release Force	12 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V

MS0850501 Series

Part	Pretravel	Pretravel	Circuit	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Type	Operating Position	Operating Position	Switch Function	Voltage Rating - AC	Mechanical Life	Release Force	Termination Style	Operating Force	Current Rating (Amps)	Operating Position [custom]	Operating Position [custom]
E-Switch MS0850501F040P1C	3.6 mm	0.14 in	SPST-NO	Through Hole	-25 °C	85 °C	50000 Cycles	Lever Straight	9.1 mm	0.358 in	Off-On	125 V	1000000 Cycles	20 gf	PC Pin	40 gf	5 A
E-Switch MS0850503F010S1A	4.4 mm	0.172 "	SPDT	Chassis Mount	-25 °C	85 °C	50000 Cycles	Lever Straight	9.5 mm	0.374 in	On-Mom	125 V	1000000 Cycles		Solder Lug	10 gf	5 A
E-Switch MS0850503F040S1A	4.4 mm	0.172 "	SPDT	Chassis Mount	-25 °C	85 °C	50000 Cycles	Lever Straight	9.5 mm	0.374 in	On-Mom	125 V	1000000 Cycles	20 gf	Solder Lug	40 gf	5 A
E-Switch MS0850501F025P1C	3.6 mm	0.14 in	SPST-NO	Through Hole	-25 °C	85 °C	50000 Cycles	Lever Straight	9.1 mm	0.358 in	Off-Mom	125 V	1000000 Cycles	12 gf	PC Pin		5 A
E-Switch MS0850505F050V1A	4 mm	0.157 in	SPDT	Through Hole Right Angle	-25 °C	85 °C	50000 Cycles	Lever Straight	14.9 mm	0.587 in	On-On	125 V	1000000 Cycles	20 gf	PC Pin	50 gf	5 A
E-Switch MS0850506F065S1C	4.1 mm	0.161 in	SPST-NO	Chassis Mount	-25 °C	85 °C	50000 Cycles	Leaf Lever	13.9 mm	0.547 in	Off-Mom	125 V	1000000 Cycles	25 gf	Solder Lug	65 gf	5 A
E-Switch MS0850501F045V1A	3.6 mm	0.14 in	SPDT	Through Hole Right Angle	-25 °C	85 °C	50000 Cycles	Lever Straight	9.1 mm	0.358 in	On-Mom	125 V	1000000 Cycles	20 gf	PC Pin		5 A
E-Switch MS0850507F025C1A	5 mm	0.197 in	SPDT	Chassis Mount	-25 °C	85 °C	50000 Cycles	Leaf Lever	12.5 mm	0.492 in	On-Mom	125 V	1000000 Cycles	12 gf	Quick Connect - 0.110" (2.8mm)		5 A
E-Switch MS0850501F025V1A	3.6 mm	0.14 in	SPDT	Through Hole Right Angle	-25 °C	85 °C	50000 Cycles	Lever Straight	9.1 mm	0.358 in	On-Mom	125 V	1000000 Cycles	12 gf	PC Pin		5 A
E-Switch MS0850500F150V1A	1.1 mm	0.043 "	SPDT	Through Hole Right Angle	-25 °C	85 °C	50000 Cycles	Round (Pin Plunger)			On-Mom	125 V	1000000 Cycles		PC Pin	150 gf	5 A	0.335 in	8.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	540	$ 0.74
TME	N/A	540	$ 1.09

Description

General part information

MS0850501 Series

Switch SPDT Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
