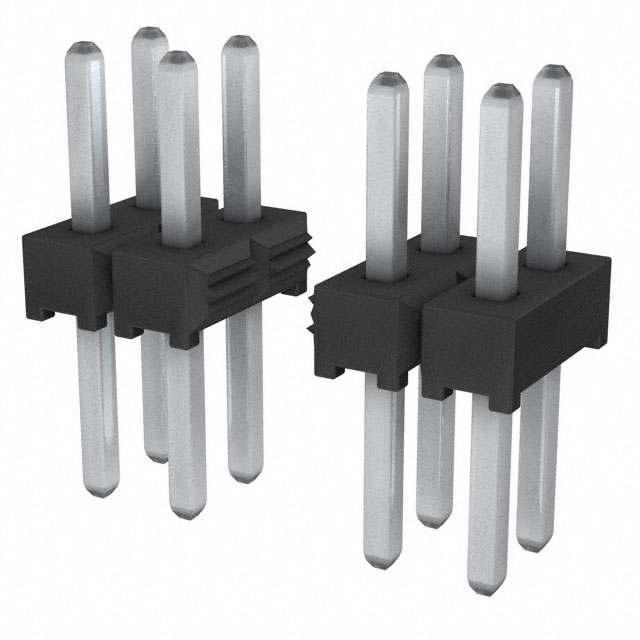

TMM-127-01-T-D

Active

Samtec Inc.

CONN HEADER VERT 54POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TMM_TH Double Row Footprint

TMM-127-01-T-D

Active

Samtec Inc.

CONN HEADER VERT 54POS 2MM

Deep-Dive with AI

DocumentsDatasheet TMM_TH Double Row Footprint

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMM-127-01-T-D

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.2 mm
Overall Contact Length	0.323 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TMM-127 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Shape	Contact Length - Mating	Contact Length - Mating	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Fastening Type	Mounting Type	Insulation Material	Number of Positions Loaded	Contact Material	Number of Positions	Material Flammability Rating	Contact Finish - Mating	Number of Rows	Contact Finish - Post	Shrouding	Contact Type	Insulation Color	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
Samtec Inc. TMM-127-01-G-S-SM	-55 °C	125 °C	3.2 A	Square	3.2 mm	0.126 "	Board to Board Cable	3 µin	0.076 µm	0.51 µm	20 µin	1.5 mm	0.059 "	Push-Pull	Surface Mount	Liquid Crystal Polymer (LCP)	All	Phosphor Bronze	27	UL94 V-0	Gold	1	Gold	Unshrouded	Male Pin	Black	Header	0.079 in	2 mm	Solder
Samtec Inc. TMM-127-01-F-D-RA	-55 °C	125 °C	3.2 A	Square	3.2 mm	0.126 "	Board to Board Cable			0.076 µm	3 µin	3.94 mm	0.155 in	Push-Pull	Through Hole Right Angle	Liquid Crystal Polymer (LCP)	All	Phosphor Bronze	54		Gold	2	Tin	Unshrouded	Male Pin	Black	Header	0.079 in	2 mm	Solder	0.12 in	3.05 mm	0.079 in	2 mm
Samtec Inc. TMM-127-01-LM-D-RA	-55 °C	125 °C	3.2 A	Square	3.2 mm	0.126 "	Board to Board Cable			0.25 çm	10 çin	3.94 mm	0.155 in	Push-Pull	Through Hole Right Angle	Liquid Crystal Polymer (LCP)	All	Phosphor Bronze	54		Gold	2	Tin	Unshrouded	Male Pin	Black	Header	0.079 in	2 mm	Solder	0.12 in	3.05 mm	0.079 in	2 mm
Samtec Inc. TMM-127-01-T-D	-55 °C	105 ░C	3.2 A	Square	3.2 mm	0.126 "	Board to Board Cable					1.5 mm	0.059 "	Push-Pull	Through Hole	Liquid Crystal Polymer (LCP)	All	Phosphor Bronze	54			2	Tin	Unshrouded	Male Pin	Black	Header	0.079 in	2 mm	Solder			0.079 in	2 mm	3.5 mm	0.138 in	8.2 mm	0.323 in
Samtec Inc. TMM-127-01-G-D-SM	-55 °C	125 °C	3.2 A	Square	3.2 mm	0.126 "	Board to Board Cable	3 µin	0.076 µm	0.51 µm	20 µin	1.5 mm	0.059 "	Push-Pull	Surface Mount	Liquid Crystal Polymer (LCP)	All	Phosphor Bronze	54	UL94 V-0	Gold	2	Gold	Unshrouded	Male Pin	Black	Header	0.079 in	2 mm	Solder			0.079 in	2 mm
Samtec Inc. TMM-127-01-S-D-RA	-55 °C	125 °C	3.2 A	Square	3.2 mm	0.126 "	Board to Board Cable			0.76 Ám	30 Áin	3.94 mm	0.155 in	Push-Pull	Through Hole Right Angle	Liquid Crystal Polymer (LCP)	All	Phosphor Bronze	54		Gold	2	Tin	Unshrouded	Male Pin	Black	Header	0.079 in	2 mm	Solder	0.12 in	3.05 mm	0.079 in	2 mm
Samtec Inc. TMM-127-03-G-D	-55 °C	125 °C	3.2 A	Square	4 mm	0.157 in	Board to Board Cable	3 µin	0.076 µm	0.51 µm	20 µin	1.5 mm	0.059 "	Push-Pull	Through Hole	Liquid Crystal Polymer (LCP)	All	Phosphor Bronze	54		Gold	2	Gold	Unshrouded	Male Pin	Black	Header	0.079 in	2 mm	Solder	0.106 in	2.69 mm	0.079 in	2 mm			8.2 mm	0.323 in
Samtec Inc. TMM-127-03-L-S	-55 °C	125 °C	3.2 A	Square	4 mm	0.157 in	Board to Board Cable			0.25 çm	10 çin	1.5 mm	0.059 "	Push-Pull	Through Hole	Liquid Crystal Polymer (LCP)	All	Phosphor Bronze	27		Gold	1	Tin	Unshrouded	Male Pin	Black	Header	0.079 in	2 mm	Solder	0.106 in	2.69 mm					8.2 mm	0.323 in
Samtec Inc. TMM-127-01-G-D-RA-007	-55 °C	125 °C	3.2 A	Square	3.2 mm	0.126 "	Board to Board Cable	3 µin	0.076 µm	0.51 µm	20 µin	3.94 mm	0.155 in	Push-Pull	Through Hole Right Angle	Liquid Crystal Polymer (LCP)		Phosphor Bronze	54		Gold	2	Gold	Unshrouded	Male Pin	Black	Header	0.079 in	2 mm	Solder	0.12 in	3.05 mm	0.079 in	2 mm
Samtec Inc. TMM-127-01-L-S	-55 °C	125 °C	3.2 A	Square	3.2 mm	0.126 "	Board to Board Cable			0.25 çm	10 çin	1.5 mm	0.059 "	Push-Pull	Through Hole	Liquid Crystal Polymer (LCP)	All	Phosphor Bronze	27		Gold	1	Tin	Unshrouded	Male Pin	Black	Header	0.079 in	2 mm	Solder					3.5 mm	0.138 in	8.2 mm	0.323 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.97
		10	$ 4.51
		100	$ 3.98
		500	$ 3.38
		1000	$ 2.88

Description

General part information

TMM-127 Series

Connector Header Through Hole 54 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

TMM_TH Double Row Footprint

Datasheet
