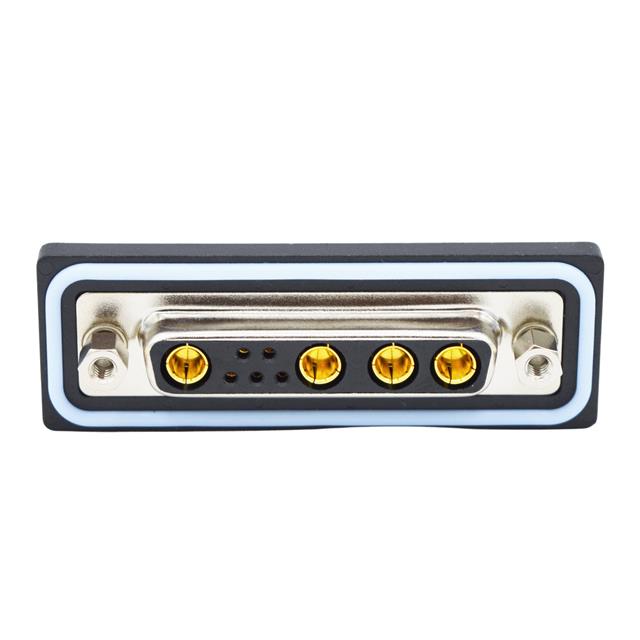

Specification	CDFR9W4213L411

Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Brass
Contact Type	Signal, Power
Dielectric Material	Polybutylene Terephthalate (PBT)
Finish	Nickel Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions (Normal)	5
Number of Positions (Power)	4
Number of Positions (Total)	9
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Part Code	9W4
Shell Material	Steel
Shell Size	3
Termination	Solder

CDFR9W4 Series

Part	Connector Type	Shell Size	Connector Layout	Part Code	Mounting Type	Material Flammability Rating	Connector Style	Flange Feature	Termination	Contact Finish Thickness	Number of Positions (Power)	Number of Positions (Normal)	Number of Positions (Total)	Contact Finish	Features	Contact Type	Number of Rows	Shell Material	Finish	Ingress Protection Description	Ingress Protection IP Rating	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Form	Contact Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
NorComp Inc. CDFR9W4213L262	Female Sockets Receptacle	3	B DB	9W4	Panel Mount Right Angle Through Hole	UL94 V-0	Combo D-Sub	Female Screwlock (4-40) Mating Side	Solder	30 µin	4	5	9	Gold	Board Lock Mounting Brackets	Power Signal	2	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Machined	Brass
NorComp Inc. CDFR9W4213L211	Female Sockets Receptacle	3	B DB	9W4	Panel Mount Right Angle Through Hole	UL94 V-0	Combo D-Sub	Female Screwlock (4-40) Mating Side	Solder	0	4	5	9	Gold		Power Signal	2	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Machined	Brass	Flash	Flash
NorComp Inc. CDFR9W4213L461	Female Sockets Receptacle	3	B DB	9W4	Panel Mount Right Angle Through Hole	UL94 V-0	Combo D-Sub	Female Screwlock (4-40) Mating Side	Solder	0	4	5	9	Gold	Board Lock Mounting Brackets	Power Signal	2	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Machined	Brass	Flash	Flash
NorComp Inc. CDFR9W4213L411	Female Sockets Receptacle	3	B DB	9W4	Panel Mount Right Angle Through Hole	UL94 V-0	Combo D-Sub	Female Screwlock (4-40) Mating Side	Solder	0	4	5	9	Gold		Power Signal	2	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Machined	Brass	Flash	Flash
NorComp Inc. CDFR9W4113L261	Male Pins Plug	3	B DB	9W4	Panel Mount Right Angle Through Hole	UL94 V-0	Combo D-Sub	Female Screwlock (4-40) Mating Side	Solder	0	4	5	9	Gold	Board Lock Grounding Indents Mounting Brackets	Power Signal	2	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Machined	Brass	Flash	Flash
NorComp Inc. CDFR9W4113L212	Male Pins Plug	3	B DB	9W4	Panel Mount Right Angle Through Hole	UL94 V-0	Combo D-Sub	Female Screwlock (4-40) Mating Side	Solder	30 µin	4	5	9	Gold	Grounding Indents	Power Signal	2	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Machined	Brass
NorComp Inc. CDFR9W4113L211	Male Pins Plug	3	B DB	9W4	Panel Mount Right Angle Through Hole	UL94 V-0	Combo D-Sub	Female Screwlock (4-40) Mating Side	Solder	0	4	5	9	Gold	Grounding Indents	Power Signal	2	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Machined	Brass	Flash	Flash
NorComp Inc. CDFR9W4213L462	Female Sockets Receptacle	3	B DB	9W4	Panel Mount Right Angle Through Hole	UL94 V-0	Combo D-Sub	Female Screwlock (4-40) Mating Side	Solder	30 µin	4	5	9	Gold	Board Lock Mounting Brackets	Power Signal	2	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Machined	Brass
NorComp Inc. CDFR9W4213L212	Female Sockets Receptacle	3	B DB	9W4	Panel Mount Right Angle Through Hole	UL94 V-0	Combo D-Sub	Female Screwlock (4-40) Mating Side	Solder	30 µin	4	5	9	Gold		Power Signal	2	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Machined	Brass
NorComp Inc. CDFR9W4213L412	Female Sockets Receptacle	3	B DB	9W4	Panel Mount Right Angle Through Hole	UL94 V-0	Combo D-Sub	Female Screwlock (4-40) Mating Side	Solder	30 µin	4	5	9	Gold		Power Signal	2	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Machined	Brass
