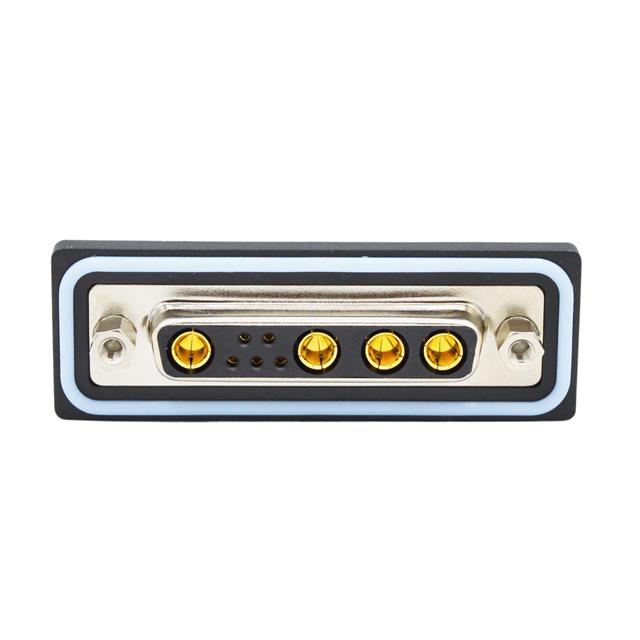

CDFR9W4213L461

Active

MH Connectors

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDFR9W4213L461

Active

MH Connectors

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFR9W4213L461

Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal and Power
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Board Lock, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 9W4
Termination	Solder

CDFR9W4 Series

Part	Contact Material	Contact Finish	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Termination	Material Flammability Rating	Number of Rows	Ingress Protection	Shell Size, Connector Layout	Mounting Type	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Connector Style	Flange Feature	Features	Contact Finish Thickness
MH Connectors CDFR9W4213L262	Brass	Gold	Signal and Power	4	5	9	-25 °C	85 °C	Nickel Plated Steel	Solder	UL94 V-0	2	IP67 - Dust Tight Waterproof	3 (DB B) - 9W4	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin	Receptacle Female Sockets	Combo D-Sub	Female Screwlock (4-40) Mating Side	Board Lock Mounting Brackets
MH Connectors CDFR9W4213L211	Brass	Gold	Signal and Power	4	5	9	-25 °C	85 °C	Nickel Plated Steel	Solder	UL94 V-0	2	IP67 - Dust Tight Waterproof	3 (DB B) - 9W4	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)			Receptacle Female Sockets	Combo D-Sub	Female Screwlock (4-40) Mating Side		Flash
MH Connectors CDFR9W4213L461	Brass	Gold	Signal and Power	4	5	9	-25 °C	85 °C	Nickel Plated Steel	Solder	UL94 V-0	2	IP67 - Dust Tight Waterproof	3 (DB B) - 9W4	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)			Receptacle Female Sockets	Combo D-Sub	Female Screwlock (4-40) Mating Side	Board Lock Mounting Brackets	Flash
MH Connectors CDFR9W4213L411	Brass	Gold	Signal and Power	4	5	9	-25 °C	85 °C	Nickel Plated Steel	Solder	UL94 V-0	2	IP67 - Dust Tight Waterproof	3 (DB B) - 9W4	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)			Receptacle Female Sockets	Combo D-Sub	Female Screwlock (4-40) Mating Side		Flash
MH Connectors CDFR9W4113L261	Brass	Gold	Signal and Power	4	5	9	-25 °C	85 °C	Nickel Plated Steel	Solder	UL94 V-0	2	IP67 - Dust Tight Waterproof	3 (DB B) - 9W4	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)			Male Pins Plug	Combo D-Sub	Female Screwlock (4-40) Mating Side	Board Lock Grounding Indents Mounting Brackets	Flash
MH Connectors CDFR9W4113L212	Brass	Gold	Signal and Power	4	5	9	-25 °C	85 °C	Nickel Plated Steel	Solder	UL94 V-0	2	IP67 - Dust Tight Waterproof	3 (DB B) - 9W4	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin	Male Pins Plug	Combo D-Sub	Female Screwlock (4-40) Mating Side	Grounding Indents
MH Connectors CDFR9W4113L211	Brass	Gold	Signal and Power	4	5	9	-25 °C	85 °C	Nickel Plated Steel	Solder	UL94 V-0	2	IP67 - Dust Tight Waterproof	3 (DB B) - 9W4	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)			Male Pins Plug	Combo D-Sub	Female Screwlock (4-40) Mating Side	Grounding Indents	Flash
MH Connectors CDFR9W4213L212	Brass	Gold	Signal and Power	4	5	9	-25 °C	85 °C	Nickel Plated Steel	Solder	UL94 V-0	2	IP67 - Dust Tight Waterproof	3 (DB B) - 9W4	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin	Receptacle Female Sockets	Combo D-Sub	Female Screwlock (4-40) Mating Side
MH Connectors CDFR9W4113L411	Brass	Gold	Signal and Power	4	5	9	-25 °C	85 °C	Nickel Plated Steel	Solder	UL94 V-0	2	IP67 - Dust Tight Waterproof	3 (DB B) - 9W4	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)			Male Pins Plug	Combo D-Sub	Female Screwlock (4-40) Mating Side	Grounding Indents	Flash
MH Connectors CDFR9W4113L461	Brass	Gold	Signal and Power	4	5	9	-25 °C	85 °C	Nickel Plated Steel	Solder	UL94 V-0	2	IP67 - Dust Tight Waterproof	3 (DB B) - 9W4	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)			Male Pins Plug	Combo D-Sub	Female Screwlock (4-40) Mating Side	Board Lock Grounding Indents Mounting Brackets	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 25.40
		10	$ 19.58
		25	$ 17.73

Description

General part information

CDFR9W4 Series

9 (5 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
