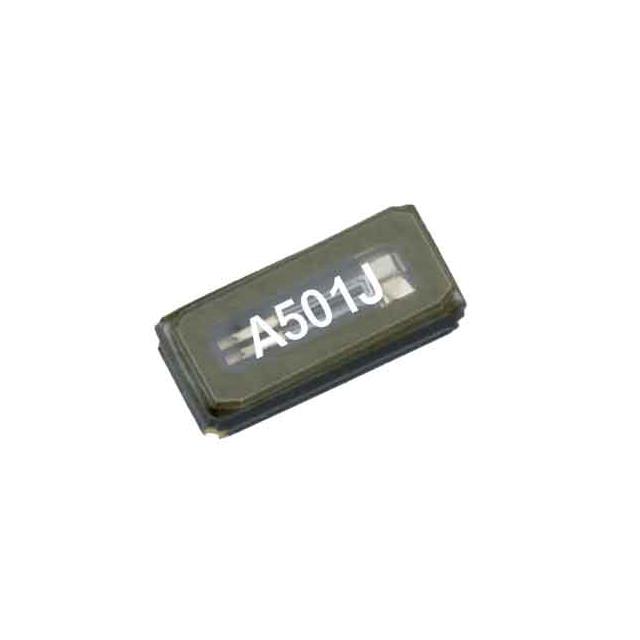

FC-135 32.7680K-60AA70KDB

Active

EPSON

FC-135 32.7680K-60AA70KDB: XTL K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FC-135 32.7680K-60AA70KDB

Active

EPSON

FC-135 32.7680K-60AA70KDB: XTL K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.95

Description

General part information

FC-135 Series

32.768 kHz Crystal 6pF 70 kOhms 2-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FC-135 32.7680K-60AA70KDB	FC-135 Series

ESR (Equivalent Series Resistance)	70 kOhms	70 kOhms
Frequency	32.768 kHz	32.768 kHz
Frequency Tolerance	-	20 ppm
Height - Seated (Max) [Max] [z]	0.035 "	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm	0.9 mm
Load Capacitance	6 pF	6 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	1.5 mm	1.5 mm
Size / Dimension [y]	0.059 "	0.059 "
Supplier Device Package	-	1.5
Supplier Device Package	-	2-SMD
Supplier Device Package	-	3.2
Type	kHz Crystal (Tuning Fork)	kHz Crystal (Tuning Fork)

FC-135 Series

FC-135 32.7680K-60AA70KD3: XTL K

Part	Type	Operating Mode	Frequency	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Load Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Frequency Tolerance
EPSON FC-135 32.7680K-60AA70KD3	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount	6 pF	0.035 "	0.9 mm
EPSON FC-135 32.7680K-60AA70KDB	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount	6 pF	0.035 "	0.9 mm
EPSON FC-135 32.7680KA-AJ3	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount		0.035 "	0.9 mm
EPSON FC-135 32.7680KA-E5	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount	6 pF	0.035 "	0.9 mm	1.5	2-SMD	3.2	20 ppm
EPSON FC-135 32.7680KA-AJ5	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount		0.035 "	0.9 mm
EPSON FC-135 32.7680KA-K5	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount		0.035 "	0.9 mm
EPSON FC-135 32.7680KF-AC3	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount		0.035 "	0.9 mm
EPSON FC-135 32.7680K-60AA70KD5	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount	6 pF	0.035 "	0.9 mm
