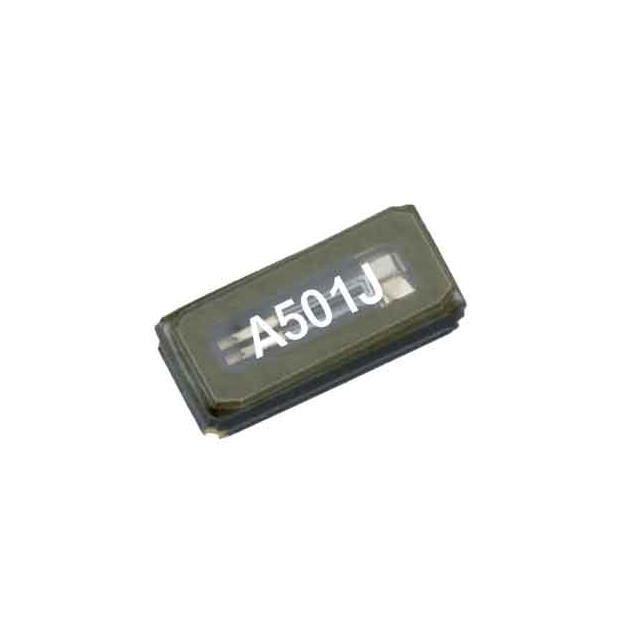

FC-135 32.7680KA-E5

Active

EPSON

CRYSTAL 32.768KHZ 6PF SMD

Deep-Dive with AI

DocumentsDatasheet Product Configuration Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FC-135 32.7680KA-E5	FC-135 Series

ESR (Equivalent Series Resistance)	70 kOhms	70 kOhms
Frequency	32.768 kHz	32.768 kHz
Frequency Tolerance	20 ppm	20 ppm
Height - Seated (Max) [Max] [z]	0.035 "	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm	0.9 mm
Load Capacitance	6 pF	6 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	1.5 mm	1.5 mm
Size / Dimension [y]	0.059 "	0.059 "
Supplier Device Package	2-SMD	2-SMD
Supplier Device Package [x]	3.2	3.2
Supplier Device Package [y]	1.5	1.5
Type	kHz Crystal (Tuning Fork)	kHz Crystal (Tuning Fork)

FC-135 Series

FC-135 32.7680K-60AA70KD3: XTL K

Part	Type	Operating Mode	Frequency	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Load Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Frequency Tolerance
EPSON FC-135 32.7680K-60AA70KD3	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount	6 pF	0.035 "	0.9 mm
EPSON FC-135 32.7680K-60AA70KDB	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount	6 pF	0.035 "	0.9 mm
EPSON FC-135 32.7680KA-AJ3	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount		0.035 "	0.9 mm
EPSON FC-135 32.7680KA-E5	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount	6 pF	0.035 "	0.9 mm	1.5	2-SMD	3.2	20 ppm
EPSON FC-135 32.7680KA-AJ5	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount		0.035 "	0.9 mm
EPSON FC-135 32.7680KA-K5	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount		0.035 "	0.9 mm
EPSON FC-135 32.7680KF-AC3	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount		0.035 "	0.9 mm
EPSON FC-135 32.7680K-60AA70KD5	kHz Crystal (Tuning Fork)	Fundamental	32.768 kHz	70 kOhms	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 °C	2-SMD, No Lead	Surface Mount	6 pF	0.035 "	0.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.30

Description

General part information

FC-135 Series

32.768 kHz ±20ppm Crystal 6pF 70 kOhms 2-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Product Configuration Guide

Datasheet
