50M080125P010
ActiveEssentra Access Solutions

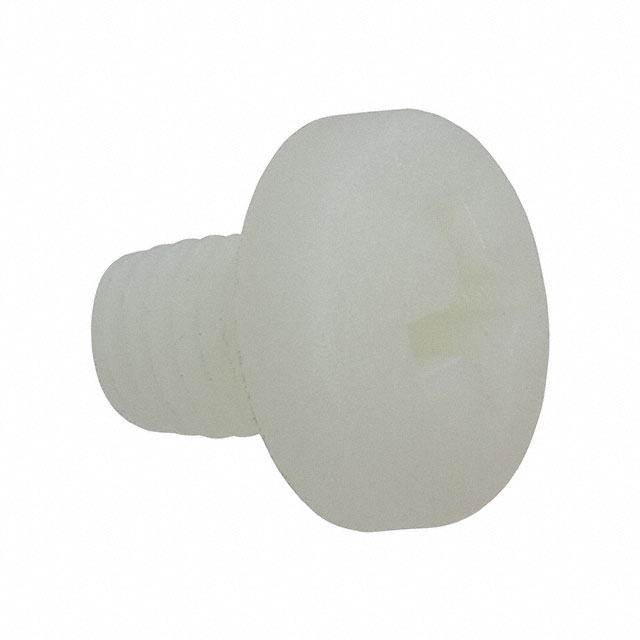

PAN PHILLIPS SCREW, NATURAL, NYL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 50M080125P010 |
|---|---|
| Drive Type | Phillips |
| Head Diameter [diameter] | 0.63 in |
| Head Diameter [diameter] | 16 mm |
| Head Height [z] | 5.8 mm |
| Head Height [z] | 0.228 in |
| Length - Below Head [x] | 10 mm |
| Length - Below Head [x] | 0.394 in |
| Length - Overall [x] | 15.8 mm |
| Length - Overall [x] | 0.622 in |
| Material | Nylon |
| Screw Head Type | Pan Head |
| Thread Size | M8x1.25 |
| Type | Machine Screw |
50M080125 Series
| Part | Material | Screw Head Type | Head Diameter [diameter] | Head Diameter [diameter] | Thread Size | Length - Overall [x] | Length - Overall [x] | Drive Type | Type | Length - Below Head | Length - Below Head | Head Height [z] | Head Height [z] | Head Height | Head Height | Length - Below Head [x] | Length - Below Head [x] | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Essentra Access Solutions | Nylon | Hex Head | 13 mm | 0.512 in | M8x1.25 | 36 mm | 1.417 in | Hex Socket | Bolt | |||||||||
Essentra Access Solutions | Nylon | Flat Head | 17.3 mm | 0.681 " | M8x1.25 | 20 mm | 0.787 " | Phillips | Machine Screw | 0.606 " | 15.4 mm | 0.181 in | 4.6 mm | |||||
Essentra Access Solutions | Nylon | Pan Head | 16 mm | 0.63 in | M8x1.25 | 21.8 mm | 0.858 in | Phillips | Machine Screw | 0.63 in | 16 mm | 0.228 in | 5.8 mm | |||||
Essentra Access Solutions | Nylon | Pan Head | 16 mm | 0.63 in | M8x1.25 | 41 mm | 1.614 in | Phillips | Machine Screw | 0.236 in | 6 mm | |||||||
Essentra Access Solutions | Nylon | Hex Head | 13 mm | 0.512 in | M8x1.25 | 16 mm | 0.63 " | Slotted | Bolt | 10 mm | 0.394 in | |||||||
Essentra Access Solutions | Nylon | 5.1 mm | 0.201 in | M8x1.25 | 1.472 in | Slotted | Set Screw | 37.4 mm | ||||||||||
Essentra Access Solutions | Nylon | Hex Head | 13 mm | 0.512 in | M8x1.25 | 22 mm | 0.866 " | Slotted | Bolt | 0.63 in | 16 mm | |||||||
Essentra Access Solutions | Nylon | Hex Head | 13 mm | 0.512 in | M8x1.25 | 46 mm | 1.811 in | Hex Socket | Bolt | 40 mm | 1.575 " | |||||||
Essentra Access Solutions | Nylon | Pan Head | 16 mm | 0.63 in | M8x1.25 | 15.8 mm | 0.622 in | Phillips | Machine Screw | 0.228 in | 5.8 mm | 10 mm | 0.394 in | |||||
Essentra Access Solutions | Nylon | Cheese Head | 13 mm | 0.512 in | M8x1.25 | 55 mm | 2.165 in | Slotted | Bolt | 0.197 in | 5 mm | 50 mm | 1.969 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.27 | |
| 5 | $ 0.24 | |||
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.14 | |||
Description
General part information
50M080125 Series
M8x1.25 Pan Head Machine Screw Phillips Drive Nylon
