50M080125P016

Active

Essentra Access Solutions

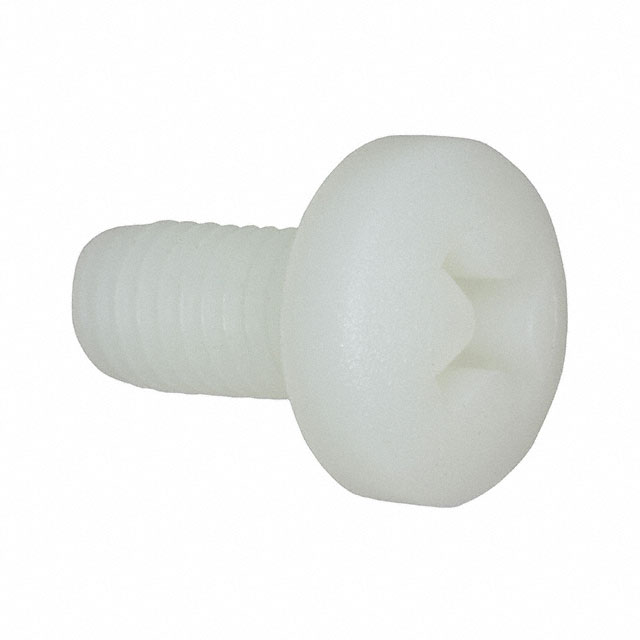

PAN PHILLIPS SCREW, NATURAL, NYL

Search across all available documentation for this part.

Active

Essentra Access Solutions

PAN PHILLIPS SCREW, NATURAL, NYL

Technical Specifications

Parameters and characteristics for this part

Part	Material	Screw Head Type	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Length - Overall [x]	Length - Overall [x]	Drive Type	Type	Length - Below Head	Length - Below Head	Head Height [z]	Head Height [z]	Head Height	Head Height	Length - Below Head [x]	Length - Below Head [x]	Length - Overall
Essentra Access Solutions 50M080125J030	Nylon	Hex Head	13 mm	0.512 in	M8x1.25	36 mm	1.417 in	Hex Socket	Bolt
Essentra Access Solutions 50M080125I020	Nylon	Flat Head	17.3 mm	0.681 "	M8x1.25	20 mm	0.787 "	Phillips	Machine Screw	0.606 "	15.4 mm	0.181 in	4.6 mm
Essentra Access Solutions 50M080125P016	Nylon	Pan Head	16 mm	0.63 in	M8x1.25	21.8 mm	0.858 in	Phillips	Machine Screw	0.63 in	16 mm	0.228 in	5.8 mm
Essentra Access Solutions 50M080125G035	Nylon	Pan Head	16 mm	0.63 in	M8x1.25	41 mm	1.614 in	Phillips	Machine Screw					0.236 in	6 mm
Essentra Access Solutions 50M080125K010	Nylon	Hex Head	13 mm	0.512 in	M8x1.25	16 mm	0.63 "	Slotted	Bolt							10 mm	0.394 in
Essentra Access Solutions 50M080125R035	Nylon		5.1 mm	0.201 in	M8x1.25		1.472 in	Slotted	Set Screw									37.4 mm
Essentra Access Solutions 50M080125K016	Nylon	Hex Head	13 mm	0.512 in	M8x1.25	22 mm	0.866 "	Slotted	Bolt	0.63 in	16 mm
Essentra Access Solutions 50M080125J040	Nylon	Hex Head	13 mm	0.512 in	M8x1.25	46 mm	1.811 in	Hex Socket	Bolt							40 mm	1.575 "
Essentra Access Solutions 50M080125P010	Nylon	Pan Head	16 mm	0.63 in	M8x1.25	15.8 mm	0.622 in	Phillips	Machine Screw			0.228 in	5.8 mm			10 mm	0.394 in
Essentra Access Solutions 50M080125D050	Nylon	Cheese Head	13 mm	0.512 in	M8x1.25	55 mm	2.165 in	Slotted	Bolt					0.197 in	5 mm	50 mm	1.969 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

M8x1.25 Pan Head Machine Screw Phillips Drive Nylon
