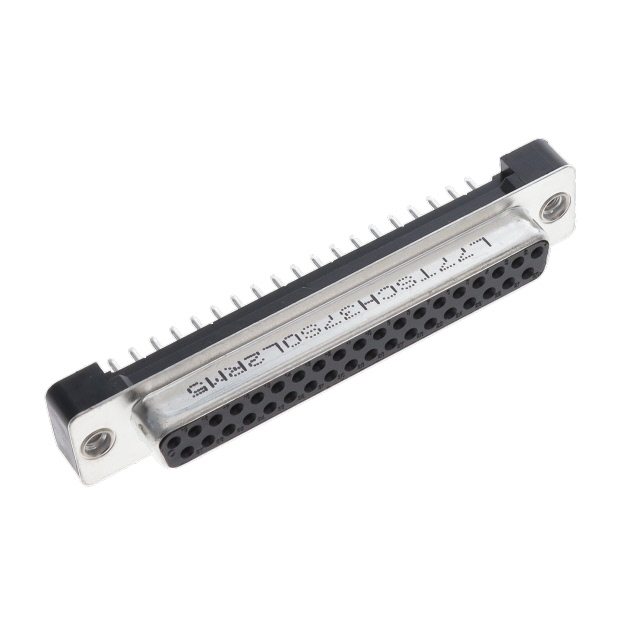

L77TSCH37SOL2RM5
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 37POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L77TSCH37SOL2RM5
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 37POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L77TSCH37SOL2RM5 |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.39 | |
| 10 | $ 2.03 | |||
| 25 | $ 1.90 | |||
| 50 | $ 1.81 | |||
| 120 | $ 1.70 | |||
| 360 | $ 1.57 | |||
| 600 | $ 1.52 | |||
| 1080 | $ 1.46 | |||
| 2520 | $ 1.37 | |||
Description
General part information
L77TSCH37 Series
37 Position D-Sub Receptacle, Female Sockets Connector
