L77TSCH37SOL2RM8
ActiveAmphenol ICC (Commercial Products)

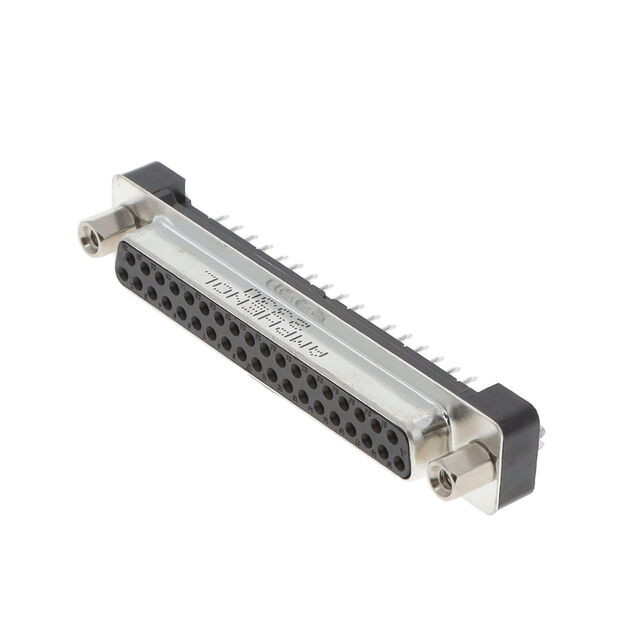

CONN D-SUB RCPT 37POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L77TSCH37SOL2RM8
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 37POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L77TSCH37SOL2RM8 |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.81 | |
| 10 | $ 2.55 | |||
| 36 | $ 2.41 | |||
| 72 | $ 2.36 | |||
| 108 | $ 2.24 | |||
| 252 | $ 1.96 | |||
| 468 | $ 1.91 | |||
| 972 | $ 1.63 | |||
| 2412 | $ 1.52 | |||
Description
General part information
L77TSCH37 Series
37 Position D-Sub Receptacle, Female Sockets Connector
