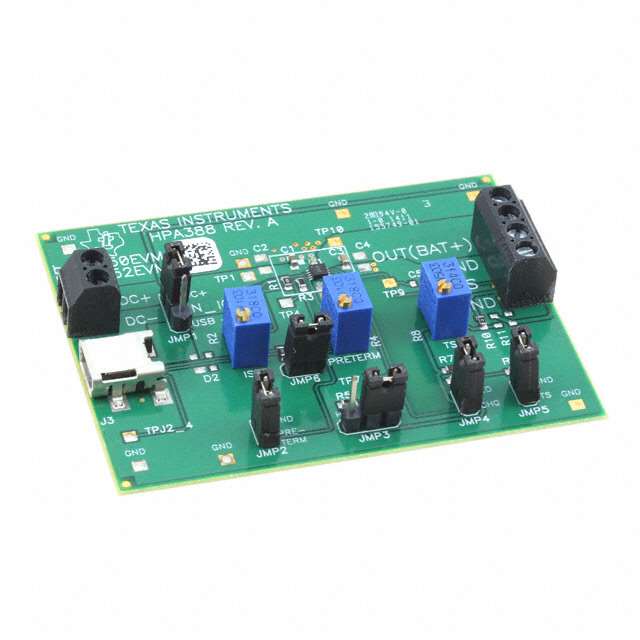

Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24050EVM | BQ24050 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 800 mA |
| Contents | Board(s) | Board(s) |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Short Circuit, Over Temperature, Over Voltage |
| Function | Battery Charger | Battery Charger |
| Interface | - | USB |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 0 °C |
| Operating Temperature | - | 125 ¯C |
| Package / Case | - | 10-WFDFN Exposed Pad |
| Primary Attributes | Li-Ion (1 Cell) | Li-Ion (1 Cell) |
| Programmable Features | - | Current |
| Supplier Device Package | - | 10-WSON (2x2) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24050 | BQ24050 |
| Voltage - Supply (Max) | - | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.80 | |
BQ24050 Series
1-cell, 1-A, Li-ion linear battery charger with automatic AC/USB detection
| Part | Interface | Number of Cells | Battery Chemistry | Mounting Type | Fault Protection | Voltage - Supply (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Battery Pack Voltage | Programmable Features | Current - Charging | Supplier Device Package | Charge Current - Max [Max] | Package / Case | Primary Attributes | Function | Embedded | Utilized IC / Part | Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24050DSQT | USB | 1 | Lithium Ion/Polymer | Surface Mount | Over Temperature, Over Voltage, Short Circuit | 28 V | 0 °C | 125 ¯C | 4.2 V | Current | Constant - Programmable | 10-WSON (2x2) | 800 mA | 10-WFDFN Exposed Pad | ||||||
Texas Instruments BQ24050EVM | Li-Ion (1 Cell) | Battery Charger | BQ24050 | Board(s) | Power Management | |||||||||||||||
Texas Instruments BQ24050DSQR | USB | 1 | Lithium Ion/Polymer | Surface Mount | Over Temperature, Over Voltage, Short Circuit | 28 V | 0 °C | 125 ¯C | 4.2 V | Current | Constant - Programmable | 10-WSON (2x2) | 800 mA | 10-WFDFN Exposed Pad |
Description
General part information
BQ24050 Series
The BQ2405x series of devices are highly integrated Li-Ion and Li-Pol linear chargers devices targeted at space-limited portable applications. The devices operate from either a USB port or AC adapter. The high-input voltage range with input overvoltage protection supports low-cost unregulated adapters.
The BQ2405x has a single power output that charges the battery. A system load can be placed in parallel with the battery as long as the average system load does not keep the battery from charging fully during the 10-hour safety timer.
The battery is charged in three phases: conditioning, constant current, and constant voltage. In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold is exceeded.
