25-7035

Active

Cinch Connectivity Solutions AIM-Cambridge

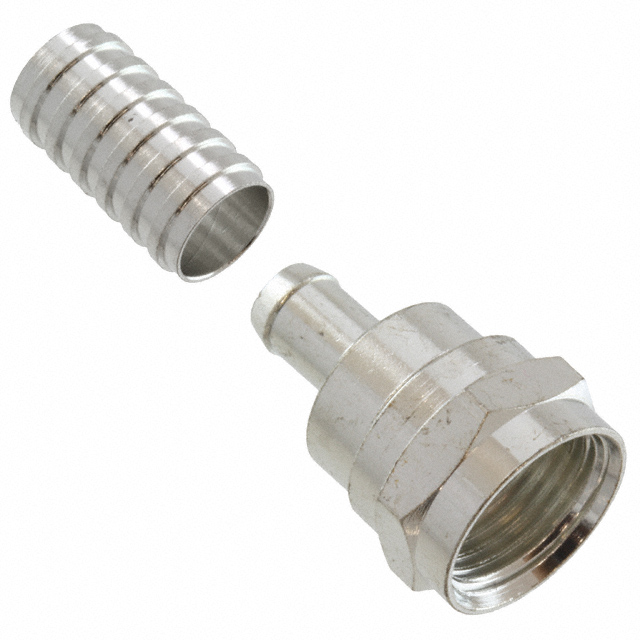

CONN F PLUG STR 75 OHM

Deep-Dive with AI

Search across all available documentation for this part.

25-7035

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN F PLUG STR 75 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.53

Description

General part information

- Series

F Type Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	25-7035	- Series

Adapter Series	-	BNC to F, F to F, N to N
Adapter Type	-	Plug to Jack, Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass, Zinc
Cable Group	RG-59TFE	RG-59TFE, 62, RG-59, RG-8, 213, 11, RG-174, 188, 316, RG-58, RG-6, AT&T 735A, Belden 8218, RG-11 Tri, Quad Shield
Cable Group	-	213
Center Contact Material	-	Brass, Bronze, Phosphor Bronze
Center Contact Plating	-	Gold, Nickel, Tin
Center Gender	-	Female to Female
Color	-	White
Connector Style	F Type	F Type, UHF, BNC, N Type, RCA
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack, Plug, Non-Gendered
Contact Termination	-	Solder Cup, Push On, Solder, Crimp
Conversion Type	-	Between Series, Same Series
Convert From (Adapter End)	-	BNC Jack, Female Socket, F Jack, N Jack
Convert To (Adapter End)	-	Male Pin, F Plug, Female Socket, F Jack, N Jack
Dielectric Material	-	Polyoxymethylene (POM) Acetal, Polymethylpentene (PMP), Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock, Threaded
Features	-	Hardware Included
Frequency - Max [Max]	750 MHz	2 - 750 MHz
Height	-	9.6 mm
Height	-	0.378 "
Housing Color	Silver	Silver
Impedance	75 Ohms	50 - 75 Ohms
Impedance	-	Non-Constant
Includes	1 Sleeve, 1 Connector	1 Sleeve, 1 Connector, 1 Contact, 1 Insert, 1 Bushing
Material	-	Polyethylene (PE)
Mating Cycles	-	500
Mounting Feature	-	Flange, Bulkhead
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Fastener
Number of Ports	1	1
Opening Size	-	5.4 mm
Opening Size	-	0.213 in
Operating Temperature	-	85 - 165 °C
Operating Temperature	-	-65 - -55 °C
Shield Termination	Crimp	Crimp, Solder, Twist On
Style	-	Straight
Type Attributes	-	Half
Voltage Rating	-	500 V

- Series

CONN F PLUG STR 75 OHM

Part	Impedance	Housing Color	Body Material	Frequency - Max [Max]	Number of Ports	Mounting Type	Includes	Body Finish	Cable Group	Shield Termination	Connector Style	Connector Type	Adapter Type	Convert From (Adapter End)	Dielectric Material	Style	Center Contact Plating	Convert To (Adapter End)	Fastening Type	Adapter Series	Conversion Type	Center Contact Material	Contact Termination	Mating Cycles	Mounting Feature	Impedance	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Cable Group	Type Attributes	Height [z]	Height [z]	Features	Color	Material	Opening Size	Opening Size
Cinch Connectivity Solutions AIM-Cambridge 25-7035	75 Ohms	Silver	Brass	750 MHz	1	Free Hanging (In-Line)	1 Connector, 1 Sleeve	Nickel	RG-59TFE	Crimp	F Type	Male Pin, Plug
Cinch Connectivity Solutions AIM-Cambridge 27-8100	75 Ohms		Brass	500 MHz		Free Hanging (In-Line)		Nickel					Plug to Jack	BNC Jack, Female Socket	Polyoxymethylene (POM) Acetal	Straight	Gold	F Plug, Male Pin	Bayonet Lock, Threaded	BNC to F	Between Series	Brass
Cinch Connectivity Solutions AIM-Cambridge 25-7350		Silver	Zinc	500 MHz	1			Nickel		Solder	UHF	Female Socket, Jack			Polyoxymethylene (POM) Acetal		Nickel					Bronze	Solder Cup	500	Flange	Non-Constant	500 V	85 °C	-55 °C
Cinch Connectivity Solutions AIM-Cambridge 25-7200L	75 Ohms		Brass	750 MHz				Nickel					Jack to Jack	F Jack, Female Socket		Straight	Tin	F Jack, Female Socket		F to F	Same Series	Phosphor Bronze			Bulkhead					Female to Female
Cinch Connectivity Solutions AIM-Cambridge CP882	50 Ohms	Silver	Brass	4 GHz	1	Free Hanging (In-Line)	1 Connector, 1 Sleeve	Nickel	62, RG-59	Crimp	BNC	Male Pin, Plug			Polymethylpentene (PMP)		Gold		Bayonet Lock			Brass	Push On	500			500 V	85 °C	-55 °C
Cinch Connectivity Solutions AIM-Cambridge CPN8/110	50 Ohms	Silver	Brass	11 GHz	1	Free Hanging (In-Line)		Nickel	RG-8	Crimp	N Type	Male Pin, Plug					Gold					Brass	Crimp, Solder	500			500 V	165 °C	-65 ░C		213
Cinch Connectivity Solutions AIM-Cambridge CPN8	50 Ohms	Silver	Brass	11 GHz	1	Free Hanging (In-Line)		Nickel	11, 213, RG-8	Crimp	N Type	Male Pin, Plug					Gold					Brass	Crimp, Solder	500			500 V	165 °C	-65 ░C
Cinch Connectivity Solutions AIM-Cambridge 25-7250						Fastener																										Half	9.6 mm	0.378 "	Hardware Included	White	Polyethylene (PE)	5.4 mm	0.213 in
