TMM-101-01-T-D-RA

Active

Samtec Inc.

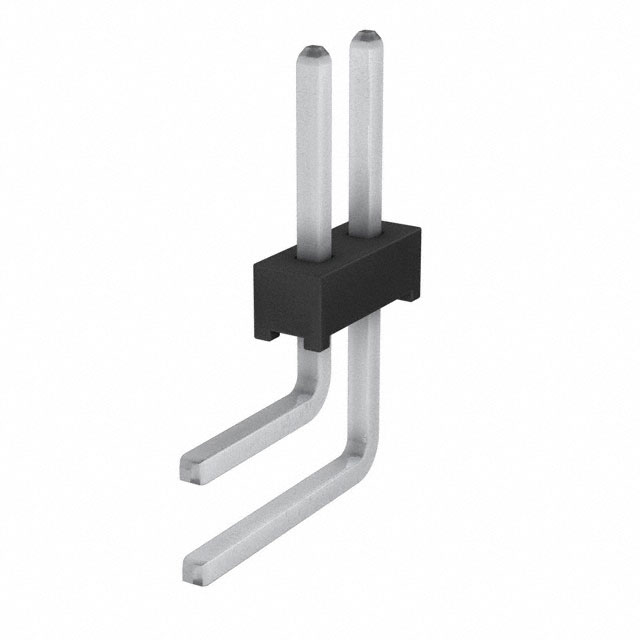

CONN HEADER R/A 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 2.00 mm Shrouded Terminal Strip +3

TMM-101-01-T-D-RA

Active

Samtec Inc.

CONN HEADER R/A 2POS

Deep-Dive with AI

DocumentsDatasheet 2.00 mm Shrouded Terminal Strip +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMM-101-01-T-D-RA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.155 in
Insulation Height	3.94 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TMM-101 Series

Part	Contact Finish - Mating	Current Rating (Amps)	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish - Post	Insulation Material	Style	Contact Shape	Number of Rows	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Contact Type	Insulation Height	Insulation Height	Contact Material	Number of Positions Loaded	Shrouding	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length
Samtec Inc. TMM-101-05-G-S	Gold	3.2 A	1	0.51 µm	20 µin	0.09 "	2.29 mm	Through Hole	Gold	Liquid Crystal Polymer (LCP)	Board to Board Cable	Square	1	Push-Pull	3 µin	0.076 µm	Solder	Header	-55 °C	125 °C	0.214 in	5.43 mm	Male Pin	1.5 mm	0.059 "	Phosphor Bronze	All	Unshrouded	0.065 in	1.65 mm	Black
Samtec Inc. TMM-101-01-G-D-RA	Gold	3.2 A	2	0.51 µm	20 µin			Through Hole Right Angle	Gold	Liquid Crystal Polymer (LCP)	Board to Board Cable	Square	2	Push-Pull	3 µin	0.076 µm	Solder	Header	-55 °C	125 °C			Male Pin	3.94 mm	0.155 in	Phosphor Bronze	All	Unshrouded	0.126 "	3.2 mm	Black	0.12 in	3.05 mm	0.079 in	2 mm
Samtec Inc. TMM-101-04-L-D	Gold	3.2 A	2	0.25 çm	10 çin	0.09 "	2.29 mm	Through Hole	Tin	Liquid Crystal Polymer (LCP)	Board to Board Cable	Square	2	Push-Pull			Solder	Header	-55 °C	125 °C	0.224 in	5.69 mm	Male Pin	1.5 mm	0.059 "	Phosphor Bronze	All	Unshrouded			Black			0.079 in	2 mm	1.9 mm	0.075 in
Samtec Inc. TMM-101-02-S-S	Gold	3.2 A	1	0.76 Ám	30 Áin	0.118 in	3 mm	Through Hole	Tin	Liquid Crystal Polymer (LCP)	Board to Board Cable	Square	1	Push-Pull			Solder	Header	-55 °C	125 °C		0.323 in	Male Pin	1.5 mm	0.059 "	Phosphor Bronze	All	Unshrouded			Black							8.2 mm
Samtec Inc. TMM-101-01-T-D-RA		3.2 A	2					Through Hole Right Angle	Tin	Liquid Crystal Polymer (LCP)	Board to Board Cable	Square	2	Push-Pull			Solder	Header	-55 °C	105 ░C			Male Pin	3.94 mm	0.155 in	Phosphor Bronze	All	Unshrouded	0.126 "	3.2 mm	Black	0.12 in	3.05 mm	0.079 in	2 mm
Samtec Inc. TMM-101-06-L-S	Gold	3.2 A	1	0.25 çm	10 çin	0.192 in	4.88 mm	Through Hole	Tin	Liquid Crystal Polymer (LCP)	Board to Board Cable	Square	1	Push-Pull			Solder	Header	-55 °C	125 °C	0.377 in	9.58 mm	Male Pin	1.5 mm	0.059 "	Phosphor Bronze	All	Unshrouded	0.126 "	3.2 mm	Black
Samtec Inc. TMM-101-01-S-D-RE	Gold	3.2 A	2	0.76 Ám	30 Áin			Through Hole Right Angle	Tin	Liquid Crystal Polymer (LCP)	Board to Board Cable	Square	2	Push-Pull			Solder	Header	-55 °C	125 °C			Male Pin	3.94 mm	0.155 in	Phosphor Bronze	All	Unshrouded	0.126 "	3.2 mm	Black	0.12 in	3.05 mm	0.079 in	2 mm
Samtec Inc. TMM-101-01-L-S-RA	Gold	3.2 A	1	0.25 çm	10 çin			Through Hole Right Angle	Tin	Liquid Crystal Polymer (LCP)	Board to Board Cable	Square	1	Push-Pull			Solder	Header	-55 °C	125 °C			Male Pin	2 mm	0.079 in	Phosphor Bronze	All	Unshrouded	0.126 "	3.2 mm	Black	0.12 in	3.05 mm
Samtec Inc. TMM-101-01-LM-D	Gold	3.2 A	2	0.25 çm	10 çin	0.138 in	3.5 mm	Through Hole	Tin	Liquid Crystal Polymer (LCP)	Board to Board Cable	Square	2	Push-Pull			Solder	Header	-55 °C	125 °C		0.323 in	Male Pin	1.5 mm	0.059 "	Phosphor Bronze	All	Unshrouded	0.126 "	3.2 mm	Black			0.079 in	2 mm			8.2 mm
Samtec Inc. TMM-101-01-S-D-RA	Gold	3.2 A	2	0.76 Ám	30 Áin			Through Hole Right Angle	Tin	Liquid Crystal Polymer (LCP)	Board to Board Cable	Square	2	Push-Pull			Solder	Header	-55 °C	125 °C			Male Pin	3.94 mm	0.155 in	Phosphor Bronze	All	Unshrouded	0.126 "	3.2 mm	Black	0.12 in	3.05 mm	0.079 in	2 mm
