Specification	THS3491DDAEVM

-3db Bandwidth	900 MHz
Amplifier Type	Current Feedback
Board Type	Fully Populated
Channels per IC (Count)	1
Channels per IC (Single)	1
Channels per IC (Type)	Single
Contents	Board
Current - Output / Channel	520 mA
Current - Supply (Main IC)	0.0174 mA
Output Type	Single-Ended
Slew Rate	8000 V/µs
Supplied Contents	Board(s)
Supply Configuration	Dual, Single
Utilized IC / Part	THS3491
Voltage - Supply (Dual) Maximum (Magnitude)	16 V
Voltage - Supply (Dual) Minimum (Magnitude)	7 V

THS3491 Series

Part	-3db Bandwidth	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Current - Output / Channel	Package Name	Package / Case	Voltage - Supply Span (Min)	Amplifier Type	Output Type	Number of Circuits	Slew Rate	Voltage - Supply Span (Max)	Current - Supply	Current - Input Bias	Board Type	Current - Supply (Main IC)	Supplied Contents	Supply Configuration	Voltage - Supply (Dual) Maximum (Magnitude)	Voltage - Supply (Dual) Minimum (Magnitude)	Utilized IC / Part	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Contents	Voltage - Input Offset	Package Width	Package Length	Gain Bandwidth Product

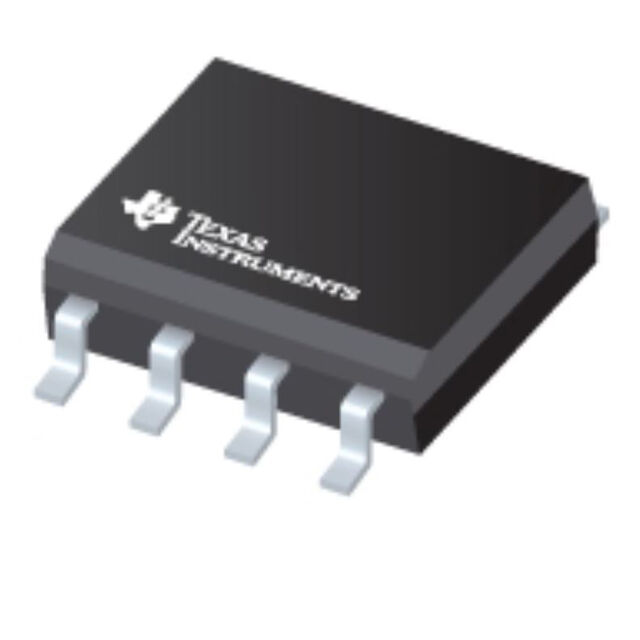

Texas Instruments THS3491YR	900 MHz	85 °C	-40 °C	Surface Mount	620 mA	Die	Die	14 V	Current Feedback	Single-Ended	1	8000 V/µs	32 V	16.8 mA	20 µA
Texas Instruments THS3491DDAEVM	900 MHz				520 mA				Current Feedback	Single-Ended		8000 V/µs				Fully Populated	0.0174 mA	Board(s)	Dual Single	16 V	7 V	THS3491	1	Single	1	Board
Texas Instruments THS3491IDDAR		85 °C	-40 °C	Surface Mount	620 mA	8-PowerSOIC 8-SO PowerPad		14 V	Current Feedback		1	8000 V/µs	32 V	16.8 mA													1 mV	3.9 mm	0.154 in	900 MHz
Texas Instruments THS3491IRGTR		85 °C	-40 °C	Surface Mount	620 mA	16-VQFN	16-VFQFN Exposed Pad	14 V	Current Feedback		1	8000 V/µs	32 V	16.8 mA													1 mV	3 mm	3 mm	900 MHz
Texas Instruments THS3491IDDAT		85 °C	-40 °C	Surface Mount	620 mA	8-PowerSOIC 8-SO PowerPad		14 V	Current Feedback		1	8000 V/µs	32 V	16.8 mA													1 mV	3.9 mm	0.154 in	900 MHz
Texas Instruments THS3491IRGTT		85 °C	-40 °C	Surface Mount	620 mA	16-VQFN	16-VFQFN Exposed Pad	14 V	Current Feedback		1	8000 V/µs	32 V	16.8 mA	4 µA												1 mV	3 mm	3 mm	900 MHz

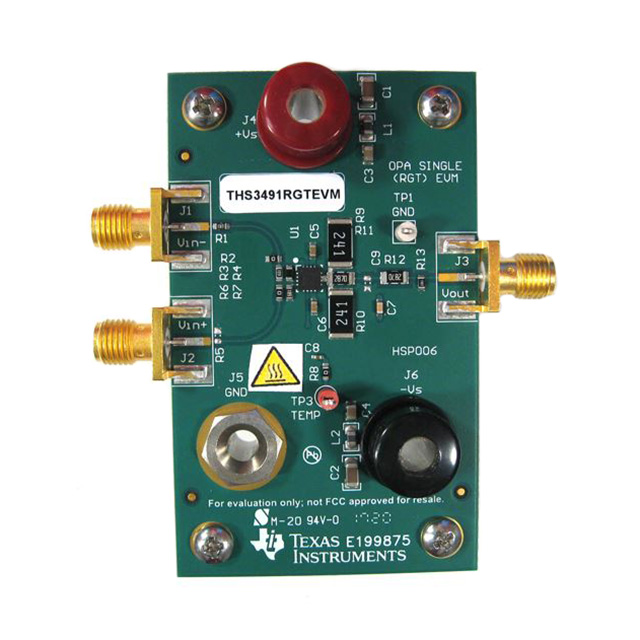

Texas Instruments THS3491RGTEVM	900 MHz				520 mA				Current Feedback	Single-Ended		8000 V/µs				Fully Populated	0.0174 mA	Board(s)	Dual Single	16 V	7 V	THS3491	1	Single	1	Board

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

THS3491DDAEVM | Datasheet
