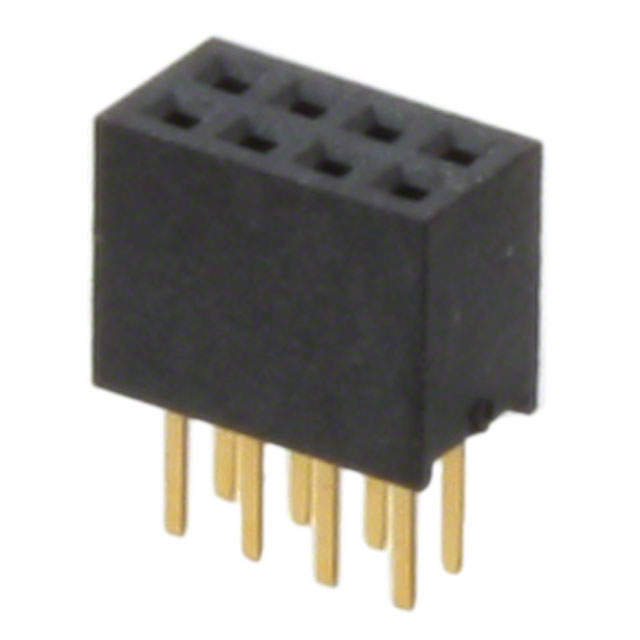

20021311-00008T4LF

Active

Amphenol ICC (FCI)

CONN RCPT 8POS 0.05 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

Documentsminitek127 productpresentation Other Related Document Datasheet +1

20021311-00008T4LF

Active

Amphenol ICC (FCI)

CONN RCPT 8POS 0.05 GOLD PCB

Deep-Dive with AI

Documentsminitek127 productpresentation Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20021311-00008T4LF

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

20021311 Series

Part	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Insulation Material	Contact Shape	Contact Material	Contact Finish - Mating	Contact Type	Contact Finish - Post	Insulation Color	Applications	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Termination	Number of Positions Loaded	Mounting Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Number of Rows	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 20021311-00026T1LF	0.094 in	2.4 mm	0.05 in	1.27 mm	UL94 V-0	Plastic	Square	Phosphor Bronze	Gold	Female Socket	Tin	Black	General Purpose Industrial Telecommunications	Push-Pull	2.54 µm	100 µin	26	Solder	All	Through Hole	0.173 in	4.4 mm	-40 °C	105 ░C	0.05 in	1.27 mm	Flash	2	Receptacle
Amphenol ICC (FCI) 20021311-000A0T4LF	0.094 in	2.4 mm	0.05 in	1.27 mm	UL94 V-0	Plastic	Square	Phosphor Bronze	Gold	Female Socket	Tin	Black	General Purpose Industrial Telecommunications	Push-Pull	2.54 µm	100 µin	100	Solder	All	Through Hole	0.173 in	4.4 mm	-40 °C	105 ░C	0.05 in	1.27 mm		2	Receptacle	10 çin	0.25 çm
Amphenol ICC (FCI) 20021311-00026T4LF	0.094 in	2.4 mm	0.05 in	1.27 mm	UL94 V-0	Plastic	Square	Phosphor Bronze	Gold	Female Socket	Tin	Black	General Purpose Industrial Telecommunications	Push-Pull	2.54 µm	100 µin	26	Solder	All	Through Hole	0.173 in	4.4 mm	-40 °C	105 ░C	0.05 in	1.27 mm		2	Receptacle	10 çin	0.25 çm
Amphenol ICC (FCI) 20021311-00014T4LF	0.094 in	2.4 mm	0.05 in	1.27 mm	UL94 V-0	Plastic	Square	Phosphor Bronze	Gold	Female Socket	Tin	Black	General Purpose Industrial Telecommunications	Push-Pull	2.54 µm	100 µin	14	Solder	All	Through Hole	0.173 in	4.4 mm	-40 °C	105 ░C	0.05 in	1.27 mm		2	Receptacle	10 çin	0.25 çm
Amphenol ICC (FCI) 20021311-00050T1LF	0.094 in	2.4 mm	0.05 in	1.27 mm	UL94 V-0	Plastic	Square	Phosphor Bronze	Gold	Female Socket	Tin	Black	General Purpose Industrial Telecommunications	Push-Pull	2.54 µm	100 µin	50	Solder	All	Through Hole	0.173 in	4.4 mm	-40 °C	105 ░C	0.05 in	1.27 mm	Flash	2	Receptacle
Amphenol ICC (FCI) 20021311-00036T1LF	0.094 in	2.4 mm	0.05 in	1.27 mm	UL94 V-0	Plastic	Square	Phosphor Bronze	Gold	Female Socket	Tin	Black	General Purpose Industrial Telecommunications	Push-Pull	2.54 µm	100 µin	36	Solder	All	Through Hole	0.173 in	4.4 mm	-55 °C -40 °C	105 ░C 125 °C	0.05 in	1.27 mm	Flash	2	Receptacle
Amphenol ICC (FCI) 20021311-00046T4LF	0.094 in	2.4 mm	0.05 in	1.27 mm	UL94 V-0	Plastic	Square	Phosphor Bronze	Gold	Female Socket	Tin	Black	General Purpose Industrial Telecommunications	Push-Pull	2.54 µm	100 µin	46	Solder	All	Through Hole	0.173 in	4.4 mm	-40 °C	105 ░C	0.05 in	1.27 mm		2	Receptacle	10 çin	0.25 çm
Amphenol ICC (FCI) 20021311-00008T4LF	0.094 in	2.4 mm	0.05 in	1.27 mm	UL94 V-0	Plastic	Square	Phosphor Bronze	Gold	Female Socket	Tin	Black	General Purpose Industrial Telecommunications	Push-Pull	2.54 µm	100 µin	8	Solder	All	Through Hole	0.173 in	4.4 mm	-40 °C	105 ░C	0.05 in	1.27 mm		2	Receptacle	10 çin	0.25 çm
Amphenol ICC (FCI) 20021311-00024T4LF	0.094 in	2.4 mm	0.05 in	1.27 mm	UL94 V-0	Plastic	Square	Phosphor Bronze	Gold	Female Socket	Tin	Black	General Purpose Industrial Telecommunications	Push-Pull	2.54 µm	100 µin	24	Solder	All	Through Hole	0.173 in	4.4 mm	-40 °C	105 ░C	0.05 in	1.27 mm		2	Receptacle	10 çin	0.25 çm
Amphenol ICC (FCI) 20021311-00068T4LF	0.094 in	2.4 mm	0.05 in	1.27 mm	UL94 V-0	Plastic	Square	Phosphor Bronze	Gold	Female Socket	Tin	Black	General Purpose Industrial Telecommunications	Push-Pull	2.54 µm	100 µin	68	Solder	All	Through Hole	0.173 in	4.4 mm	-40 °C	105 ░C	0.05 in	1.27 mm		2	Receptacle	10 çin	0.25 çm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.11
		10	$ 0.84
		100	$ 0.65
		500	$ 0.54
		1000	$ 0.50
		5000	$ 0.43
		10000	$ 0.41

Description

General part information

20021311 Series

8 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
