20021311-00026T4LF
ActiveAmphenol ICC (FCI)

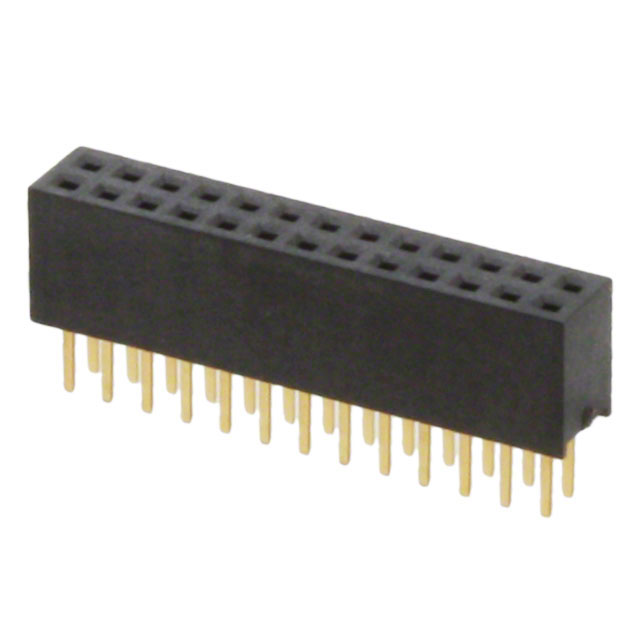

CONN RCPT 26POS 0.05 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
20021311-00026T4LF
ActiveAmphenol ICC (FCI)
CONN RCPT 26POS 0.05 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 20021311-00026T4LF |
|---|---|
| Applications | Industrial, General Purpose, Telecommunications |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Post | 0.094 in |
| Contact Length - Post | 2.4 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.173 in |
| Insulation Height | 4.4 mm |
| Insulation Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Termination | Solder |
20021311 Series
| Part | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Insulation Material | Contact Shape | Contact Material | Contact Finish - Mating | Contact Type | Contact Finish - Post | Insulation Color | Applications | Fastening Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Termination | Number of Positions Loaded | Mounting Type | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Number of Rows | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | UL94 V-0 | Plastic | Square | Phosphor Bronze | Gold | Female Socket | Tin | Black | General Purpose Industrial Telecommunications | Push-Pull | 2.54 µm | 100 µin | 26 | Solder | All | Through Hole | 0.173 in | 4.4 mm | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Flash | 2 | Receptacle | ||
Amphenol ICC (FCI) | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | UL94 V-0 | Plastic | Square | Phosphor Bronze | Gold | Female Socket | Tin | Black | General Purpose Industrial Telecommunications | Push-Pull | 2.54 µm | 100 µin | 100 | Solder | All | Through Hole | 0.173 in | 4.4 mm | -40 °C | 105 ░C | 0.05 in | 1.27 mm | 2 | Receptacle | 10 çin | 0.25 çm | |
Amphenol ICC (FCI) | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | UL94 V-0 | Plastic | Square | Phosphor Bronze | Gold | Female Socket | Tin | Black | General Purpose Industrial Telecommunications | Push-Pull | 2.54 µm | 100 µin | 26 | Solder | All | Through Hole | 0.173 in | 4.4 mm | -40 °C | 105 ░C | 0.05 in | 1.27 mm | 2 | Receptacle | 10 çin | 0.25 çm | |
Amphenol ICC (FCI) | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | UL94 V-0 | Plastic | Square | Phosphor Bronze | Gold | Female Socket | Tin | Black | General Purpose Industrial Telecommunications | Push-Pull | 2.54 µm | 100 µin | 14 | Solder | All | Through Hole | 0.173 in | 4.4 mm | -40 °C | 105 ░C | 0.05 in | 1.27 mm | 2 | Receptacle | 10 çin | 0.25 çm | |
Amphenol ICC (FCI) | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | UL94 V-0 | Plastic | Square | Phosphor Bronze | Gold | Female Socket | Tin | Black | General Purpose Industrial Telecommunications | Push-Pull | 2.54 µm | 100 µin | 50 | Solder | All | Through Hole | 0.173 in | 4.4 mm | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Flash | 2 | Receptacle | ||
Amphenol ICC (FCI) | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | UL94 V-0 | Plastic | Square | Phosphor Bronze | Gold | Female Socket | Tin | Black | General Purpose Industrial Telecommunications | Push-Pull | 2.54 µm | 100 µin | 36 | Solder | All | Through Hole | 0.173 in | 4.4 mm | -55 °C -40 °C | 105 ░C 125 °C | 0.05 in | 1.27 mm | Flash | 2 | Receptacle | ||
Amphenol ICC (FCI) | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | UL94 V-0 | Plastic | Square | Phosphor Bronze | Gold | Female Socket | Tin | Black | General Purpose Industrial Telecommunications | Push-Pull | 2.54 µm | 100 µin | 46 | Solder | All | Through Hole | 0.173 in | 4.4 mm | -40 °C | 105 ░C | 0.05 in | 1.27 mm | 2 | Receptacle | 10 çin | 0.25 çm | |
Amphenol ICC (FCI) | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | UL94 V-0 | Plastic | Square | Phosphor Bronze | Gold | Female Socket | Tin | Black | General Purpose Industrial Telecommunications | Push-Pull | 2.54 µm | 100 µin | 8 | Solder | All | Through Hole | 0.173 in | 4.4 mm | -40 °C | 105 ░C | 0.05 in | 1.27 mm | 2 | Receptacle | 10 çin | 0.25 çm | |
Amphenol ICC (FCI) | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | UL94 V-0 | Plastic | Square | Phosphor Bronze | Gold | Female Socket | Tin | Black | General Purpose Industrial Telecommunications | Push-Pull | 2.54 µm | 100 µin | 24 | Solder | All | Through Hole | 0.173 in | 4.4 mm | -40 °C | 105 ░C | 0.05 in | 1.27 mm | 2 | Receptacle | 10 çin | 0.25 çm | |
Amphenol ICC (FCI) | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | UL94 V-0 | Plastic | Square | Phosphor Bronze | Gold | Female Socket | Tin | Black | General Purpose Industrial Telecommunications | Push-Pull | 2.54 µm | 100 µin | 68 | Solder | All | Through Hole | 0.173 in | 4.4 mm | -40 °C | 105 ░C | 0.05 in | 1.27 mm | 2 | Receptacle | 10 çin | 0.25 çm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.17 | |
| 10 | $ 2.22 | |||
| 100 | $ 1.87 | |||
| 500 | $ 1.57 | |||
| 1000 | $ 1.47 | |||
| 5000 | $ 1.33 | |||
Description
General part information
20021311 Series
26 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
Documents
Technical documentation and resources
