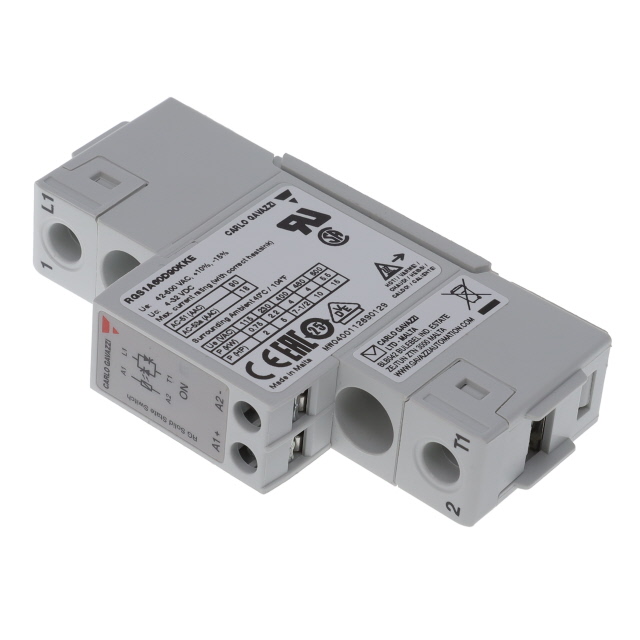

RGS1A60D90KKE

Active

CARLO GAVAZZI

SOLID STATE RELAY, 90 A, 600 VAC, DIN RAIL, PANEL, SCREW, ZERO CROSSING

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SOLID STATE RELAY, 90 A, 600 VAC, DIN RAIL, PANEL, SCREW, ZERO CROSSING

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Output Type	Approval Agency	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Load Current	Package / Case	Mounting Type
CARLO GAVAZZI RGS1A60D90KKE	Screw Terminal	AC Zero Cross	CE CSA cURus EAC GL UKCA VDE	660 V	42 V	32 V	4 V	70 °C	-25 °C	90 A	Module	DIN Rail
CARLO GAVAZZI RGS1A60D92KGE	Screw Terminal	AC Zero Cross	CE CSA cURus EAC UKCA VDE	600 V	42 V	32 V	4 V	70 °C	-25 °C	90 A	SSR with Integrated Heat Sink	Chassis Mount
CARLO GAVAZZI RGS1A60D50KKE	Screw Terminal	AC Zero Cross	CE CSA cURus EAC GL UKCA VDE	660 V	42 V	32 V	4 V	70 °C	-25 °C	50 A	Module	DIN Rail
CARLO GAVAZZI RGS1A60D75KKE	Screw Terminal	AC Zero Cross	CE CSA cURus EAC UKCA VDE	660 V	42 V	32 V	4 V	70 °C	-25 °C	75 A	Module	Chassis Mount
CARLO GAVAZZI RGS1A60D25KKE	Screw Terminal	AC Zero Cross	CE CSA cURus EAC UKCA VDE	660 V	42 V	32 V	4 V	70 °C	-25 °C	25 A	Module	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module
