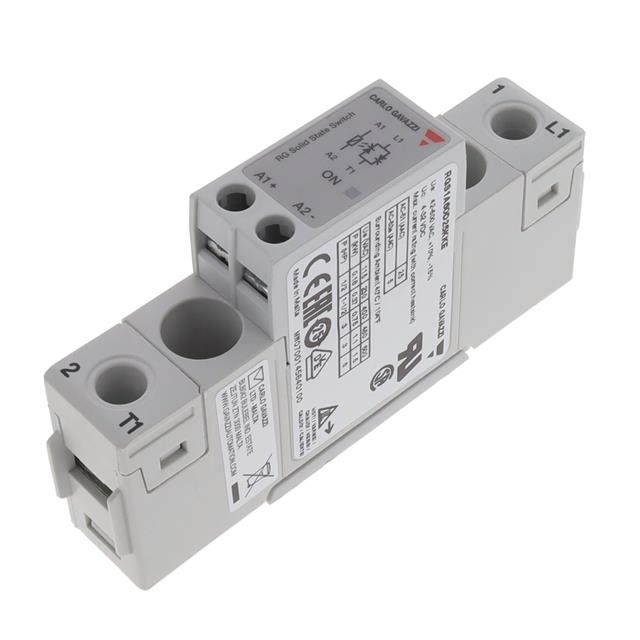

RGS1A60D25KKE

Active

CARLO GAVAZZI

SSR RELAY SPST-NO 25A 42-660V

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SSR RELAY SPST-NO 25A 42-660V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Output Type	Approval Agency	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Load Current	Package / Case	Mounting Type
CARLO GAVAZZI RGS1A60D90KKE	Screw Terminal	AC Zero Cross	CE CSA cURus EAC GL UKCA VDE	660 V	42 V	32 V	4 V	70 °C	-25 °C	90 A	Module	DIN Rail
CARLO GAVAZZI RGS1A60D92KGE	Screw Terminal	AC Zero Cross	CE CSA cURus EAC UKCA VDE	600 V	42 V	32 V	4 V	70 °C	-25 °C	90 A	SSR with Integrated Heat Sink	Chassis Mount
CARLO GAVAZZI RGS1A60D50KKE	Screw Terminal	AC Zero Cross	CE CSA cURus EAC GL UKCA VDE	660 V	42 V	32 V	4 V	70 °C	-25 °C	50 A	Module	DIN Rail
CARLO GAVAZZI RGS1A60D75KKE	Screw Terminal	AC Zero Cross	CE CSA cURus EAC UKCA VDE	660 V	42 V	32 V	4 V	70 °C	-25 °C	75 A	Module	Chassis Mount
CARLO GAVAZZI RGS1A60D25KKE	Screw Terminal	AC Zero Cross	CE CSA cURus EAC UKCA VDE	660 V	42 V	32 V	4 V	70 °C	-25 °C	25 A	Module	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module
