HPR112C

Active

Murata Power Solutions Inc.

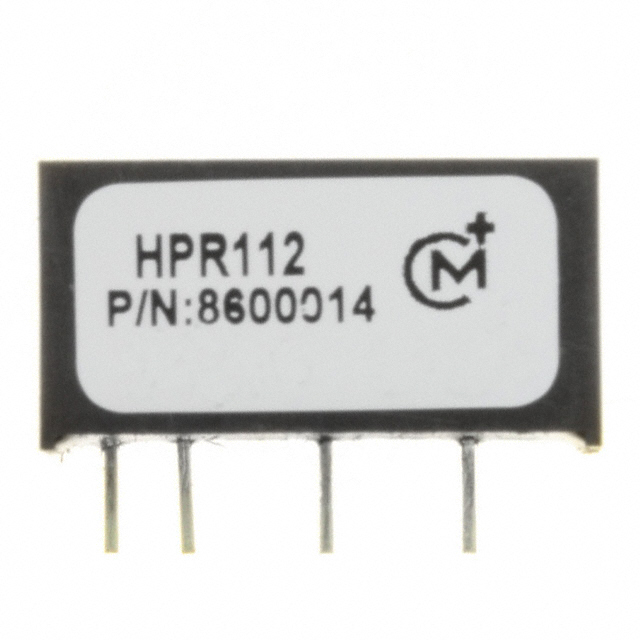

DC DC CONVERTER 5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HPR112C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HPR112C	HPR1 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	34 mA
Current - Output (Max)	-	30 mA
Current - Output (Max)	-	30 mA
Current - Output (Max)	-	25 mA
Current - Output (Max) [Max]	150 mA	25 - 200 mA
Efficiency	69 %	68 - 79 %
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Outputs	1	1 - 2
Operating Temperature [Max]	100 °C	65 - 100 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Package / Case	7-SIP Module, 5 Leads	7-SIP Module, 5 Leads, 6-SIP Module, 5 Leads, 14-SMD Module, 14-DIP Module
Package / Case	-	7.62 - 13 Leads
Size / Dimension [x]	19.6 mm	19.6 - 20.1 mm
Size / Dimension [x]	0.77 in	0.77 - 0.79 in
Size / Dimension [y]	6.1 mm	6.1 - 13.5 mm
Size / Dimension [y]	0.24 "	0.24 - 0.53 "
Size / Dimension [z]	0.4 "	0.38 - 0.4 "
Size / Dimension [z]	10.2 mm	9.7 - 10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	16.5 V	5.5 - 26.4 V
Voltage - Input (Min) [Min]	13.5 V	4.5 - 21.6 V
Voltage - Isolation	750 V	750 - 1000 V
Voltage - Output 1	5 V	5 - 15 V
Voltage - Output 2	-	-15 - -12 V

HPR1 Series

DC DC CONVERTER 5V 1W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Efficiency	Mounting Type	Voltage - Output 1	Number of Outputs	Current - Output (Max)	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Package / Case
Murata Power Solutions Inc. HPR106C	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	750 V	13.2 V	150 mA	10.8 V	ITE (Commercial)	100 °C	-40 °C	7-SIP Module, 5 Leads	Isolated Module	69 %	Through Hole	5 V	1
Murata Power Solutions Inc. HPR1023C	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	1000 V	26.4 V		21.6 V	ITE (Commercial)	65 °C	-25 °C	7-SIP Module, 5 Leads	Isolated Module	72 %	Through Hole	15 V	2	34 mA	-15 V
Murata Power Solutions Inc. HPR102C	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	750 V	5.5 V	50 mA	4.5 V	ITE (Commercial)	85 °C	-25 °C	6-SIP Module, 5 Leads	Isolated Module	71 %	Through Hole	15 V	1
Murata Power Solutions Inc. HPR1005C	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	1000 V	5.5 V		4.5 V	ITE (Commercial)	65 °C	-25 °C	7-SIP Module, 5 Leads	Isolated Module	70 %	Through Hole	15 V	2	34 mA	-15 V
Murata Power Solutions Inc. HPR107C	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	750 V	13.2 V	62 mA	10.8 V	ITE (Commercial)	100 °C	-40 °C	7-SIP Module, 5 Leads	Isolated Module	77 %	Through Hole	12 V	1
Murata Power Solutions Inc. HPR1000C	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	1000 V	5.5 V	200 mA	4.5 V	ITE (Commercial)	65 °C	-25 °C	7-SIP Module, 5 Leads	Isolated Module	68 %	Through Hole	5 V	1
Murata Power Solutions Inc. HPR100WC	20.1 mm	13.5 mm	0.38 in	0.79 in	9.7 mm	0.53 in	750 V	5.5 V	150 mA	4.5 V	ITE (Commercial)	100 °C	-40 °C	14-SMD Module	Isolated Module	69 %	Surface Mount	5 V	1
Murata Power Solutions Inc. HPR104C	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	750 V	5.5 V		4.5 V	ITE (Commercial)	100 °C	-40 °C	7-SIP Module, 5 Leads	Isolated Module	68 %	Through Hole	12 V	2		-12 V	30 mA	30 mA
Murata Power Solutions Inc. HPR117VC	20.1 mm	13.5 mm	0.38 in	0.79 in	9.7 mm	0.53 in	750 V	16.5 V	25 mA	13.5 V	ITE (Commercial)	100 °C	-40 °C	14-DIP Module	Isolated Module	79 %	Through Hole	15 V	2		-15 V			25 mA	7.62 mm, 13 Leads
Murata Power Solutions Inc. HPR112C	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	750 V	16.5 V	150 mA	13.5 V	ITE (Commercial)	100 °C	-40 °C	7-SIP Module, 5 Leads	Isolated Module	69 %	Through Hole	5 V	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HPR1 Series

Isolated Module DC DC Converter 1 Output 5V 150mA 13.5V - 16.5V Input
