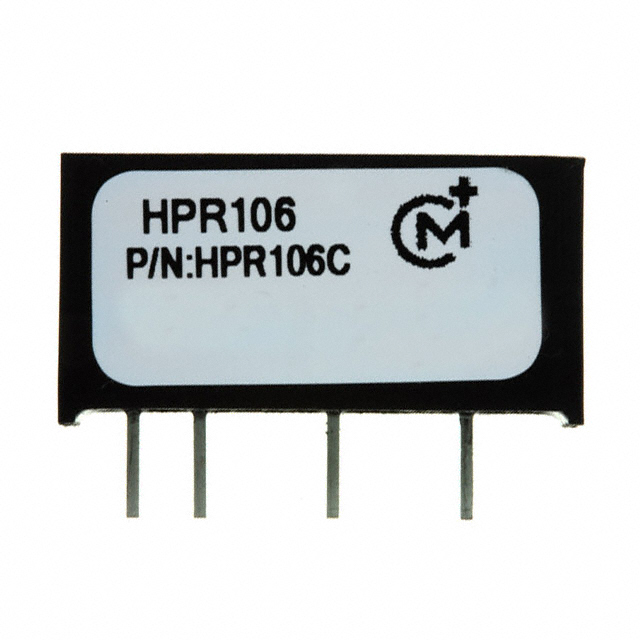

HPR106C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HPR106C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HPR106C | HPR1 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | - | 34 mA |
| Current - Output (Max) | - | 30 mA |
| Current - Output (Max) | - | 30 mA |
| Current - Output (Max) | - | 25 mA |
| Current - Output (Max) [Max] | 150 mA | 25 - 200 mA |
| Efficiency | 69 % | 68 - 79 % |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Number of Outputs | 1 | 1 - 2 |
| Operating Temperature [Max] | 100 °C | 65 - 100 °C |
| Operating Temperature [Min] | -40 °C | -40 - -25 °C |
| Package / Case | 7-SIP Module, 5 Leads | 7-SIP Module, 5 Leads, 6-SIP Module, 5 Leads, 14-SMD Module, 14-DIP Module |
| Package / Case | - | 7.62 - 13 Leads |
| Size / Dimension [x] | 19.6 mm | 19.6 - 20.1 mm |
| Size / Dimension [x] | 0.77 in | 0.77 - 0.79 in |
| Size / Dimension [y] | 6.1 mm | 6.1 - 13.5 mm |
| Size / Dimension [y] | 0.24 " | 0.24 - 0.53 " |
| Size / Dimension [z] | 0.4 " | 0.38 - 0.4 " |
| Size / Dimension [z] | 10.2 mm | 9.7 - 10.2 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V | 5.5 - 26.4 V |
| Voltage - Input (Min) [Min] | 10.8 V | 4.5 - 21.6 V |
| Voltage - Isolation | 750 V | 750 - 1000 V |
| Voltage - Output 1 | 5 V | 5 - 15 V |
| Voltage - Output 2 | - | -15 - -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
HPR1 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, HIGH POWER DENSITY, ITE, SIP, 1:1, 750 MW, 1 OUTPUT, 12 V
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Isolation | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Type | Efficiency | Mounting Type | Voltage - Output 1 | Number of Outputs | Current - Output (Max) | Voltage - Output 2 | Current - Output (Max) [Max] | Current - Output (Max) [Max] | Current - Output (Max) [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. HPR107C | |||||||||||||||||||||||||
Murata Power Solutions Inc. HPR106C | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 750 V | 13.2 V | 150 mA | 10.8 V | ITE (Commercial) | 100 °C | -40 °C | 7-SIP Module, 5 Leads | Isolated Module | 69 % | Through Hole | 5 V | 1 | ||||||
Murata Power Solutions Inc. HPR1023C | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 1000 V | 26.4 V | 21.6 V | ITE (Commercial) | 65 °C | -25 °C | 7-SIP Module, 5 Leads | Isolated Module | 72 % | Through Hole | 15 V | 2 | 34 mA | -15 V | |||||
Murata Power Solutions Inc. HPR102C | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 750 V | 5.5 V | 50 mA | 4.5 V | ITE (Commercial) | 85 °C | -25 °C | 6-SIP Module, 5 Leads | Isolated Module | 71 % | Through Hole | 15 V | 1 | ||||||
Murata Power Solutions Inc. HPR1005C | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 1000 V | 5.5 V | 4.5 V | ITE (Commercial) | 65 °C | -25 °C | 7-SIP Module, 5 Leads | Isolated Module | 70 % | Through Hole | 15 V | 2 | 34 mA | -15 V | |||||
Murata Power Solutions Inc. HPR107C | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 750 V | 13.2 V | 62 mA | 10.8 V | ITE (Commercial) | 100 °C | -40 °C | 7-SIP Module, 5 Leads | Isolated Module | 77 % | Through Hole | 12 V | 1 | ||||||
Murata Power Solutions Inc. HPR1000C | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 1000 V | 5.5 V | 200 mA | 4.5 V | ITE (Commercial) | 65 °C | -25 °C | 7-SIP Module, 5 Leads | Isolated Module | 68 % | Through Hole | 5 V | 1 | ||||||
Murata Power Solutions Inc. HPR100WC | 20.1 mm | 13.5 mm | 0.38 in | 0.79 in | 9.7 mm | 0.53 in | 750 V | 5.5 V | 150 mA | 4.5 V | ITE (Commercial) | 100 °C | -40 °C | 14-SMD Module | Isolated Module | 69 % | Surface Mount | 5 V | 1 | ||||||
Murata Power Solutions Inc. HPR104C | 19.6 mm | 6.1 mm | 0.4 " | 0.77 in | 10.2 mm | 0.24 " | 750 V | 5.5 V | 4.5 V | ITE (Commercial) | 100 °C | -40 °C | 7-SIP Module, 5 Leads | Isolated Module | 68 % | Through Hole | 12 V | 2 | -12 V | 30 mA | 30 mA | ||||
Murata Power Solutions Inc. HPR117VC | 20.1 mm | 13.5 mm | 0.38 in | 0.79 in | 9.7 mm | 0.53 in | 750 V | 16.5 V | 25 mA | 13.5 V | ITE (Commercial) | 100 °C | -40 °C | 14-DIP Module | Isolated Module | 79 % | Through Hole | 15 V | 2 | -15 V | 25 mA | 7.62 mm, 13 Leads |
Description
General part information
HPR1 Series
Isolated Module DC DC Converter 1 Output 5V 150mA 10.8V - 13.2V Input
