813-22-008-30-000101

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 8POS SMD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 8POS SMD

Technical Specifications

Parameters and characteristics for this part

...

Part	Material	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Number of Contacts	Row Spacing [x]	Row Spacing
Mill-Max Manufacturing Corp. 813-22-056-30-003101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	56	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-070-30-003101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	70	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-050-30-001101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	50	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-020-30-007101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston		0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-032-30-002101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	32	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-068-30-001101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	68	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-018-30-001101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston		0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-058-30-001101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	58	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-008-30-000101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	8	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-002-30-002101	Copper Alloy	Surface Mount	Gold			0.51 µm	20 µin	2	Piston		0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

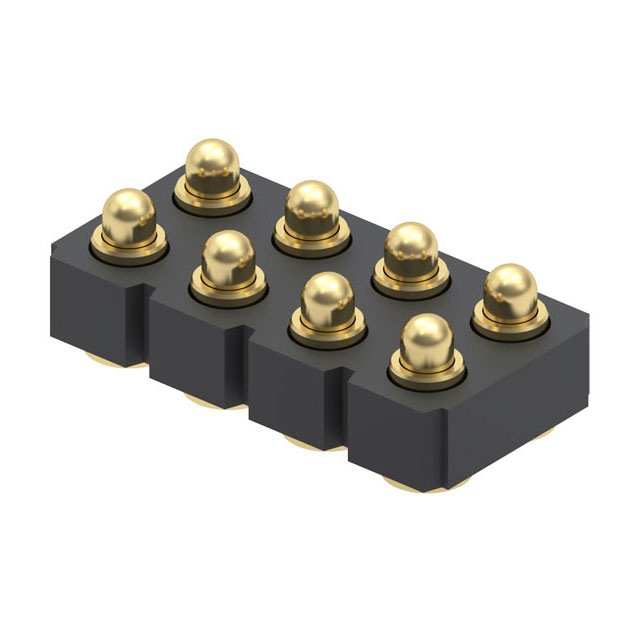

8 Position Spring Piston Connector Surface Mount

Technical documentation and resources

No documents available
