813-22-050-30-001101

Active

Mill-Max Manufacturing Corp.

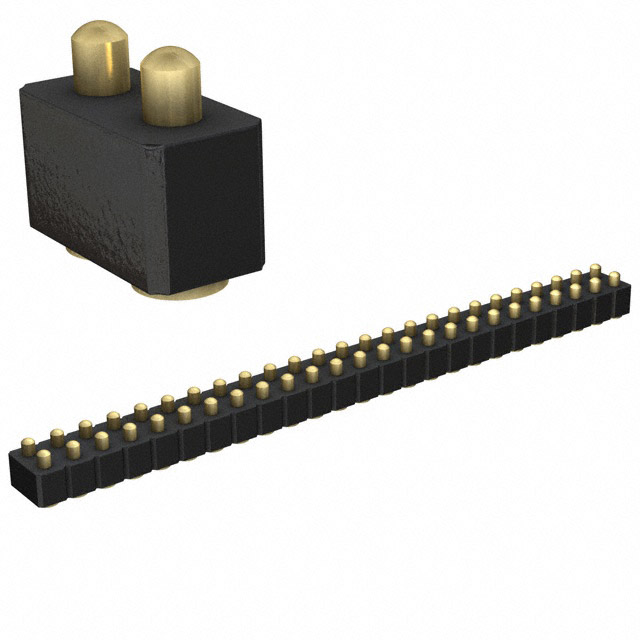

CONN SPRING PISTON 50POS SMD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 50POS SMD

Technical Specifications

Parameters and characteristics for this part

...

Part	Material	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Number of Contacts	Row Spacing [x]	Row Spacing
Mill-Max Manufacturing Corp. 813-22-056-30-003101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	56	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-070-30-003101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	70	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-050-30-001101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	50	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-020-30-007101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston		0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-032-30-002101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	32	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-068-30-001101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	68	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-018-30-001101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston		0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-058-30-001101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	58	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-008-30-000101	Copper Alloy	Surface Mount	Gold	2.54 mm	0.1 in	0.51 µm	20 µin	2	Piston	8	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 813-22-002-30-002101	Copper Alloy	Surface Mount	Gold			0.51 µm	20 µin	2	Piston		0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Spring Piston Connector Surface Mount

Technical documentation and resources

No documents available
