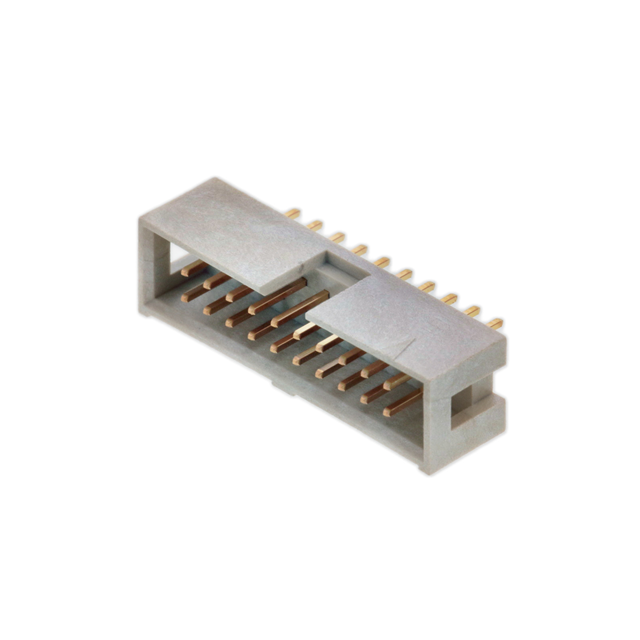

HTST-110-02-G-D

Active

Samtec Inc.

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" High-Temp Shrouded Terminal Strip, Cable Mate HTST Datasheet +1

HTST-110-02-G-D

Active

Samtec Inc.

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Documents.100" High-Temp Shrouded Terminal Strip, Cable Mate HTST Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTST-110-02-G-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post [x]	0.165 in
Contact Length - Post [x]	4.19 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Natural
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	13.46 mm
Overall Contact Length	0.53 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

HTST-110 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insulation Height [custom]	Insulation Height [custom]	Number of Positions Loaded	Number of Positions	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Insulation Material	Contact Material	Style	Number of Rows	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Fastening Type	Contact Finish - Mating	Mounting Type	Contact Shape	Termination	Features	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. HTST-110-01-L-DV-02	10 çin	0.25 çm	Header	0.35 in	8.89 mm	19	20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Surface Mount	Square	Solder	Keying Slot
Samtec Inc. HTST-110-01-F-DV-P	3 µin	0.076 µm	Header	0.35 in	8.89 mm		20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Surface Mount	Square	Solder	Keying Slot Pick and Place	All
Samtec Inc. HTST-110-01-L-DV-A-P	10 çin	0.25 çm	Header	0.35 in	8.89 mm		20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Surface Mount	Square	Solder	Board Guide Keying Slot Pick and Place	All
Samtec Inc. HTST-110-01-T-DV-04-P-TR			Header	0.35 in	8.89 mm	19	20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	105 ░C	Natural	Push-Pull		Surface Mount	Square	Solder	Keying Slot Pick and Place
Samtec Inc. HTST-110-05-SM-D-RA	30 Áin	0.76 Ám	Header				20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Through Hole Right Angle	Square	Solder	Keying Slot	All	0.23 in	5.84 mm	0.365 in	9.27 mm
Samtec Inc. HTST-110-01-T-DV			Header	0.35 in	8.89 mm		20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	105 ░C	Natural	Push-Pull		Surface Mount	Square	Solder	Keying Slot	All
Samtec Inc. HTST-110-02-G-D	10 çin	0.25 çm	Header	0.35 in	8.89 mm		20	Gold	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Through Hole	Square	Solder	Keying Slot	All					13.46 mm	0.53 in	3 µin	0.076 µm	0.165 in	4.19 mm
Samtec Inc. HTST-110-04-L-D-LA	10 çin	0.25 çm	Header				20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Through Hole Right Angle	Square	Kinked Pin Solder	Keying Slot	All	0.13 in	3.3 mm	0.365 in	9.27 mm
Samtec Inc. HTST-110-01-H-DV-11-P-TR	30 Áin	0.76 Ám	Header	0.35 in	8.89 mm	19	20	Gold	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Surface Mount	Square	Solder	Keying Slot Pick and Place								3 µin	0.076 µm
Samtec Inc. HTST-110-01-SM-DV-A	30 Áin	0.76 Ám	Header	0.35 in	8.89 mm		20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Surface Mount	Square	Solder	Board Guide Keying Slot	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.84
		10	$ 2.94
		100	$ 2.28
		500	$ 2.27

Description

General part information

HTST-110 Series

Connector Header Through Hole 20 position 0.100" (2.54mm)

Documents

Technical documentation and resources

.100" High-Temp Shrouded Terminal Strip, Cable Mate

HTST Datasheet

Datasheet
