HTST-110-01-T-DV

Active

Samtec Inc.

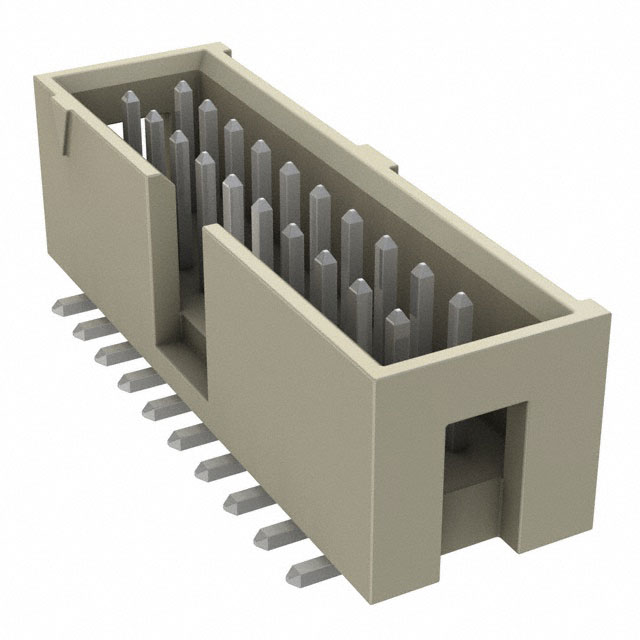

CONN HEADER SMD 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HTST Datasheet +1

HTST-110-01-T-DV

Active

Samtec Inc.

CONN HEADER SMD 20POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet HTST Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTST-110-01-T-DV

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Natural
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

HTST-110 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insulation Height [custom]	Insulation Height [custom]	Number of Positions Loaded	Number of Positions	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Insulation Material	Contact Material	Style	Number of Rows	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Fastening Type	Contact Finish - Mating	Mounting Type	Contact Shape	Termination	Features	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. HTST-110-01-L-DV-02	10 çin	0.25 çm	Header	0.35 in	8.89 mm	19	20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Surface Mount	Square	Solder	Keying Slot
Samtec Inc. HTST-110-01-F-DV-P	3 µin	0.076 µm	Header	0.35 in	8.89 mm		20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Surface Mount	Square	Solder	Keying Slot Pick and Place	All
Samtec Inc. HTST-110-01-L-DV-A-P	10 çin	0.25 çm	Header	0.35 in	8.89 mm		20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Surface Mount	Square	Solder	Board Guide Keying Slot Pick and Place	All
Samtec Inc. HTST-110-01-T-DV-04-P-TR			Header	0.35 in	8.89 mm	19	20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	105 ░C	Natural	Push-Pull		Surface Mount	Square	Solder	Keying Slot Pick and Place
Samtec Inc. HTST-110-05-SM-D-RA	30 Áin	0.76 Ám	Header				20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Through Hole Right Angle	Square	Solder	Keying Slot	All	0.23 in	5.84 mm	0.365 in	9.27 mm
Samtec Inc. HTST-110-01-T-DV			Header	0.35 in	8.89 mm		20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	105 ░C	Natural	Push-Pull		Surface Mount	Square	Solder	Keying Slot	All
Samtec Inc. HTST-110-02-G-D	10 çin	0.25 çm	Header	0.35 in	8.89 mm		20	Gold	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Through Hole	Square	Solder	Keying Slot	All					13.46 mm	0.53 in	3 µin	0.076 µm	0.165 in	4.19 mm
Samtec Inc. HTST-110-04-L-D-LA	10 çin	0.25 çm	Header				20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Through Hole Right Angle	Square	Kinked Pin Solder	Keying Slot	All	0.13 in	3.3 mm	0.365 in	9.27 mm
Samtec Inc. HTST-110-01-H-DV-11-P-TR	30 Áin	0.76 Ám	Header	0.35 in	8.89 mm	19	20	Gold	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Surface Mount	Square	Solder	Keying Slot Pick and Place								3 µin	0.076 µm
Samtec Inc. HTST-110-01-SM-DV-A	30 Áin	0.76 Ám	Header	0.35 in	8.89 mm		20	Tin	2.54 mm	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Cable/Wire	2	Shrouded - 4 Wall	6.35 mm	0.25 in	Male Pin	0.1 in	2.54 mm	-55 °C	125 °C	Natural	Push-Pull	Gold	Surface Mount	Square	Solder	Board Guide Keying Slot	All
