TXR40AB00-2016AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ21 G M31

Deep-Dive with AI

Search across all available documentation for this part.

TXR40AB00-2016AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ21 G M31

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.84

Description

General part information

TXR40AB00 Series

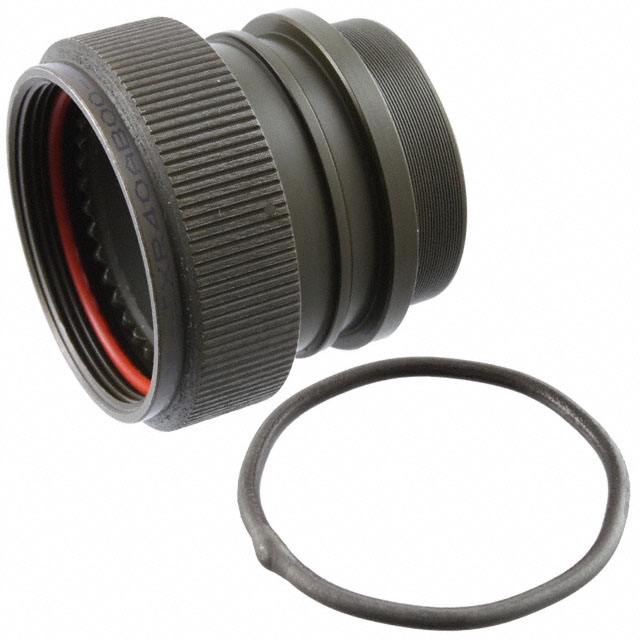

Olive Drab Connector Backshell, Heat Shrink Adapter M31x1 21, G

Documents

Technical documentation and resources

No documents available

Specification	TXR40AB00-2016AI	TXR40AB00 Series

Cable Exit	180 °	180 °
Color	Olive Drab	Olive Drab
Diameter - Outside	-	29 mm
Diameter - Outside [diameter]	1.457 "	0.709 - 1.713 in
Diameter - Outside [diameter]	37 mm	1.142 - 43.5 in
Features	Tinel Lock	Tinel Lock, Chain Attachment
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs	1 pcs
Includes	-	1 Braid, 2 O-Rings, 2 pc Backshell, 1 Tinel Ring
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Cadmium
Shell Size - Insert	21	11 - 25
Shell Size - Insert	G	D, F, H, J, G, B, 17, E, C
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Shielded	Shielded
Thread Size	M31x1	M28x1, M34x1, M37x1, M31x1, M15x1, M25x1, M12x1, M18x1
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

Part	Features	Cable Exit	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Shielding	Includes	Ingress Protection	Shell Size - Insert	Shell Size - Insert	For Use With/Related Products	Material	Color	Thread Size	Diameter - Outside [diameter]
TE Connectivity Aerospace, Defense and Marine TXR40AB00-1406AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	1.142 in	29 mm	Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	15	D	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab
TE Connectivity Aerospace, Defense and Marine TXR40AB00-1410BI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	1.142 in	29 mm	Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	15	D	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab
TE Connectivity Aerospace, Defense and Marine TXR40AB00-1810AIH	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	35.5 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	19	F	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M28x1	1.398 in
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2204AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	40 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	23	H	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M34x1	1.575 in
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2416AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	43.5 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	25	J	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M37x1	1.713 "
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2012AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	37 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	21	G	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M31x1	1.457 "
TE Connectivity Aerospace, Defense and Marine TXR40AB00-1005AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	21 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	11	B	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M15x1	0.827 in
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2414BI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	43.5 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	25	J	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M37x1	1.713 "
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2006AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	37 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	21	G	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M31x1	1.457 "
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2214AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	40 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	23	H	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M34x1	1.575 in
