SJS820210

Active

AMPHENOL PCD

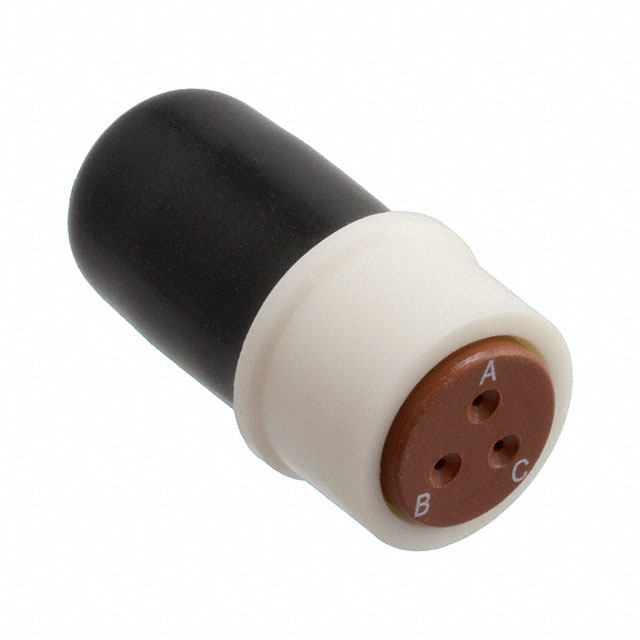

CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, CABLE MOUNT RECEPTACLE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, CABLE MOUNT RECEPTACLE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle Housing Free Hanging (In-Line)

Technical documentation and resources

Specification	SJS820210	SJS82 Series

Connector Type	Receptacle Housing	Receptacle Housing, Plug Housing, Female Sockets, Plug
Contact Finish - Mating	-	Gold
Contact Shape	Circular	Circular
Contact Size	20	20
Contact Type	Crimp	Crimp
Current Rating (Amps)	-	7.5 A
Fastening Type	Detent Lock	Detent Lock
Housing Color	White	Blue, White
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, Environment Sealed
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Operating Temperature [Max]	203 °F	125 - 203 °F
Operating Temperature [Min]	-55 °C	-65 - -55 °C
Orientation	B	C, A, B
Primary Material	-	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8	8
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Type	For Male Pins	For Male Pins, For Female Sockets

Part	Fastening Type	Shell Size - Insert	Material Flammability Rating	Type	Shielding	Contact Type	Contact Size	Ingress Protection	Mounting Type	Contact Shape	Note	Orientation	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Connector Type	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Termination
AMPHENOL PCD SJS820220	Detent Lock	8	UL94 V-0	For Male Pins	Unshielded	Crimp	20	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Circular	Contacts Not Included	C	Polyamide (PA66), Nylon 6/6	203 °F	-55 °C	Blue	Receptacle Housing
AMPHENOL PCD SJS820120	Detent Lock	8	UL94 V-0	For Female Sockets	Unshielded	Crimp	20	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Circular	Contacts Not Included	C	Polyamide (PA66), Nylon 6/6	203 °F	-55 °C	Blue	Plug Housing
AMPHENOL PCD SJS820101	Detent Lock	8						Environment Sealed	Free Hanging (In-Line)			A	Polyamide (PA66), Nylon 6/6	125 °C	-65 ░C		Female Sockets, Plug	7.5 A	Plastic	Gold	Crimp
AMPHENOL PCD SJS820210	Detent Lock	8	UL94 V-0	For Male Pins	Unshielded	Crimp	20	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Circular	Contacts Not Included	B	Polyamide (PA66), Nylon 6/6	203 °F	-55 °C	White	Receptacle Housing
