SJS820120

Active

AMPHENOL PCD

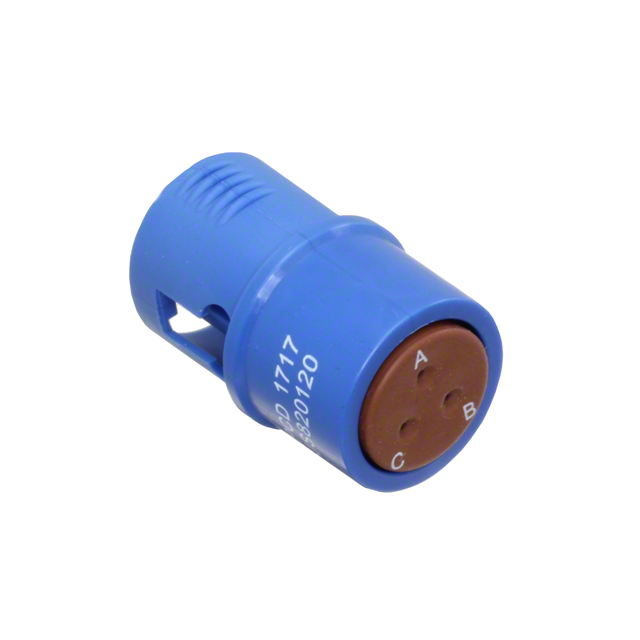

CONN PLUG HSG FMALE 3POS INLINE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN PLUG HSG FMALE 3POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SJS820120	SJS82 Series

Connector Type	Plug Housing	Receptacle Housing, Plug Housing, Female Sockets, Plug
Contact Finish - Mating	-	Gold
Contact Shape	Circular	Circular
Contact Size	20	20
Contact Type	Crimp	Crimp
Current Rating (Amps)	-	7.5 A
Fastening Type	Detent Lock	Detent Lock
Housing Color	Blue	Blue, White
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, Environment Sealed
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Operating Temperature [Max]	203 °F	125 - 203 °F
Operating Temperature [Min]	-55 °C	-65 - -55 °C
Orientation	C	C, A, B
Primary Material	-	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8	8
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Type	For Female Sockets	For Male Pins, For Female Sockets

CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, CABLE MOUNT RECEPTACLE

Part	Fastening Type	Shell Size - Insert	Material Flammability Rating	Type	Shielding	Contact Type	Contact Size	Ingress Protection	Mounting Type	Contact Shape	Note	Orientation	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Connector Type	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Termination
AMPHENOL PCD SJS820220	Detent Lock	8	UL94 V-0	For Male Pins	Unshielded	Crimp	20	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Circular	Contacts Not Included	C	Polyamide (PA66), Nylon 6/6	203 °F	-55 °C	Blue	Receptacle Housing
AMPHENOL PCD SJS820120	Detent Lock	8	UL94 V-0	For Female Sockets	Unshielded	Crimp	20	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Circular	Contacts Not Included	C	Polyamide (PA66), Nylon 6/6	203 °F	-55 °C	Blue	Plug Housing
AMPHENOL PCD SJS820101	Detent Lock	8						Environment Sealed	Free Hanging (In-Line)			A	Polyamide (PA66), Nylon 6/6	125 °C	-65 ░C		Female Sockets, Plug	7.5 A	Plastic	Gold	Crimp
AMPHENOL PCD SJS820210	Detent Lock	8	UL94 V-0	For Male Pins	Unshielded	Crimp	20	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Circular	Contacts Not Included	B	Polyamide (PA66), Nylon 6/6	203 °F	-55 °C	White	Receptacle Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug Housing Free Hanging (In-Line)
