G1238E24B1+6-FSR-WS
ActiveMechatronics Fan Group

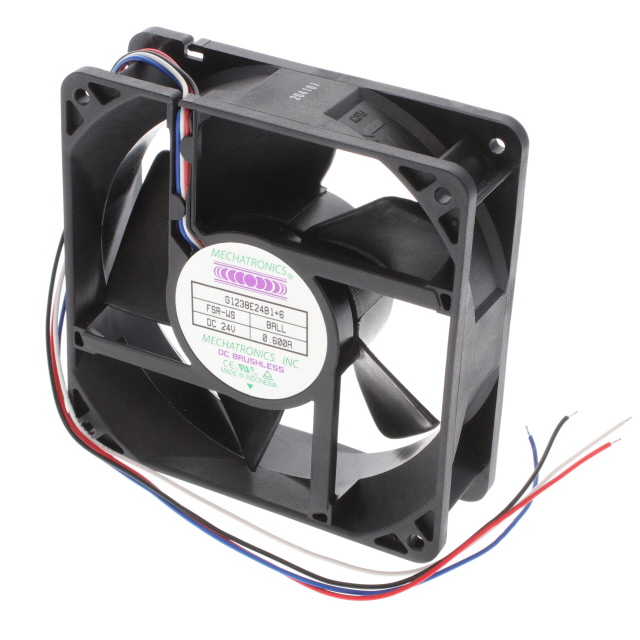

FAN AXIAL 120X38MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
G1238E24B1+6-FSR-WS
ActiveMechatronics Fan Group
FAN AXIAL 120X38MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | G1238E24B1+6-FSR-WS | G1238 Series |
|---|---|---|
| Air Flow | 158 CFM | 88 - 158 CFM |
| Air Flow | 4.42 m³/min | 2.46 - 107 m³/min |
| Air Flow | - | 158 CFM |
| Air Flow | - | 3 mł/min |
| Approval Agency | CE, cUL, TUV, UL | CE, cUL, TUV, UL |
| Bearing Type | Ball | Ball |
| Current Rating (Amps) | 600 mA | 0.18 - 750 mA |
| Fan Type | Tubeaxial | Tubeaxial |
| Features | Thermal Overload Protector (TOP), PWM Control, Speed Sensor (Tach), Alarm Sensor | Thermal Overload Protector (TOP), Alarm Sensor, Speed Sensor (Tach), Conformal Coating, Locked Rotor Sensor, PWM Control |
| Ingress Protection | - | IP57 - Dust Protected, Waterproof |
| Material - Blade | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Noise | 49 dB | 34 - 49 dB |
| RPM | 3600 RPM | 2000 - 3600 RPM |
| Size / Dimension [x] | 120 mm | 119 - 120 mm |
| Size / Dimension [y] | 120 mm | 119 - 120 mm |
| Static Pressure | 122.1 Pa | 42.3 - 122.1 Pa |
| Static Pressure | 0.49 in H2O | 0.17 - 0.49 in H2O |
| Termination | 4 Wire Leads | 2 Wire Leads, 4 Wire Leads, 3 Wire Leads, 5 Wire Leads |
| Voltage - Rated | 24 VDC | 12 - 24 VDC |
| Voltage - Rated | - | 48 VDC |
| Weight | 335.66 g | 335.66 - 340.19 g |
| Weight | 0.74 lb | 0.74 - 0.75 lb |
| Width [y] | 38 mm | 38 mm |
G1238 Series
FAN AXIAL 119X38MM 12VDC WIRE
| Part | Size / Dimension [y] | Size / Dimension [x] | Approval Agency | Width [y] | Weight | Weight | Static Pressure | Static Pressure | Material - Blade | Bearing Type | Features | Noise | Current Rating (Amps) | Fan Type | Termination | RPM | Voltage - Rated | Ingress Protection | Air Flow | Air Flow | Air Flow | Voltage - Rated [custom] | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Fan Group G1238M12B-FSR | 119 mm | 119 mm | CE, cUL, TUV, UL | 38 mm | 335.66 g | 0.74 lb | 0.32 in H2O | 79.7 Pa | Polybutylene Terephthalate (PBT) | Ball | Thermal Overload Protector (TOP) | 43 dB | 600 mA | Tubeaxial | 2 Wire Leads | 2800 RPM | 12 VDC | ||||||
Mechatronics Fan Group G1238H12B-FSR-EM | 119 mm | 119 mm | CE, cUL, TUV, UL | 38 mm | 335.66 g | 0.74 lb | 0.41 in H2O | 102.1 Pa | Polybutylene Terephthalate (PBT) | Ball | Thermal Overload Protector (TOP) | 46 dB(A) | 750 mA | Tubeaxial | 2 Wire Leads | 3200 RPM | 12 VDC | IP57 - Dust Protected, Waterproof | 3.95 m³/min | 141.2 CFM | |||
Mechatronics Fan Group G1238E12B-FSR | 119 mm | 119 mm | CE, cUL, TUV, UL | 38 mm | 335.66 g | 0.74 lb | 0.49 in H2O | 122.1 Pa | Polybutylene Terephthalate (PBT) | Ball | Thermal Overload Protector (TOP) | 49 dB | 1.2 A | Tubeaxial | 2 Wire Leads | 3600 RPM | 12 VDC | 4.42 m³/min | 158 CFM | ||||
Mechatronics Fan Group G1238H24B1-FSR-WS | 119 mm | 119 mm | CE, cUL, TUV, UL | 38 mm | 335.66 g | 0.74 lb | 0.41 in H2O | 102.1 Pa | Polybutylene Terephthalate (PBT) | Ball | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 46 dB(A) | 450 mA | Tubeaxial | 4 Wire Leads | 3200 RPM | 24 VDC | 3.95 m³/min | 141.2 CFM | ||||
Mechatronics Fan Group G1238M24B1-FSR-TTL | 120 mm | 120 mm | CE, cUL, TUV, UL | 38 mm | 335.66 g | 0.74 lb | 0.32 in H2O | 79.7 Pa | Polybutylene Terephthalate (PBT) | Ball | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 43 dB | 0.33 A | Tubeaxial | 3 Wire Leads | 2800 RPM | 24 VDC | 3.5 m³/min | 125 CFM | ||||
Mechatronics Fan Group G1238E24B-FSR-CC | 119 mm | 119 mm | CE, cUL, TUV, UL | 38 mm | 335.66 g | 0.74 lb | 0.49 in H2O | 122.1 Pa | Polybutylene Terephthalate (PBT) | Ball | Conformal Coating, Thermal Overload Protector (TOP) | 49 dB | 600 mA | Tubeaxial | 2 Wire Leads | 3600 RPM | 24 VDC | 4.42 m³/min | 158 CFM | ||||
Mechatronics Fan Group G1238H24B1-FSR-WS-EM | 119 mm | 119 mm | CE, cUL, TUV, UL | 38 mm | 335.66 g | 0.74 lb | 0.41 in H2O | 102.1 Pa | Polybutylene Terephthalate (PBT) | Ball | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 46 dB(A) | 450 mA | Tubeaxial | 4 Wire Leads | 3200 RPM | 24 VDC | IP57 - Dust Protected, Waterproof | 3.95 m³/min | 141.2 CFM | |||
Mechatronics Fan Group G1238E12B1-FSR-WS-EM | 119 mm | 119 mm | CE, cUL, TUV, UL | 38 mm | 335.66 g | 0.74 lb | 0.49 in H2O | 122.1 Pa | Polybutylene Terephthalate (PBT) | Ball | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 49 dB | 1.2 A | Tubeaxial | 4 Wire Leads | 3600 RPM | 12 VDC | IP57 - Dust Protected, Waterproof | 4.42 m³/min | 158 CFM | |||
Mechatronics Fan Group G1238E12B1-FSR-WS | 119 mm | 119 mm | CE, cUL, TUV, UL | 38 mm | 335.66 g | 0.74 lb | 0.49 in H2O | 122.1 Pa | Polybutylene Terephthalate (PBT) | Ball | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 49 dB | 1.2 A | Tubeaxial | 4 Wire Leads | 3600 RPM | 12 VDC | 4.42 m³/min | 158 CFM | ||||
Mechatronics Fan Group G1238E12B-FSR-EM-RL | 120 mm | 120 mm | CE, cUL, TUV, UL | 38 mm | 335.66 g | 0.74 lb | 0.49 in H2O | 122.1 Pa | Polybutylene Terephthalate (PBT) | Ball | Thermal Overload Protector (TOP) | 49 dB | 1.2 A | Tubeaxial | 2 Wire Leads | 3600 RPM | 12 VDC | 4.42 m³/min | 158 CFM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.26 | |
| 10 | $ 21.25 | |||
| 25 | $ 20.44 | |||
| 50 | $ 19.09 | |||
| 100 | $ 17.61 | |||
| 250 | $ 17.35 | |||
| 500 | $ 17.21 | |||
Description
General part information
G1238 Series
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 158.0 CFM (4.42m³/min) 4 Wire Leads
