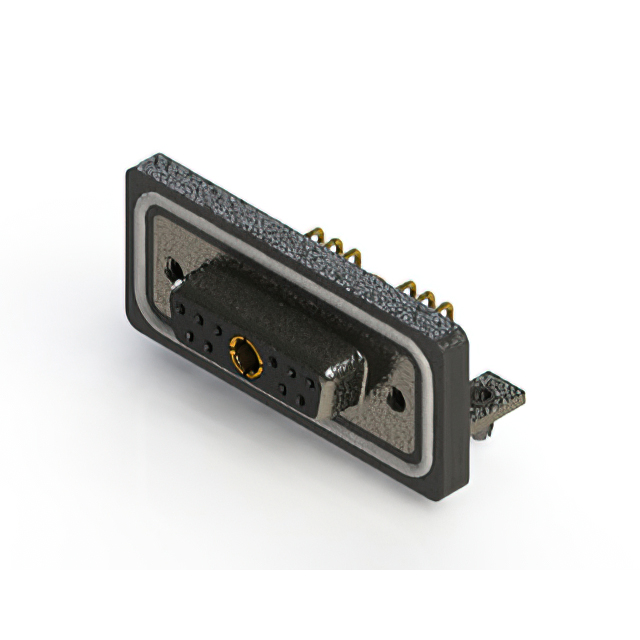

Specification	630W11W1140-4N3

Color	Black
Connector Layout	DA, A
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	40A, 5A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Shielded, Board Lock, Mounting Brackets
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions (Normal)	10
Number of Positions (Power)	1
Number of Positions (Total)	11
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	11W1, 11C1
Shell Material	Steel
Shell Size	2
Termination	Solder
Voltage Rating	125 V

630W11 Series

Part	Connector Style	Shell Size	Connector Layout	Part Code	Contact Type	Flange Feature	Current Rating Options	Mounting Type	Contact Finish	Number of Positions (Total)	Number of Positions (Normal)	Number of Positions (Power)	Material Flammability Rating	Number of Rows	Features	Connector Type	Termination	Shell Material	Finish	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Contact Material	Voltage Rating	Color
EDAC Inc. 630W11W1240-3N3	Combo D-Sub	2	A DA	11C1 11W1	Power Signal	Housing Shell (4-40)	30A 5A	Panel Mount Right Angle Through Hole	Gold	11	10	1	UL94 V-0	2	Board Lock Mounting Brackets Shielded	Female Sockets Receptacle	Solder	Steel	Nickel Plated	Dust Tight Waterproof	IP67	0	Flash	Flash	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	125 V	Black
EDAC Inc. 630W11W1240-2NC	Combo D-Sub	2	A DA	11C1 11W1	Power Signal	Housing Shell (M3)	20A 5A	Right Angle Through Hole	Gold	11	10	1	UL94 V-0	2	Mounting Brackets Shielded	Female Sockets Receptacle	Solder	Steel	Nickel Plated	Dust Tight Waterproof	IP67	0	Flash	Flash	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	125 V	Black
EDAC Inc. 630W11W1140-1N3	Combo D-Sub	2	A DA	11C1 11W1	Power Signal	Housing Shell (4-40)	10A 5A	Panel Mount Right Angle Through Hole	Gold	11	10	1	UL94 V-0	2	Board Lock Mounting Brackets Shielded	Female Sockets Receptacle	Solder	Steel	Nickel Plated	Dust Tight Waterproof	IP67	5 µin			125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	125 V	Black
EDAC Inc. 630W11W1240-3NA	Combo D-Sub	2	A DA	11C1 11W1	Power Signal	Housing Shell (M3)	30A 5A	Panel Mount Right Angle Through Hole	Gold	11	10	1	UL94 V-0	2	Shielded	Female Sockets Receptacle	Solder	Steel	Nickel Plated	Dust Tight Waterproof	IP67	0	Flash	Flash	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	125 V	Black
EDAC Inc. 630W11W1140-4N2	Combo D-Sub	2	A DA	11C1 11W1	Power Signal	Housing Shell (4-40)	40A 5A	Panel Mount Right Angle Through Hole	Gold	11	10	1	UL94 V-0	2	Shielded	Female Sockets Receptacle	Solder	Steel	Nickel Plated	Dust Tight Waterproof	IP67	5 µin			125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	125 V	Black
EDAC Inc. 630W11W1240-4N4	Combo D-Sub	2	A DA	11C1 11W1	Power Signal	Housing Shell (4-40)	40A 5A	Panel Mount Right Angle Through Hole	Gold	11	10	1	UL94 V-0	2	Mounting Brackets Shielded	Female Sockets Receptacle	Solder	Steel	Nickel Plated	Dust Tight Waterproof	IP67	0	Flash	Flash	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	125 V	Black
EDAC Inc. 630W11W1140-4N3	Combo D-Sub	2	A DA	11C1 11W1	Power Signal	Housing Shell (4-40)	40A 5A	Panel Mount Right Angle Through Hole	Gold	11	10	1	UL94 V-0	2	Board Lock Mounting Brackets Shielded	Female Sockets Receptacle	Solder	Steel	Nickel Plated	Dust Tight Waterproof	IP67	5 µin			125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	125 V	Black
EDAC Inc. 630W11W1140-2N4	Combo D-Sub	2	A DA	11C1 11W1	Power Signal	Housing Shell (4-40)	20A 5A	Panel Mount Right Angle Through Hole	Gold	11	10	1	UL94 V-0	2	Mounting Brackets Shielded	Female Sockets Receptacle	Solder	Steel	Nickel Plated	Dust Tight Waterproof	IP67	5 µin			125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	125 V	Black
EDAC Inc. 630W11W1140-1N2	Combo D-Sub	2	A DA	11C1 11W1	Power Signal	Housing Shell (4-40)	10A 5A	Panel Mount Right Angle Through Hole	Gold	11	10	1	UL94 V-0	2	Shielded	Female Sockets Receptacle	Solder	Steel	Nickel Plated	Dust Tight Waterproof	IP67	5 µin			125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	125 V	Black
EDAC Inc. 630W11W1340-1N2	Combo D-Sub	2	A DA	11C1 11W1	Power Signal	Housing Shell (4-40)	10A 5A	Panel Mount Right Angle Through Hole	Gold	11	10	1	UL94 V-0	2	Shielded	Female Sockets Receptacle	Solder	Steel	Nickel Plated	Dust Tight Waterproof	IP67	15 µin			125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	125 V	Black
