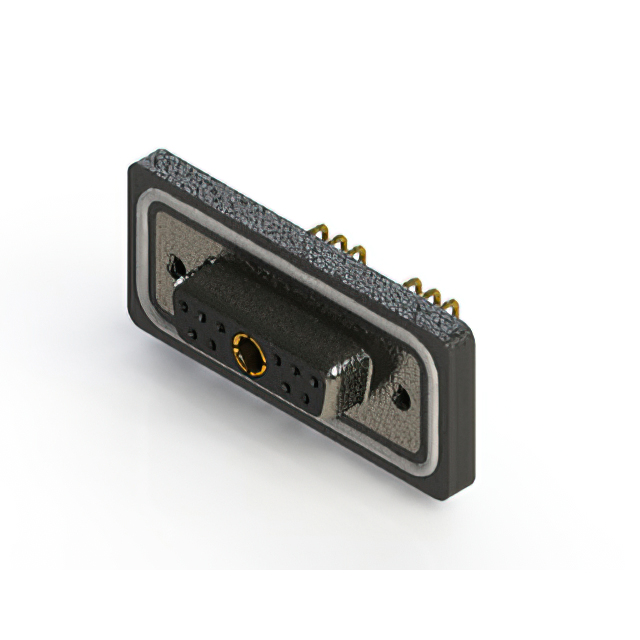

630W11W1340-1N2

Active

EDAC Inc.

CONN D-SUB RCPT 11POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630W11W1340-1N2

Active

EDAC Inc.

CONN D-SUB RCPT 11POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630W11W1340-1N2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	11
Number of Positions [custom]	10
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

630W11 Series

Part	Features	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Current Rating (Amps)	Voltage Rating	Termination	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Contact Material	Material Flammability Rating	Connector Type	Color	Connector Style	Shell Material, Finish	Flange Feature	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Contact Type	Mounting Type	Number of Rows	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 630W11W1140-1N3	Board Lock Mounting Brackets Shielded	11C1 11W1	2	10	1	11	10A 5A	125 VDC	Solder	0.127 µm	5 µin	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Black	Combo D-Sub	Nickel Plated Steel	Housing/Shell (4-40)	Gold	-55 °C	125 °C	IP67 - Dust Tight Waterproof	Signal and Power	Panel Mount Right Angle Through Hole	2
EDAC Inc. 630W11W1240-3NA	Shielded	11C1 11W1	2	10	1	11		125 VDC	Solder			Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Black	Combo D-Sub	Nickel Plated Steel	Housing/Shell (M3)	Gold	-55 °C	125 °C	IP67 - Dust Tight Waterproof	Signal and Power	Panel Mount Right Angle Through Hole	2	Flash	5 A 30 A
EDAC Inc. 630W11W1240-4N4	Mounting Brackets Shielded	11C1 11W1	2	10	1	11		125 VDC	Solder			Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Black	Combo D-Sub	Nickel Plated Steel	Housing/Shell (4-40)	Gold	-55 °C	125 °C	IP67 - Dust Tight Waterproof	Signal and Power	Panel Mount Right Angle Through Hole	2	Flash	5 A 40 A
EDAC Inc. 630W11W1140-4N3	Board Lock Mounting Brackets Shielded	11C1 11W1	2	10	1	11		125 VDC	Solder	0.127 µm	5 µin	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Black	Combo D-Sub	Nickel Plated Steel	Housing/Shell (4-40)	Gold	-55 °C	125 °C	IP67 - Dust Tight Waterproof	Signal and Power	Panel Mount Right Angle Through Hole	2		5 A 40 A
EDAC Inc. 630W11W1140-1N2	Shielded	11C1 11W1	2	10	1	11	10A 5A	125 VDC	Solder	0.127 µm	5 µin	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Black	Combo D-Sub	Nickel Plated Steel	Housing/Shell (4-40)	Gold	-55 °C	125 °C	IP67 - Dust Tight Waterproof	Signal and Power	Panel Mount Right Angle Through Hole	2
EDAC Inc. 630W11W1340-1N2	Shielded	11C1 11W1	2	10	1	11	10A 5A	125 VDC	Solder	0.38 µm	15 µin	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Black	Combo D-Sub	Nickel Plated Steel	Housing/Shell (4-40)	Gold	-55 °C	125 °C	IP67 - Dust Tight Waterproof	Signal and Power	Panel Mount Right Angle Through Hole	2
EDAC Inc. 630W11W1140-1NB	Board Lock Mounting Brackets Shielded	11C1 11W1	2	10	1	11	10A 5A	125 VDC	Solder	0.127 µm	5 µin	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Black	Combo D-Sub	Nickel Plated Steel	Housing/Shell (M3)	Gold	-55 °C	125 °C	IP67 - Dust Tight Waterproof	Signal and Power	Panel Mount Right Angle Through Hole	2
EDAC Inc. 630W11W1140-1N4	Mounting Brackets Shielded	11C1 11W1	2	10	1	11	10A 5A	125 VDC	Solder	0.127 µm	5 µin	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Black	Combo D-Sub	Nickel Plated Steel	Housing/Shell (4-40)	Gold	-55 °C	125 °C	IP67 - Dust Tight Waterproof	Signal and Power	Panel Mount Right Angle Through Hole	2
EDAC Inc. 630W11W1240-2NA	Shielded	11C1 11W1	2	10	1	11		125 VDC	Solder			Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Black	Combo D-Sub	Nickel Plated Steel	Housing/Shell (M3)	Gold	-55 °C	125 °C	IP67 - Dust Tight Waterproof	Signal and Power	Panel Mount Right Angle Through Hole	2	Flash	5 A 20 A
EDAC Inc. 630W11W1240-1NC	Mounting Brackets Shielded	11C1 11W1	2	10	1	11	10A 5A	125 VDC	Solder			Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Black	Combo D-Sub	Nickel Plated Steel	Housing/Shell (M3)	Gold	-55 °C	125 °C	IP67 - Dust Tight Waterproof	Signal and Power	Through Hole Right Angle	2	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 15.35

Description

General part information

630W11 Series

11 (10 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
